Description
Wisycom LBNA2 Overview

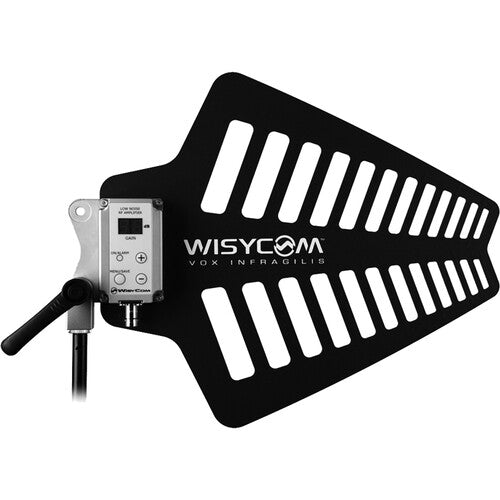

Used in professional wireless-microphone applications, the Wisycom LBNA2 is a wideband UHF Log Periodic Dipole Array (LPDA) directional active antenna with integrated low-noise booster designed to improve RF signal reception. It covers a broad frequency range, typically from 470 to 960 MHz (active) or 420 to 1300 MHz (passive), offering approximately 6 dBi of gain with a typical beamwidth of 90° and 15 dB of gain with the booster on.
The LBNA2 utilizes a BNC connector to ensure easy and reliable connectivity. It can be controlled locally using the user-friendly interface with a TFT display and navigation buttons. The antenna features a skeletal design that minimizes wind loading and a weather-resistant and waterproof coating that offers protection against the elements.
- BNC connector
- Active design with integrated low-noise booster: 15 dB gain (OIP3 40 dBm)�in 1-dB steps
- Wide reception band: 470 to 960 MHz (active), 420 to 1300 MHz (passive)
- 6 dB gain with 90° typical beamwidth
- Local configuration through TFT display and four key navigation buttons
- Requires +12V, 100mA to operate
- Skeletal design for minimal wind loading
- Sturdy metal body construction and epoxy protection on cable joints
- Waterproof with gasket sealing
- Easy installation: the antenna can be easily mounted on a standard microphone stands or clamps using its 5/8" mounting thread or the included or 3/8" adapter
Items Included
- Wisycom LBNA2 Directional Wideband Active Antenna with with Integrated Booster and BNC Connector (470 to 960 MHz)
- 3/8" Mounting Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
Wisycom LBNA2 Specs
| Antenna Type |
Paddle
|
| Beamwidth |
90° Vertical
|
| Polarization |
Vertical
|
| Input/Output |
1x Coaxial BNC
|
| Compatibility |
Not Specified by Manufacturer
|
| Operating Frequency |
470 to 960 MHz
|
| Gain |
15 dBi
|
| Number of Antennas |
1
|
| Tilt Range |
Yes
|
| Antenna Mounting |
3/8"-16
|
| Material of Construction |
Metal
|
| Color |
Black
|
| Dimensions |
H: 13.2 x W: 10.9 x D: 2.4" / H: 336 x W: 276 x D: 61 mm
|
| Weight |
1.2 lb / 535 g
|
