Description
Wisycom CSA121-B Overview

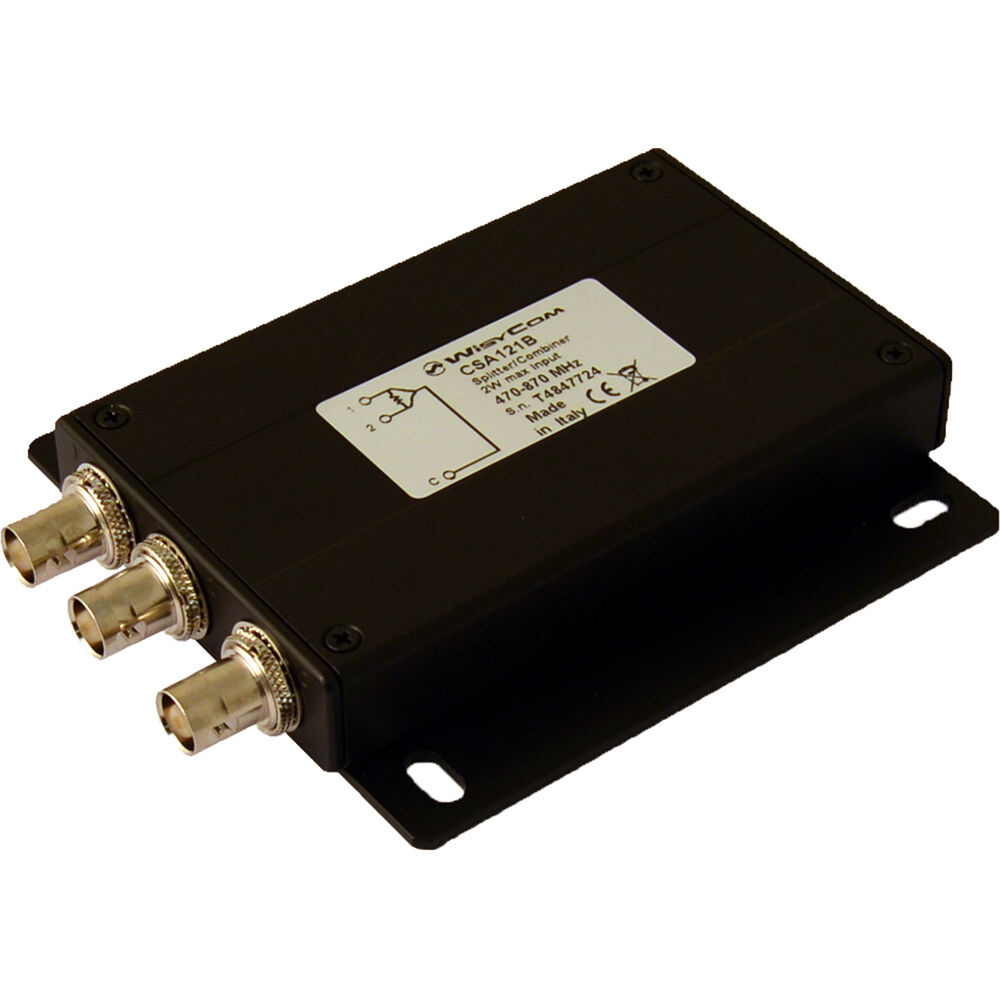

The Wisycom CSA121-B 2W Version is a compact, passive wideband combiner/splitter for receive antennas. It is designed to either split a single RF signal to two outputs or combine signals from two antennas in diversity configuration�operating in the 470 to 870 MHz range. The CSA121-B 2W Version supports a maximum input power of 2W, ensuring reliable performance in professional RF applications.
At a Glance
- Passive RF combiner: 1 x 2:1
- Passive RF splitter: 1 x 1:2
- Broadband operation: 470 to 870 MHz
- Maximum input power: 2W
- 3 BNC connectors
- DC pass-trough for use with antenna booster/ active antennas
- Splitter/combiner loss: 4 dB
- Compact and rugged aluminum chassis, stripline construction
- Four holes for wall installation (M5 screw type)
Items Included
- Wisycom CSA121-B 2W Version Passive Wideband Combiner/Splitter (470 to 870 MHz)
- Limited 1-Year Manufacturer Warranty
Additional Resources
Wisycom CSA121-B Specs
General
| Frequency Range |
470 to 870 MHz
|
| Maximum Input Power |
2 W, for Each Connector
|
| Splitter/Combiner Loss |
4 dB
|
| Connectors |
3 x BNC-F
|
| Impedance |
50 Ohms
|
Physical
| Mounting |
4x Holes
|
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
4.9 x 3.9 x 0.8" / 125 x 100 x 20 mm
|
| Weight |
7.8 oz / 220 g
|
