Description
RF Venue COMB6CP-ARC Overview

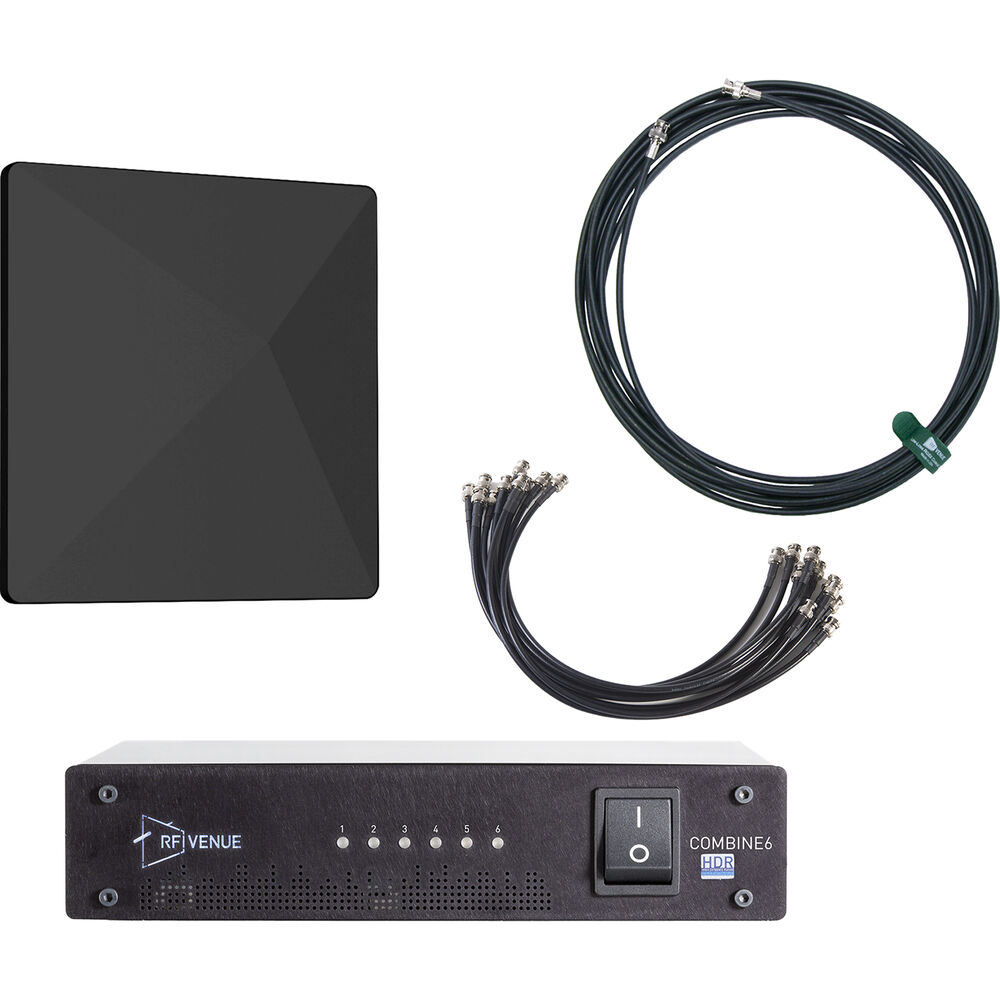

Improve the reception and reduce dropouts in your wireless in-ear monitor (IEM) system with the black Diversity Architectural Antenna & COMBINE6 HDR 6-Channel Antenna Combiner Bundle from RF Venue. This turnkey package conveniently bundles a stylish black wall- or ceiling-mountable diversity flood antenna along with a high-dynamic-range RF combiner that combines the RF signal from up to 6 transmitters and routes it to a single antenna for better wireless performance. The package also includes a black 25' coaxial low-loss antenna cable as well as a 10 pack of 1.5' low-loss coaxial cables.
Get better reception from your UHF wireless microphone system with the black RF Venue Diversity Architectural Antenna. This high-performance diversity flood antenna features a slim enclosure designed to be discreetly mounted on a wall or ceiling in your classroom, meeting space, training center, or house of worship. Based on the highly acclaimed Diversity Fin Antenna, the Architectural Antenna's unique shape helps eliminate the most common signal dropouts caused by changes in the angle and orientation of the RF signal.
The back plate comes with pre-drilled holes that provide multiple mounting options; you then simply attach the front plate using the included mounting screws. Rear-mounted BNC female connectors allow you to connect the antenna to your in-wall or in-ceiling cable run feeding your wireless receiver. The system uses a dual-feed antenna design with both A and B diversity connections provided, eliminating the need for two separate antennas and giving you improved wireless performance with less dropouts in a sleek, low-profile enclosure that complements any decor.
- Improves wireless UHF reception and reduces dropouts for clearer audio
- Wide UHF bandwidth (470 to 616 MHz)
- Two antennas in one space-saving package
- Blends into any background
- Easy, cost-effective installation
- Ceiling and wall mounting kits included
Get better wireless performance with the COMBINE6 HDR from RF Venue a high-dynamic-range antenna combiner developed for cross-brand flexibility for IEM (In-Ear Monitor) systems. The six-channel radio frequency (RF) combiner receives six incoming IEM transmitter RF signals and combines them to a single antenna output, helping to eliminate intermodulation issues caused by using multiple transmitter antennas.
The unit is housed in a half-rack chassis and features a coaxial line input and a pair of coaxial line outputs, allowing you to link a second COMBINE6 HDR (available separately) for a single rack space solution that can accommodate up to 12 IEM systems on a single antenna. Rack-mounting hardware and a 12V power supply is included.
This black, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.
This black, 1.5' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility. This package includes ten cables.
Items Included
- RF Venue Diversity Architectural Antenna for UHF Wireless Microphones (Black, 470 to 616 MHz)
- Ceiling Hardware Mounting Kit
- Wall Hardware Mounting Kit
- Limited 1-Year Manufacturer Warranty
- RF Venue COMBINE6 HDR 6-Channel Antenna Combiner for In-Ear Monitors (470 to 608 MHz)
- Power Supply
- Set of Rack Ears (Long and Short)
- Half-Rack Connecting Plate with Mounting Hardware
- Limited 1-Year Manufacturer Warranty
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 25')
- Limited 1-Year Manufacturer Warranty
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 1.5', 10-Pack)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
RF Venue COMB6CP-ARC Specs
| Antenna Type |
Panel
|
| Input/Output |
2x Coaxial BNC Female
|
| Compatibility |
Not Specified by Manufacturer
|
| Operating Frequency |
470 to 698 MHz
|
| Gain |
3 dBi
|
| Number of Antennas |
2
|
| Operating Conditions |
14 to 104°F / -10 to 40°C
|
| Color |
Black
|
| Dimensions |
H: 2.0 x W: 11.0 x D: 11.0" / H: 50.00 x W: 280.00 x D: 280.00 mm
|
| Weight |
2 lb / 0.9 kg
|
| Package Weight |
2.73 lb
|
| Box Dimensions (LxWxH) |
12.4 x 12 x 2.6"
|
RF Venue COMB6CP-ARC Specs
| Inputs |
6 x Coaxial RF Inputs from Transmitters
|
| Output |
Coaxial RF Output to Antenna
|
| Mobile App Compatible |
No
|
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
12 VDC at 3 A
|
| Power Consumption |
40 W
|
| Mounting |
1x Long Rack Ear
1x Short Rack Ear |
| Color |
Black
|
| Environmental Resistance |
No
|
| Package Weight |
6.975 lb
|
| Box Dimensions (LxWxH) |
19.4 x 12.7 x 3.5"
|
RF Venue COMB6CP-ARC Specs
| Compatibility |
Not Specified by Manufacturer
|
| Connector 1 |
1x BNC Male
|
| Connector 2 |
1x BNC Male
|
| Color |
Black
|
| Cable Length |
25' / 7.6 m
|
| Package Weight |
1.05 lb
|
| Box Dimensions (LxWxH) |
14.2 x 13 x 2.55"
|
RF Venue COMB6CP-ARC Specs
| Color |
Black
|
| Cable Length |
1.5' / 0.5 m
|
| Package Weight |
1.1 lb
|
| Box Dimensions (LxWxH) |
10.2 x 8.2 x 1.8"
|
