Description
RF Venue COMB6CP-STAGE Overview
Improve your IEM reception with the 6-Channel IEM Pack with COMBINE6 HDR and CP Stage Antenna from RF Venue. Designed for use with IEM and wireless microphone systems, the CP Stage is a portable, weather-resistant antenna, featuring circular polarization for easy placement. The 6-channel COMBINE6 HDR is an antenna combiner that receives six incoming IEM transmitter RF signals and combines them to a single, convenient front-panel antenna connection for wireless transmission, minimizing the intermodulation issues that can arise when using multiple antennas. A 25' coaxial cable is also provided to connect the antenna to the combiner.
Get better wireless performance with the COMBINE6 HDR from RF Venue a high-dynamic-range antenna combiner developed for cross-brand flexibility for IEM (In-Ear Monitor) systems. The six-channel radio frequency (RF) combiner receives six incoming IEM transmitter RF signals and combines them to a single antenna output, helping to eliminate intermodulation issues caused by using multiple transmitter antennas.
The unit is housed in a half-rack chassis and features a coaxial line input and a pair of coaxial line outputs, allowing you to link a second COMBINE6 HDR (available separately) for a single rack space solution that can accommodate up to 12 IEM systems on a single antenna. Rack-mounting hardware and a 12V power supply is included.
The CP Stage from RF Venue is a compact, weather-resistant, circularly polarized antenna specifically designed to enhance the performance of in-ear monitor (IEM) transmitters and wireless microphone systems. Building on the proven success of the CP Beam and CP Architectural antennas, the CP Stage delivers exceptional reliability and signal clarity in a lightweight, portable design�perfect for touring musicians, live performers, and outdoor installations.
Note: For IEM systems, one CP Stage antenna is sufficient. For wireless microphone systems with diversity receivers, two CP Stage antennas are required.
- Unreliable in-ear monitors can derail any performance.
- The CP Stage ensures dropout-free signal quality, providing a crystal-clear connection for IEM systems and wireless microphones.
- It�s a cost-effective upgrade from standard paddle antennas, delivering professional-grade performance without breaking the bank.
- The CP Stage is ideal for musicians, bands, and sound engineers who need reliable, high-performance signal transmission for IEMs or wireless microphones.
- Whether you're performing on stage, setting up a permanent outdoor sound system, or touring across different venues, the CP Stage ensures your audio stays clear and consistent.
- Dropout-free performance: Eliminate signal dropouts and distractions for in-ear monitor bodypacks and wireless microphones.
- Circular polarization: Unlike traditional paddle or shark fin antennas, the CP Stage ensures optimal signal transmission, regardless of positioning or movement.
- Rugged weather-resistant design: The IP-rated enclosure is durable enough to handle permanent outdoor installations and the demands of global tours.
- Portable and versatile: Lightweight and easy to mount on a microphone stand, it�s well suited for both touring flypacks and fixed setups.
This black, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.

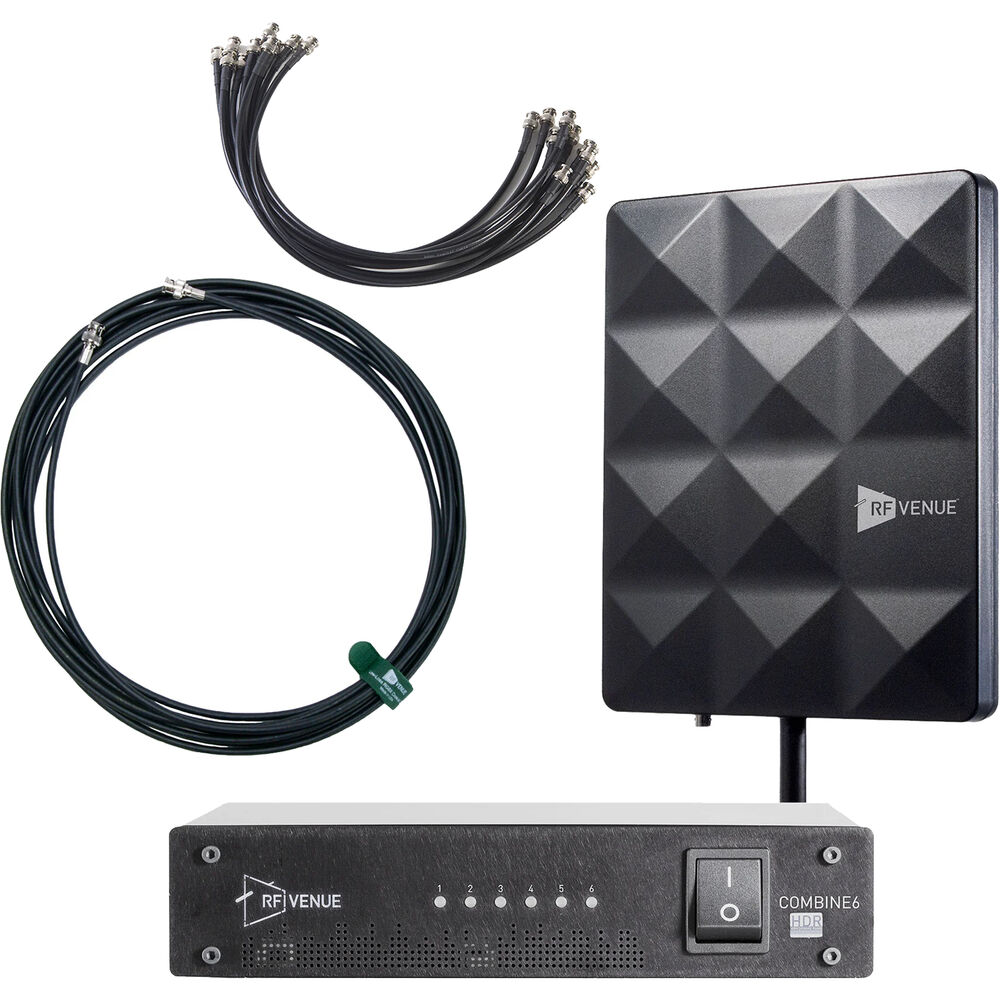

Items Included
- RF Venue COMBINE6 HDR 6-Channel Antenna Combiner for In-Ear Monitors (470 to 608 MHz)
- Power Supply
- Set of Rack Ears (Long and Short)
- Half-Rack Connecting Plate with Mounting Hardware
- Limited 1-Year Manufacturer Warranty
- RF Venue CP Stage Antenna (470 to 928 MHz)
- Limited 1-Year Manufacturer Warranty
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 25')
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
RF Venue COMBINE6 HDR 6-Channel Antenna Combiner for In-Ear Monitors (470 to 608 MHz)
| Inputs |
6 x Coaxial RF Inputs from Transmitters
|
| Output |
Coaxial RF Output to Antenna
|
| Mobile App Compatible |
No
|
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
12 VDC at 3 A
|
| Power Consumption |
40 W
|
| Mounting |
1x Long Rack Ear
1x Short Rack Ear |
| Color |
Black
|
| Environmental Resistance |
No
|
| Package Weight |
6.975 lb
|
| Box Dimensions (LxWxH) |
19.4 x 12.7 x 3.5"
|
