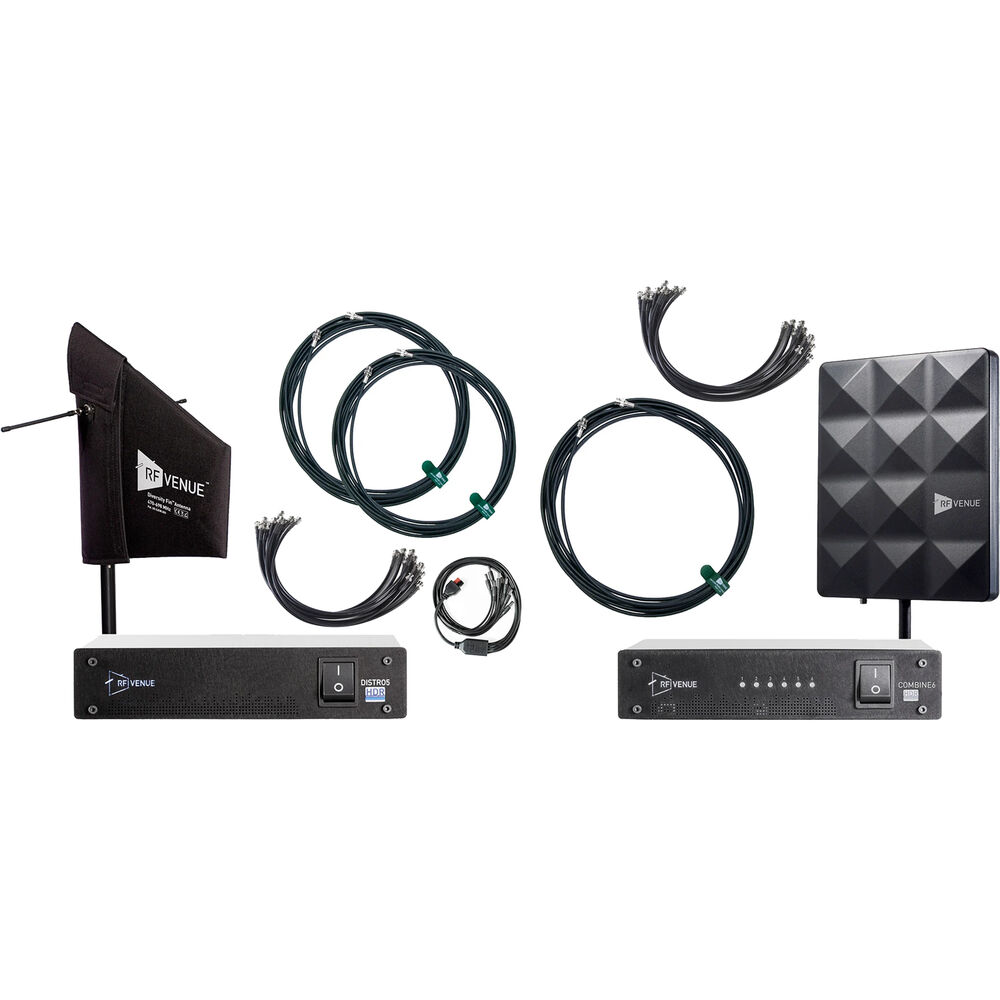

RF Venue 5 Mic and 6 IEM Super Pack

The CP Stage from RF Venue is a compact, weather-resistant, circularly polarized antenna specifically designed to enhance the performance of in-ear monitor (IEM) transmitters and wireless microphone systems. Building on the proven success of the CP Beam and CP Architectural antennas, the CP Stage delivers exceptional reliability and signal clarity in a lightweight, portable design�perfect for touring musicians, live performers, and outdoor installations.

Note: For IEM systems, one CP Stage antenna is sufficient. For wireless microphone systems with diversity receivers, two CP Stage antennas are required.

The black RF Venue Diversity Fin is a multipurpose antenna that reduces dropouts using a proprietary, cross-polarized hybrid design. It is compatible with diversity wireless microphone systems of any brand. The antenna features a mounting block with 1/4"-20, 3/8"-16, and 5/8"-27 threads to secure it on the stand of your choice.

The Diversity Fin combines one LPDA and one dipole antenna in an orthogonal (right-angle) configuration. One element captures vertically polarized waves and the other horizontally polarized waves�doing the same job as two shark-fin paddles. This design greatly improves RF and audio performance in high-profile live sound events, film and TV productions, or routine installations in schools and houses of worship.

To use, just connect both the A and B outputs (coaxial cables available separately) to any antenna distribution system or wireless receiver, and point the antenna toward the stage.

A Nylon cover protects the antenna against the elements for outdoor use.

Get better wireless performance with the COMBINE6 HDR from RF Venue a high-dynamic-range antenna combiner developed for cross-brand flexibility for IEM (In-Ear Monitor) systems. The six-channel radio frequency (RF) combiner receives six incoming IEM transmitter RF signals and combines them to a single antenna output, helping to eliminate intermodulation issues caused by using multiple transmitter antennas.

The unit is housed in a half-rack chassis and features a coaxial line input and a pair of coaxial line outputs, allowing you to link a second COMBINE6 HDR (available separately) for a single rack space solution that can accommodate up to 12 IEM systems on a single antenna. Rack-mounting hardware and a 12V power supply is included.

The DISTRO5 HDR 5-Channel UHF Antenna Distribution System from RF Venue is a high-dynamic-range active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers via coaxial cables (antennas, receivers, and cables available separately). In addition, the unit features a DC power input, allowing you to power it from a DC battery input for location work, and a DC power output, allowing you to power up to 8 receivers or compatible 12 VDC devices using a DC Octopus cable (available separately).

The all-metal, half-rack splitter includes long and short rack ears along with mounting hardware. For larger setups, you can cascade an additional DISTRO5 HDR unit (available separately) for a single 1 RU rack space of RF distribution for up to 9 receivers.

This black, 1.5' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility. This package includes ten cables.

The DC Octopus 8-Connector Power Distribution Cable from RF Venue includes the Anderson PowerPole connector and is compatible with the DISTRO9 HDR.

This black, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.
