Description
Pliant Technologies PC-ANT9-2DBO Overview

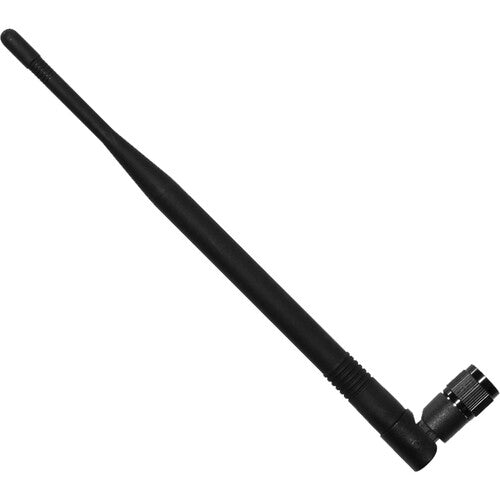

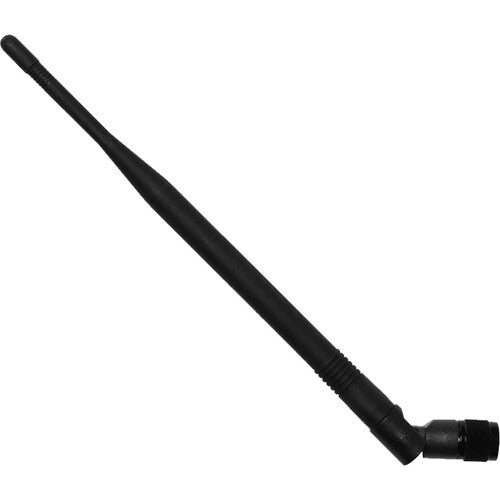

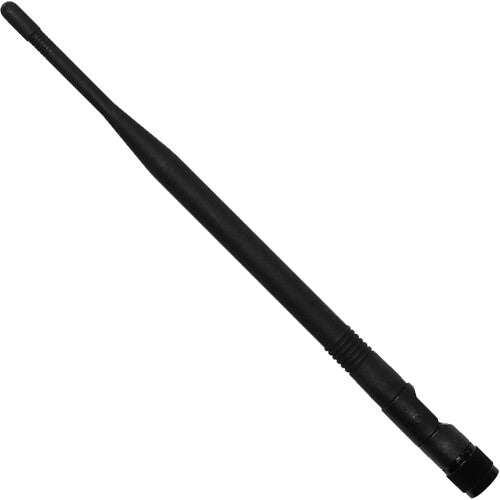

The Pliant Technologies PC-ANT9-2DBO is a replacement half-wave omnidirectional whip antenna designed for use with CrewCom and Tempest 900 MHz wireless systems. Featuring a sleek, molded profile, this semi-flexible antenna includes an RP-TNC (reverse TNC) connector, allowing it to be positioned either straight or at a right angle for optimal performance. Engineered for reliability, it is intended for use exclusively in North America, Australia, and New Zealand.
At a Glance
- Only for use in North America, Australia, and New Zealand
- Frequency: 870 to 960 MHz
- Up to 2.3 dBi gain
- Semi-flexible construction with adjustable knuckle
- Half-wave design requires no groundplane
- Sleek molded profile with Reverse-TNC connector
- Straight or 90° angle positioning
UPC: 810121940914
Items Included
- Pliant Technologies PC-ANT9-2DBO Replacement 900 MHz Omnidirectional Whip Antenna (870 to 960 MHz)
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Pliant Technologies PC-ANT9-2DBO Specs
General
| Compatibility |
Pliant Technologies CrewCom 900 MHz / Tempest 900 MHz
|
| Type |
Half-Wave, Omnidirectional
|
| Frequency Range |
870 to 960 MHz
|
| Gain |
2.3 dBi, Max
|
| VSWR Max |
2:1 Over Ban
|
| Power |
10 W, Max
|
| Connector |
Reverse-TNC
|
| Impedance |
50 Ohms
|
| Operating Temperature |
-40 to +185°F / -40 to +85°C
|
Physical
| Color |
Black
|
| Material of Construction |
Polyurethane
|
| Dimensions |
9" / 22.9 cm (Whip Length Straight)
7.9" / 20.1 cm (Whip Length 90°) 1.25" / 3.17 cm (Right Angle Standoff) |
