Description
Pliant Technologies CB2-2400 Overview
The CrewCom CB2 2-Channel Intercom BaseStation from Pliant Technologies delivers the proven performance of the CrewCom platform in a compact, cost-effective system designed for small to midsized professional productions. With crystal-clear 7 kHz audio, interference-resistant 2.4 GHz RF, and seamless integration into existing wired intercom infrastructure, the CB2 system provides powerful communication tools in a user-friendly, scalable format.
User Capacity and System Scalability
- Normal Mode: supports up to six CRP-12 (2.4 GHz) or CRP-C12 (2.4 GHz) radio packs per base station. Link two CB2 units for a total of 12 full-duplex users.
- High-Density Mode: expands user support to up to 16 radio packs per base station; two linked systems can support up to 32�36 users, depending on configuration.
- System Sync & Linking: CB2 BaseStations can be synchronized to each other or to larger CrewCom systems, enabling shared RF coverage or unified audio routing.
- The CB2 system supports CRP-12 and CRP-C12 radio packs only. It is not compatible with CRP-22 or CRP-44 packs.

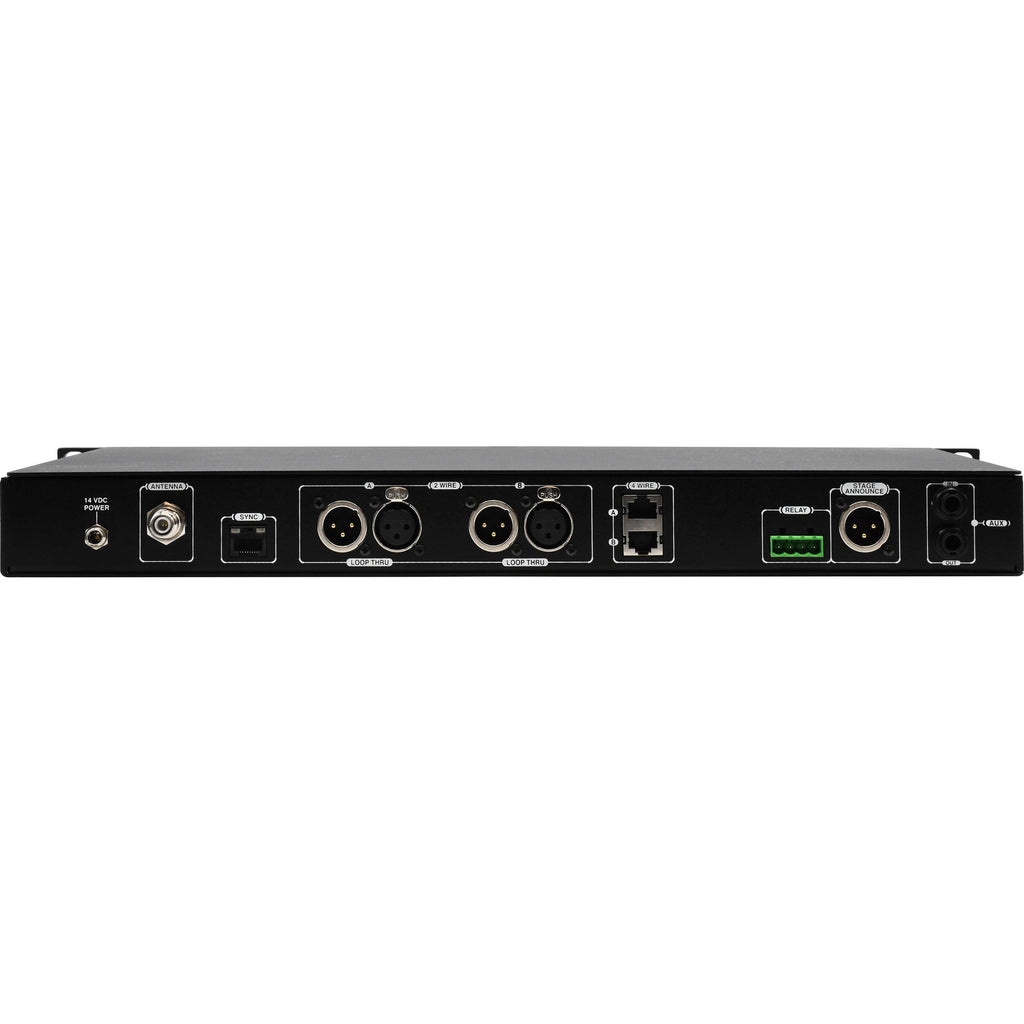

Wired Integration and I/O Options
- 2- and 4-wire intercom ports: standard interfaces allow seamless connection to Clear-Com, RTS, and other professional wired intercom systems.
- Auxiliary audio i/i: program audio can be injected via the Aux In, while Aux Out and Stage Announce outputs provide routing flexibility to external speakers, recorders, or paging systems.
- Stage Announce Relay: built-in relay supports external control of paging or cue lights.
Hardware and Usability

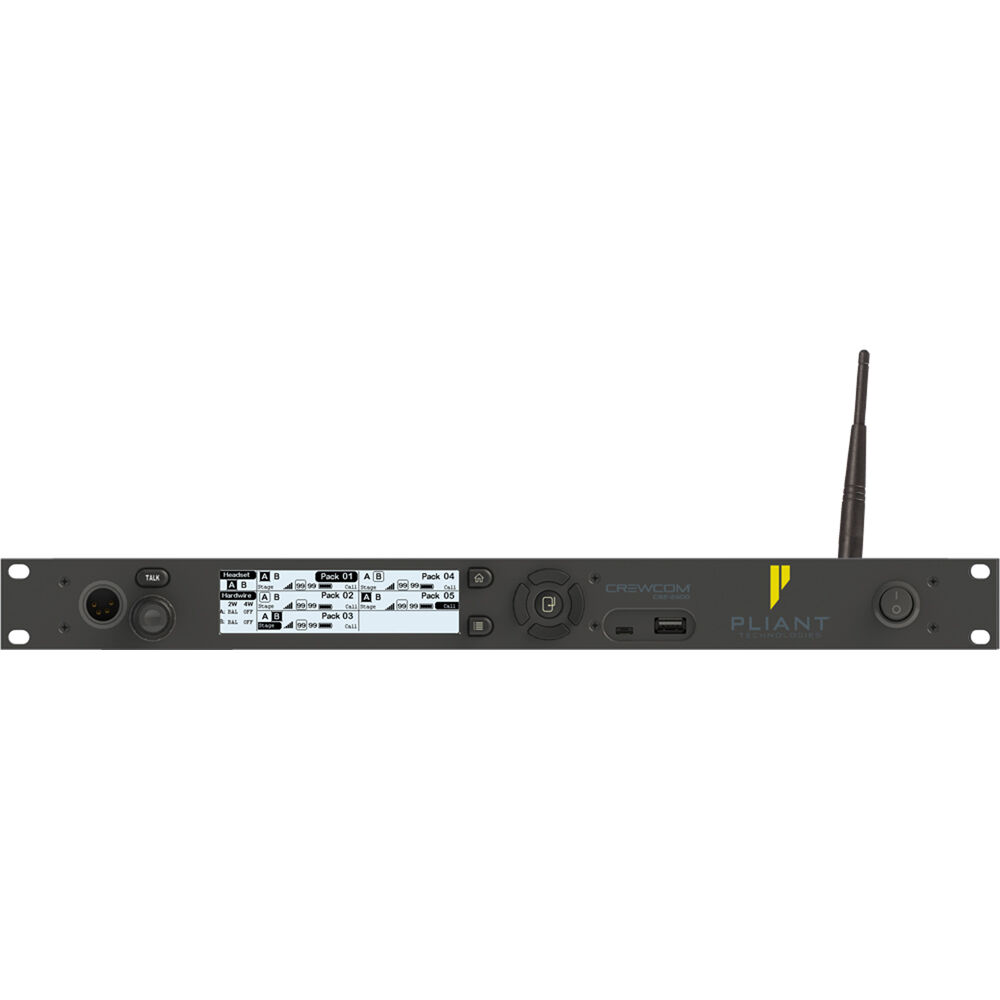

- Compact, rackmount BaseStation: 1 RU chassis with front-panel LCD, quick-access buttons, and USB ports for firmware updates and radio pack pairing.
- Front-panel monitoring: built-in headset jack and display allow direct monitoring of intercom activity and radio pack status in real time.
- Durable, lightweight radio packs: pairs with rugged, IP65-rated CRP-12 radio packs (available separately) designed for all-day comfort in demanding environments.
UPC: 810121940662
Items Included
- Pliant Technologies CrewCom CB2 2-Channel Full-Duplex Intercom BaseStation (2.4 GHz)
- 14 VDC External Power Supply
- Omnidirectional Antenna
- USB-A to Micro USB Cable
- USB Flash Drive with Documentation and Firmware Updater Application
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
Additional Resources
Pliant Technologies CB2-2400 Specs
System
| Users per System |
6
|
Wireless Connectivity
| Wireless Technology |
Digital
|
| Operating Range |
492.1' / 150 m
|
| RF Bandwidth |
83 MHz
|
| Max Transceivers per Band |
6
|
| Duplex Mode |
Full-Duplex (FDX)
|
| RF Channel Access Method |
Time-Division Multiple Access (TDMA)
|
| Approximate RF Sensitivity |
100 mV
|
| Frequency |
2400 to 2483 MHz
|
| Encryption |
No
|
| Mobile App Compatible |
No
|
Base Station
| Number of Channels |
2
|
| Inputs/Outputs |
2x XLR 3-Pin (Audio) Input
2x XLR 3-Pin (Audio) Output 1x DIN 5-Pin (Audio) Input/Output 1x RJ45 |
| Antenna |
Base Station:
1x Flexible Whip, Detachable |
| AC/DC Power Adapter |
14 VDC at 1.2 A (Included)
|
Battery
| Battery Type |
Base Station:
0 x Rechargeable Battery |
| Runtime |
Not Specified by Manufacturer
|
Physical
| Environmental Resistance |
No
|
| Certifications |
ETSI
|
| Operating Conditions |
-4 to 122°F / -20 to 50°C at 10 to 90% Humidity
|
| Dimensions |
19 x 11.7 x 1.7" / 48.3 x 29.7 x 4.4 cm
|
| Weight |
6 lb / 2.7 kg
|
