Description
Merging Technologies DA8P Overview

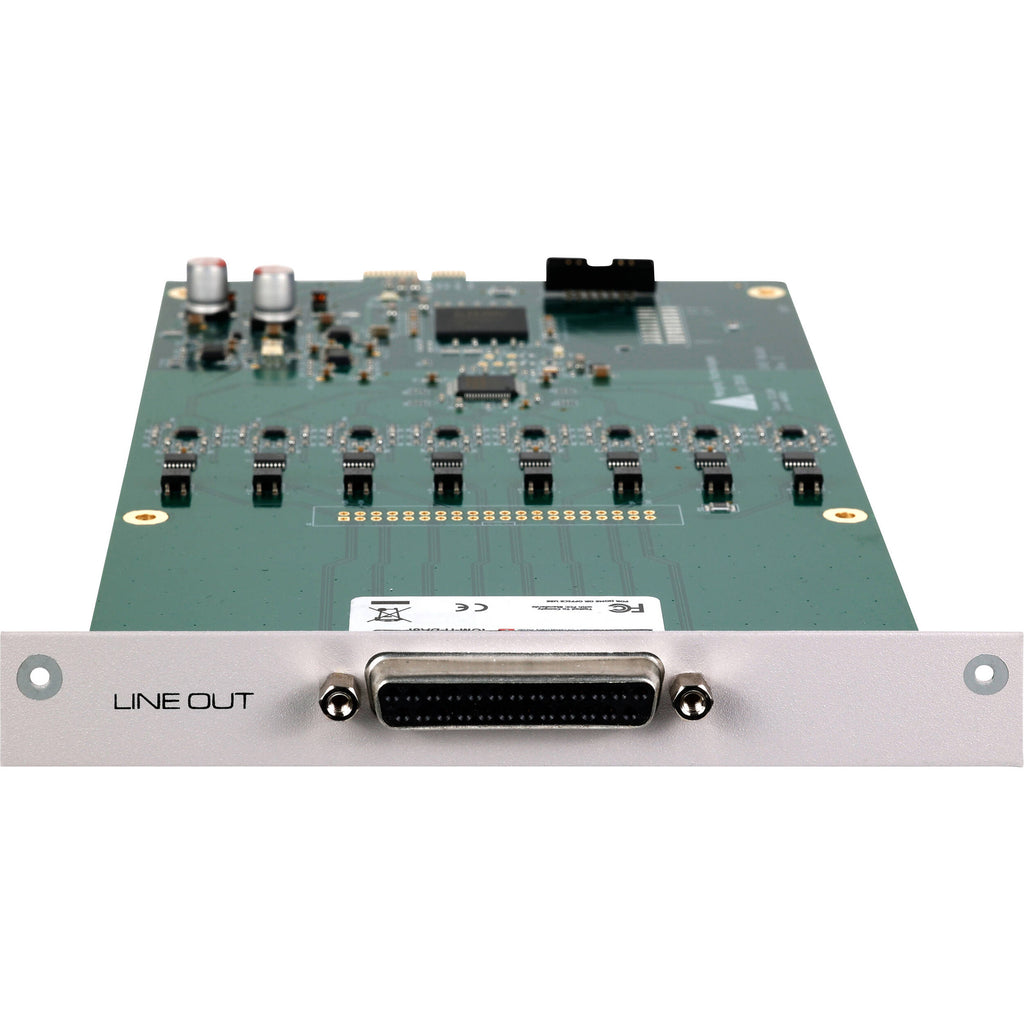

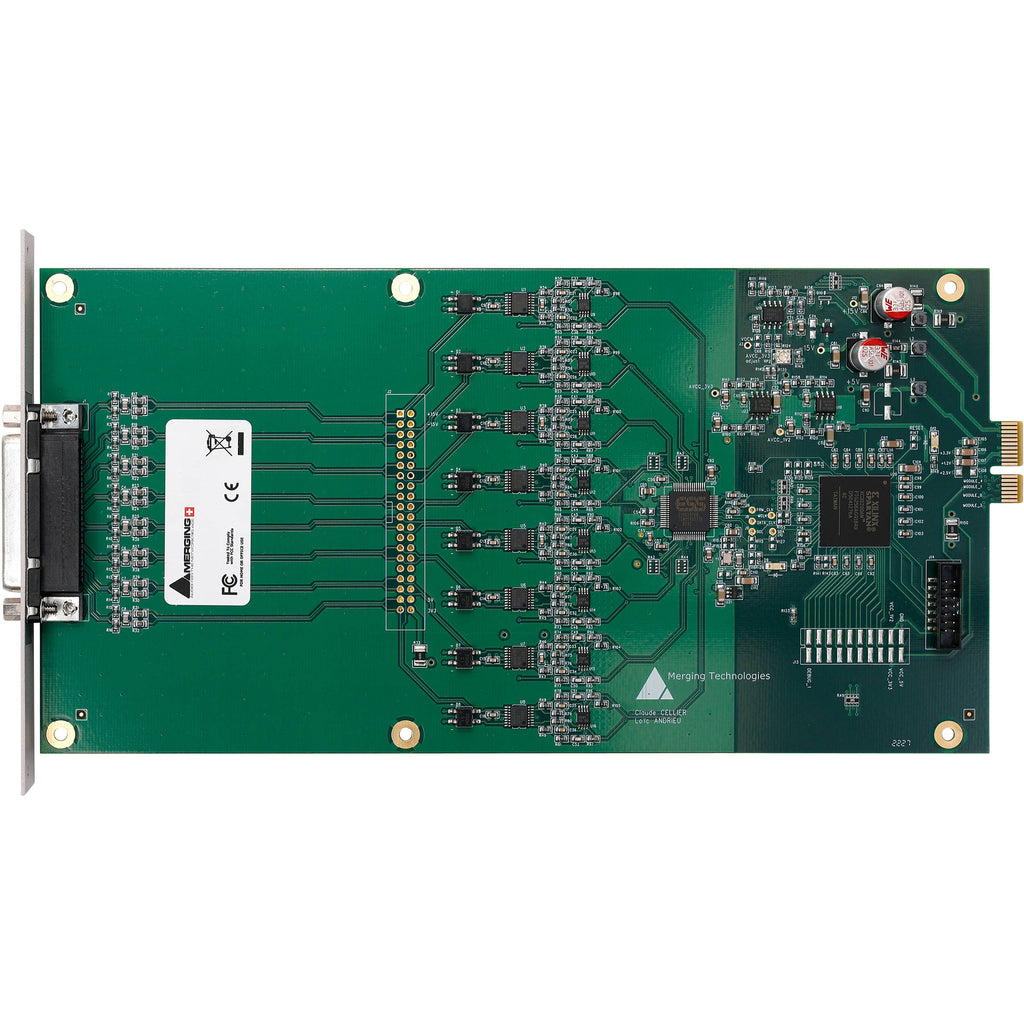

The Merging Technologies DA8P Premium D/A Output Card (DXD/DSD) allows you to customize your Horus or Hapi interface with 8 channels of analog line outputs. This second-generation DA8P card features a high-performance ESS ES9028PRO DA converter chip that delivers impressive specs with typical Dynamic Range of 127 dB A-weighted and THD+N in excess of -116 dB. The card also incorporates new refinements by adding local Low Phase Noise Oscillator circuitry to further improve the absolute transparency and stereo image of your analog signal, making it essentially void of both jitter and wander.
This DA8P Premium variant works at sampling rates up to 192 kHz as well as high-resolution DXD/384 kHz and DSD64, DSD128, and DSD256, ensuring that you play back every sound with the greatest accuracy.
- Premium variant: up to 192 kHz, DXD / 384 kHz, and DSD256 resolution
- 8-channel DA converter card
- ESS ES9028PRO DA converter chip
- 127 dB dynamic range
- -116 dB THD+N
- Output latency: 9 samples (Slow Roll Off), 35 samples (Sharp Roll Off)
- Local Low Phase Noise Oscillator circuitry
- Auto-mute circuitry for �no-pop� power cycling
- Digitally controlled output trims for line up procedures
Items Included
- Merging Technologies DA8P Premium D/A Output Card (DXD/DSD)
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Merging Technologies DA8P Specs
| Compatible Interfaces |
Merging Technologies MERGING+HORUS / MERGING+HAPI
|
| Analog Audio I/O |
1x DB-25 Balanced Line Output
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Frequency Response |
Line D/A Converters:
0 Hz to 20 kHz +0/-0.3 dB (at 48 kHz) 0 Hz to 20 kHz +0/-0.3 dB (at 2.8224 MHz (DSD)) 0 Hz to 50 kHz +0/-0.3 dB (at 2.8224 MHz (DSD)) |
| Maximum Output Level |
Line D/A Converters:
+25 dBu at 0 dBFS (Settings on +24 dBu) Line D/A Converters: +19 dBu at 0 dBFS (Settings on +18 dBu) |
| Impedance |
Line D/A Converters:
90 Ohms |
| Dynamic Range |
Line D/A Converters:
127 dB (A-Weighted, Typ.) 124.5 dB (Flat 20 Hz to 20 kHz) |
| THD+N |
Line D/A Converters:
< -116 dB / 0.00016% (1 kHz at 0 dBFS) |
| Crosstalk |
Line D/A Converters:
< -140 dB (at 1 kHz, Typ.) < -115 dB (at 20 Hz to 20 kHz) |
| Sample Rates |
192 kHz
384 kHz (DXD) |
| Sample Rate Conversion |
No
|
| Bit Depths |
24-Bit
|
| Latency |
D/A Conversion:
9 Samples 35 Samples |
| Package Weight |
0.545 lb
|
| Box Dimensions (LxWxH) |
10.8 x 6.9 x 1.4"
|
