Description
marian DIGITAL AUDIO ELECTRONICS CLARA A/D XL... Overview

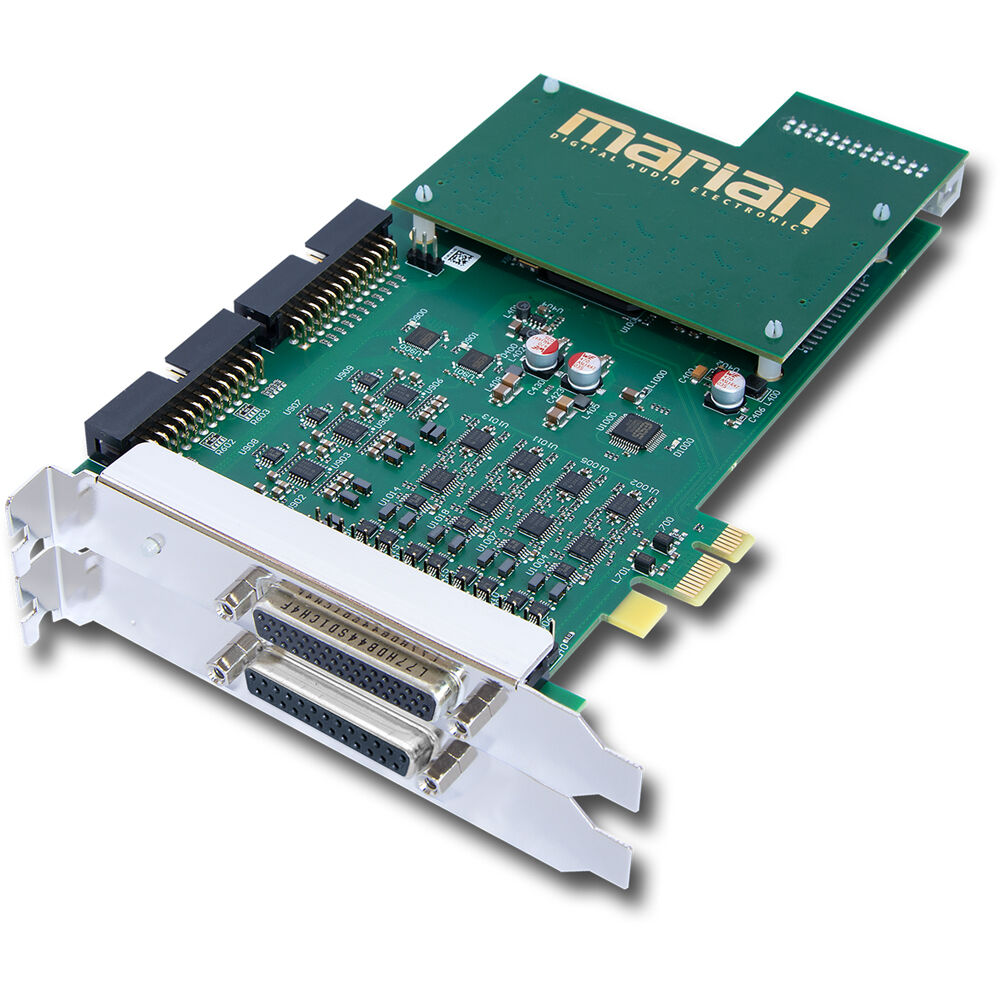

Designed for high-fidelity audio recording and playback, the marian DIGITAL AUDIO ELECTRONICS Clara A/D XLR is a professional-grade PCIe sound card that delivers pristine sound quality with 32 audio channels in a compact, two-slot PCIe width. It features eight balanced analog XLR I/O (16 channels) and four digital AES/EBU XLR I/O (16 channels), making it an ideal solution for studios and installations requiring high channel density and uncompromising audio performance.
Equipped with high-end 24-bit / 192 kHz converters, ultraprecise clock, and powerful Beast DSP mixer for latency-free mixing and EQ processing, the Clara A/D ensures top-tier sound quality and reliability. Its robust construction makes it a durable and futureproof investment for professional environments. The card comes with a 16-channel analog I/O breakout cable and a 16-channel AES/EBU breakout cable, both equipped with XLR connectors.
- With 115 dBA SNR and a THD+N of less than 0.001% at -1 dBFS, the Clara A/D delivers premium audio quality.
- A hefty level of +15 dBu provides enough headroom at the inputs and sufficient signal at the outputs for any connected device.
- AD/DA is 24-bit and 192 kHz throughout with no restrictions on the number of channels.
- Mix up to 64 signals across 8 buses.
- Route playback signals from any DAW.
- Record mix sums back into an application.
- Use the per-channel 4-band parametric EQ for precise tonal shaping.
- With less than 1 ns jitter, the Clara A/D�s internal clock provides superior synchronization, often outperforming external studio clocks. This ensures ultralow jitter performance, making external clocking unnecessary in many setups.
- For seamless digital integration, software-switchable sample-rate converters (SRCs) allow any digital input signal to be used, regardless of sample rate or clock settings, ensuring effortless compatibility with any connected digital device.
- Multiple Clara sound cards installed in a single system can be synchronized via TDM SyncBus, appearing as a single unified ASIO device.
- This enables direct intercard audio signal exchange within the Beast Mixer, supporting up to 32 interconnected audio streams.
- ASIO 2.2 and multichannel low-latency WDM audio / WASAPI.
- Simultaneous access by multiple applications.
Items Included
- marian DIGITAL AUDIO ELECTRONICS Clara A/D 32-Channel Analog and AES/EBU PCIe Sound Card (XLR I/O)
- Analog I/O Breakout Cable (XLR)
- AES/EBU I/O Breakout Cable (XLR)
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
marian DIGITAL AUDIO ELECTRONICS CLARA A/D XL... Specs
| Channels of I/O |
16 Inputs / 16 Outputs
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
8x XLR 3-Pin Line Input (on Included Breakout Cable)
8x XLR 3-Pin Line Output (on Included Breakout Cable) |
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| Power Requirements |
PCIe
|
| Display |
No
|
| Channels of I/O |
16 Inputs / 16 Outputs
|
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
| Pad |
No
|
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
| Analog Audio I/O |
8x XLR 3-Pin Line Input (on Included Breakout Cable)
8x XLR 3-Pin Line Output (on Included Breakout Cable) |
| Phantom Power |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| Host Connection Protocol |
PCIe
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Wireless |
No
|
| Frequency Response |
Analog Inputs:
5 Hz to 96 kHz Analog Outputs: 20 Hz to 74 kHz |
| Maximum Input Level |
+15 dBu
|
| Impedance |
Analog Inputs:
15 Kilohms Analog Outputs: 75 Ohms |
| Dynamic Range |
115 dB
|
| THD+N |
0.001% (At -1 dBfs)
|
| Sample Rates |
Up to 192 kHz
|
| Sample Rate Conversion |
On Digital Inputs (1:16, 16:1)
|
| Bit Depths |
24-Bit
|
| Sync Sources |
Internal, Word Clock
|
| Media/Memory Card Slot |
No
|
| OS Compatibility |
Windows 10 to 11
|
| Mobile Device Compatibility |
No
|
| Required Hardware |
PCIe Card Slot
|
| Power Requirements |
PCIe
|
