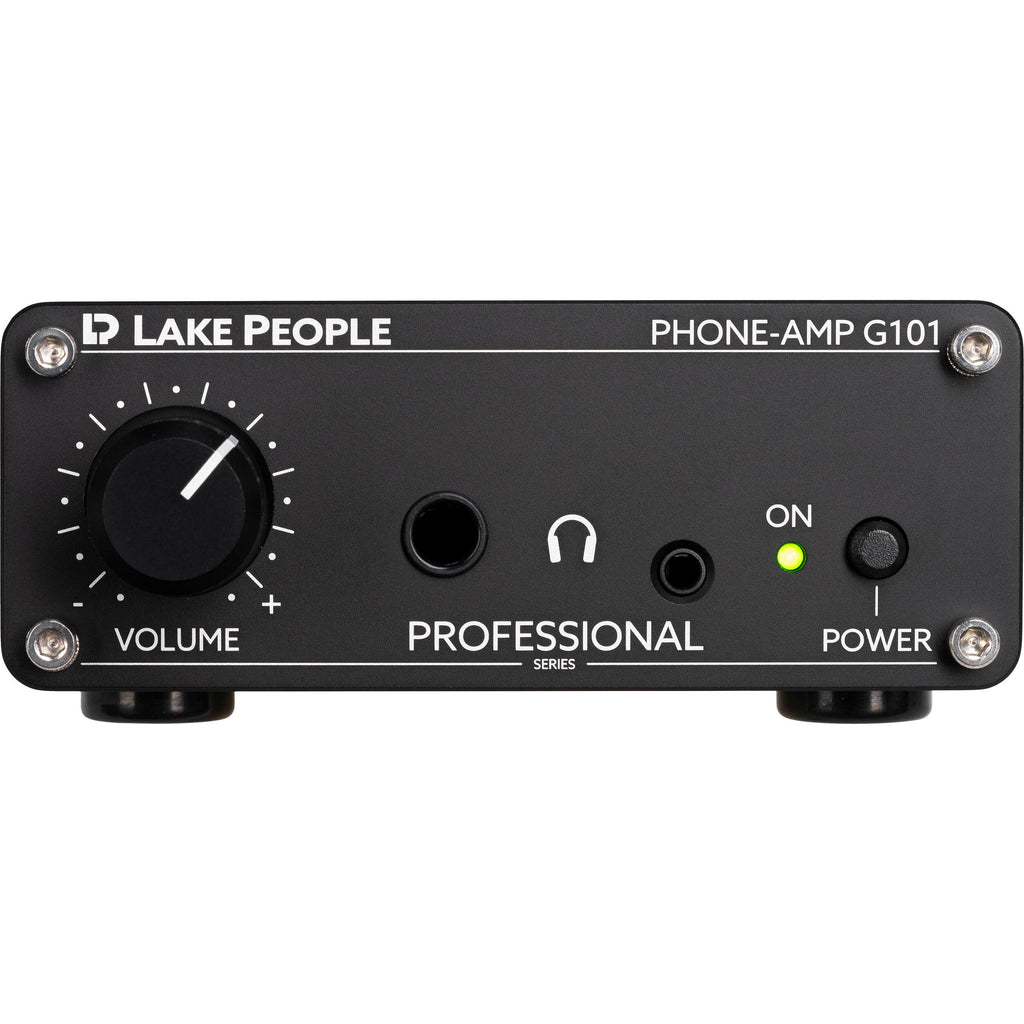

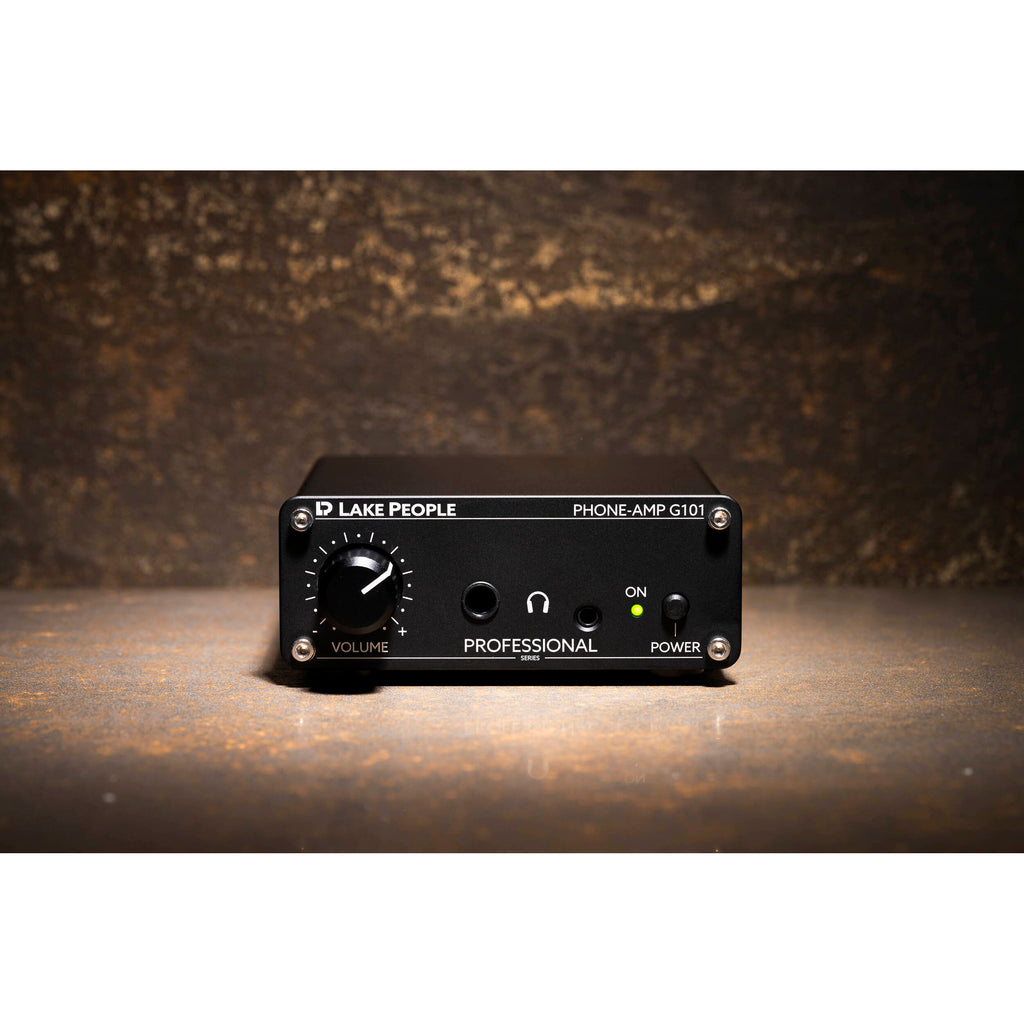

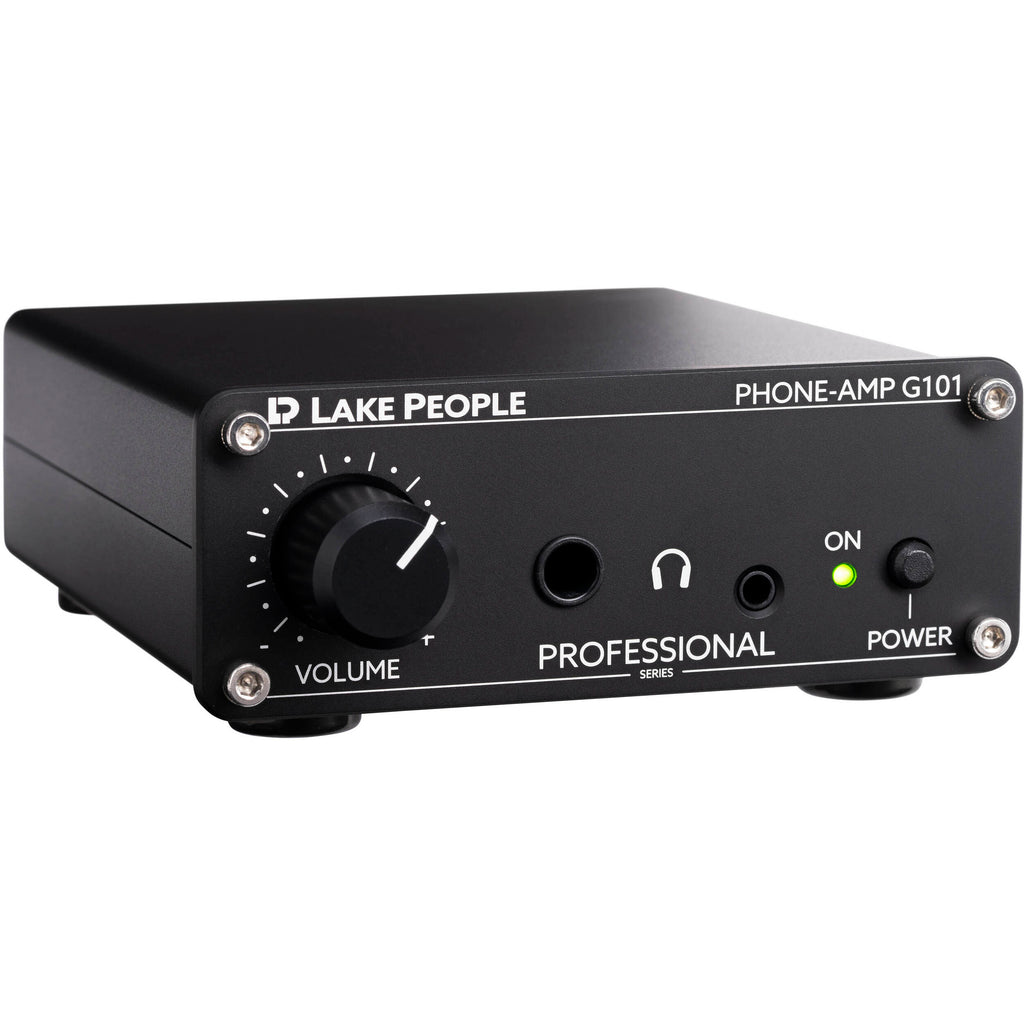

LAKE PEOPLE G101 Headphone Amplifier

At a Glance

• Unbalanced inputs via gold plated RCA connectors
• Pre-Gain: 4-stage gain control on rear of unit
• Power stages with power op-amp OPA551
• Powered by USB-C line (not included in the package)
• Compact and extremely rugged aluminum case
• Robust, indestructible amplifier with high transmission quality
• Long-term stable Alps RK14 potentiometers for volume control
• 18mm volume knob milled from aluminum
• More than adequately dimensioned internal power supply

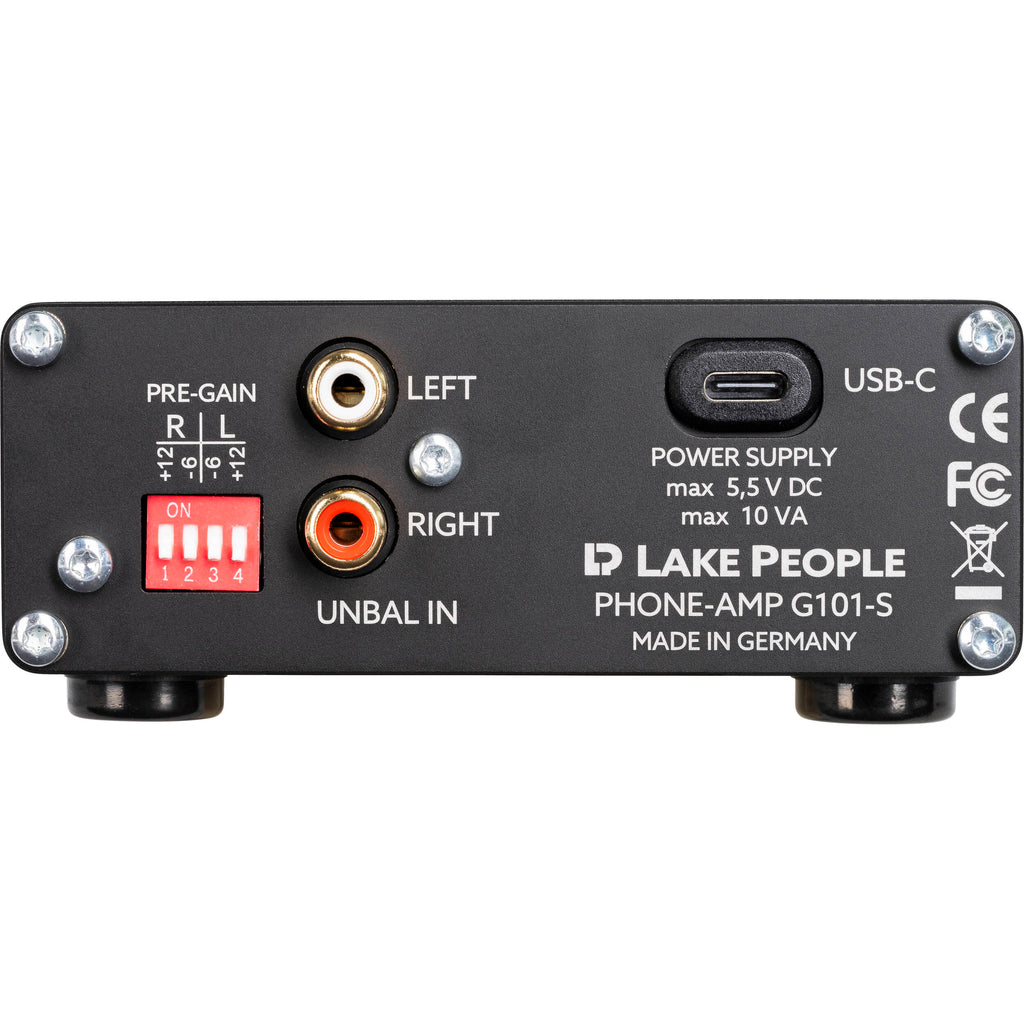

Adjustable Gain

• 4-way adjustable rear pre-gain jumpers for optimum adaptation to all sources and headphones (-6, 0, +6, +12 dB).
• Thanks to this special Lake People technology, the headphone amplifier can be operated with almost all known headphone impedances from 8 to 600 ohms and is as low-noise and dynamic as possible.

Excellent Headphone Protection

Lake People headphone amplifiers are equipped with various protective circuits to prevent headphone defects. These circuits protect against overvoltages, sudden current peaks, and short circuits that could damage sensitive headphones. The integration of such protection mechanisms ensures that the amplifier always supplies the headphones with safe and stable power, which significantly extends their service life.

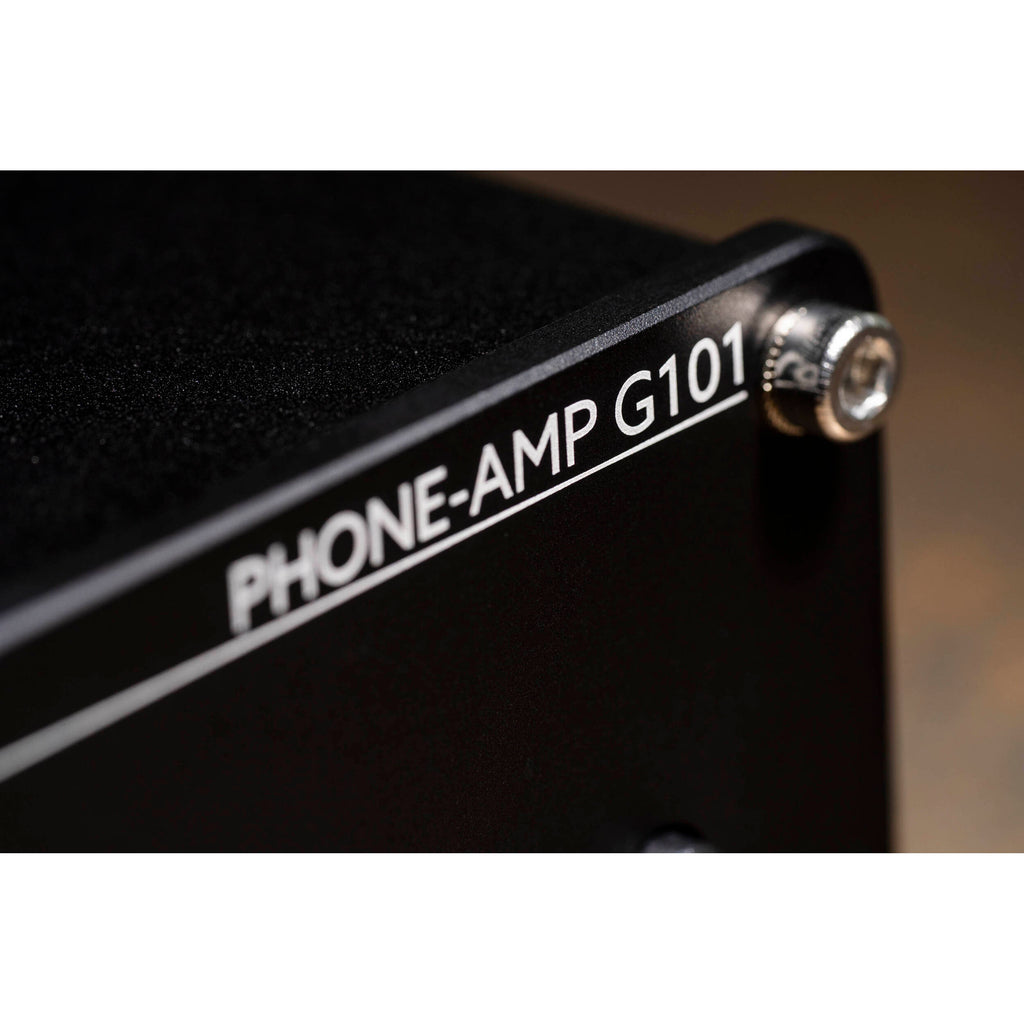

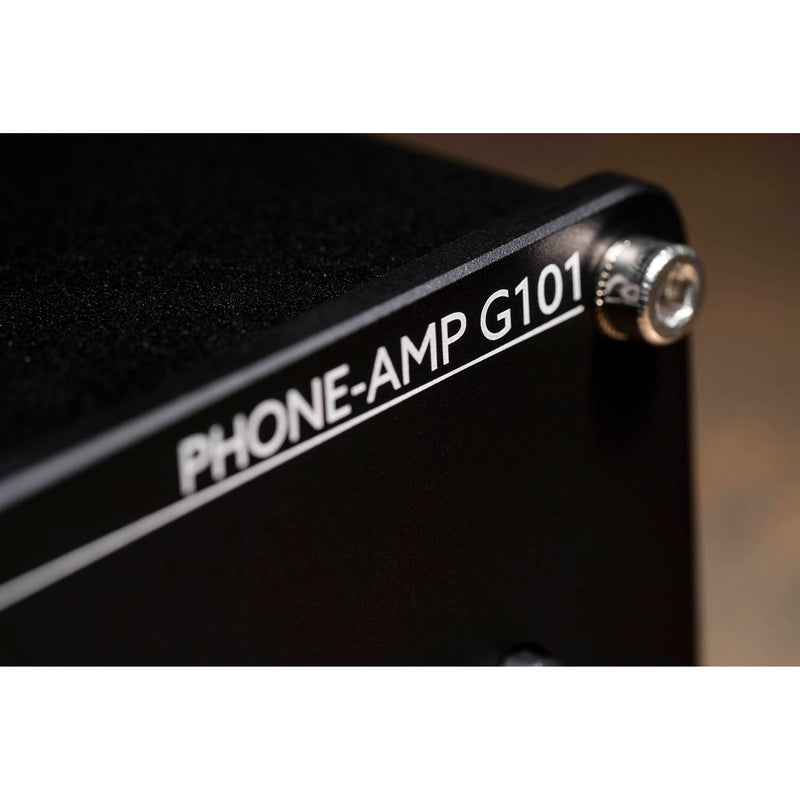

Enclosure

• The housing of the G101 is made of black anodized aluminum. This promises high mechanical stability and resistance to harsh environmental influences. The high electrical conductivity of the surfaces results in excellent EMC properties.
• The thickness of the front panel is 0.12".

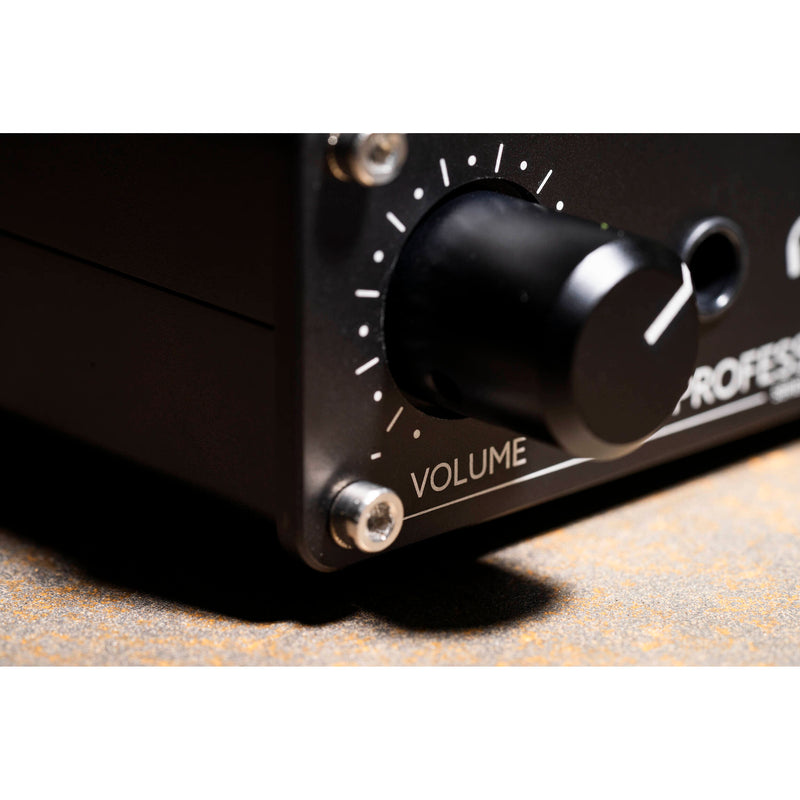

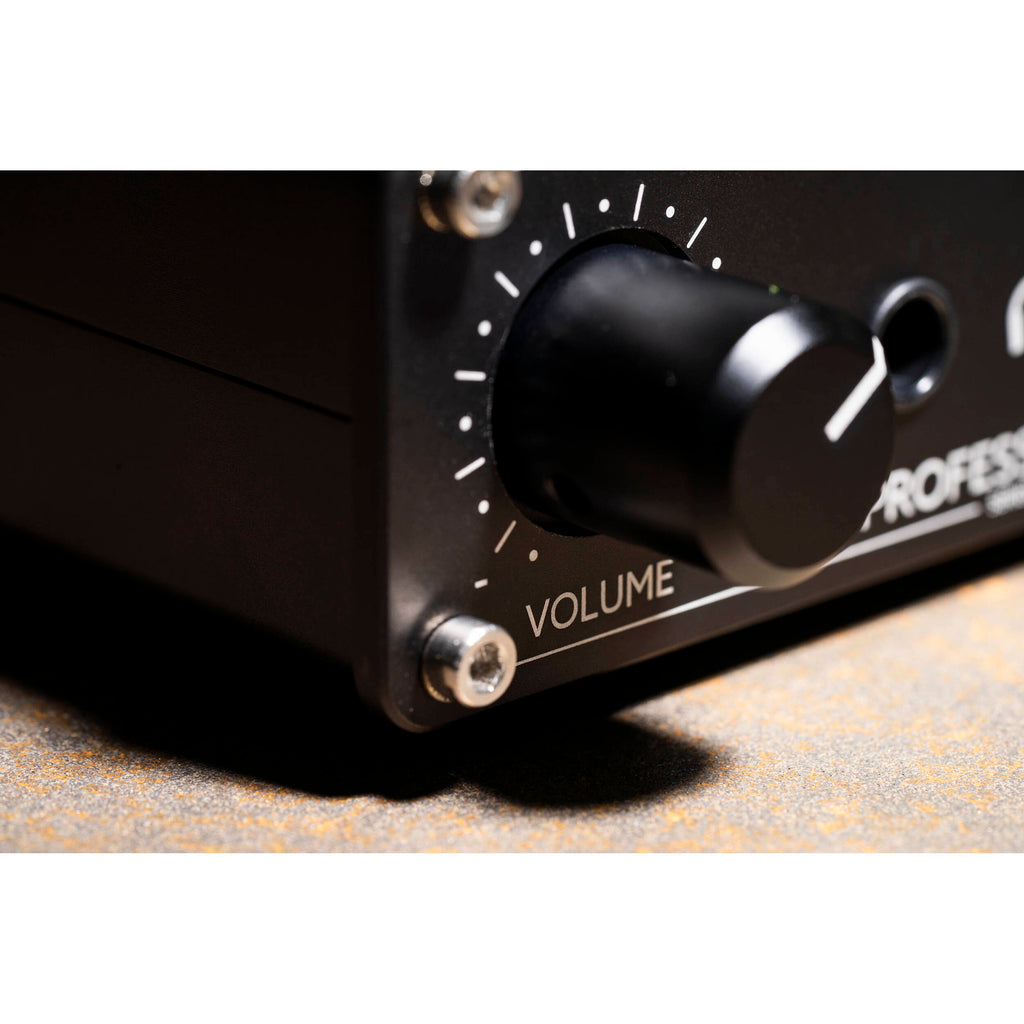

• The solid milled 0.71" aluminum rotary knob is characterized by its clear design. Thanks to its well-balanced weight and the Alps RK14 potentiometer, it provides a smooth, high-precision rotary feel for precise volume control.

Applications

Podcast and voiceover productions:

• The Lake People G101 facilitates and improves the precise recording and mixing of voice recordings that require clear and distinct speech reproduction. The G101 enables speakers and sound professionals to immediately recognize any errors and achieve optimal results faster.

Video production:

• When editing audio for film or video, detailed and pristine sound reproduction is crucial. The Lake People G101 offers the user precise control of the audio tracks, which is particularly important for dubbing or sound design. Thanks to its RCA inputs, the G101 can be used universally.

LAKE PEOPLE G101 Specs

Number of Headphone Channels	Single Channel
Recommended Headphone Impedance	Not Specified by Manufacturer
Headphone Output Power	Not Specified by Manufacturer
Analog Audio I/O	1x 1/4" TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Digital Audio I/O	No
USB I/O	1x USB-C (Power/Charging Input)
Wireless	No
Frequency Response	5 Hz to 150 kHz
Power Requirements	USB Power Adapter (Not Included)

Number of Headphone Channels	Single Channel
Recommended Headphone Impedance	Not Specified by Manufacturer
Headphone Output Power	Not Specified by Manufacturer
Digital Chipset	Not Specified by Manufacturer
EQ	No
Display	No

Analog Audio I/O	1x 1/4" TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Digital Audio I/O	No
USB I/O	1x USB-C (Power/Charging Input)
Wireless	No

Frequency Response	5 Hz to 150 kHz
Maximum Input Level	+21 dBu
Dynamic Range	124 dBA
Impedance	Inputs: 10 Kilohms Outputs: 0.1 Ohm
Noise	-102 dBA
Crosstalk	-90 dB (at 15 kHz)

Power Requirements	USB Power Adapter (Not Included)
DC Input Power	5 VDC at 2A
AC/DC Power Adapter	No

Dimensions

5 x 4.1 x 1.5" / 128 x 105 x 38 mm

Package Weight	1.04 lb
Box Dimensions (LxWxH)	8 x 6.3 x 3"
