Description
iFi Studio PRO IDSD Overview
Designed for mixing and mastering applications, the iFi-Studio Pro iDSD Studio is a professional-grade, reference-class audio interface (DAC) and controller that provides no-compromise performance for all professional audio monitoring situations.
The Pro iDSD Studio features innovative technology with premium components to ensure the best audio quality possible. With support for 32-bit/768 kHz PCM, DSD512, 2xDXD and full MQA decoding, the unit works with most audio formats. The internal low-jitter Global Master Timing clock lowers noise and distortion, allowing you to hear precisely and make informed decisions while mixing and mastering. For even more flexibility, the Pro iDSD Studio integrates a Wi-Fi/network playback system using linkplay DLNA and Airdrop to access streaming from MacBooks or streaming services such as Tidal.
At a Glance
- USB, AES/EBU, S/PDIF, Ethernet, Wi-Fi, Micro SD
- Asynchronous or external clock options
- 32-bit/768 kHz PCM, DSD512, 2xDXD and full MQA decoding
- Switchable separate J-FET or tube (2 x GE5670) Class-A input stage. MOSFET-buffered bipolar Class-A Power stage
Monitoring Your Music
- You get much closer to the music you are creating thanks to its Class-A power stage and fully balanced outputs for connection to active monitors or an external power amp.
- Prefer using headphones? No problem. Its choice of balanced 4.4mm, S-balanced 3.5mm or single-ended 6.3mm connectors with selectable gain gives you every option.
Advanced Technology

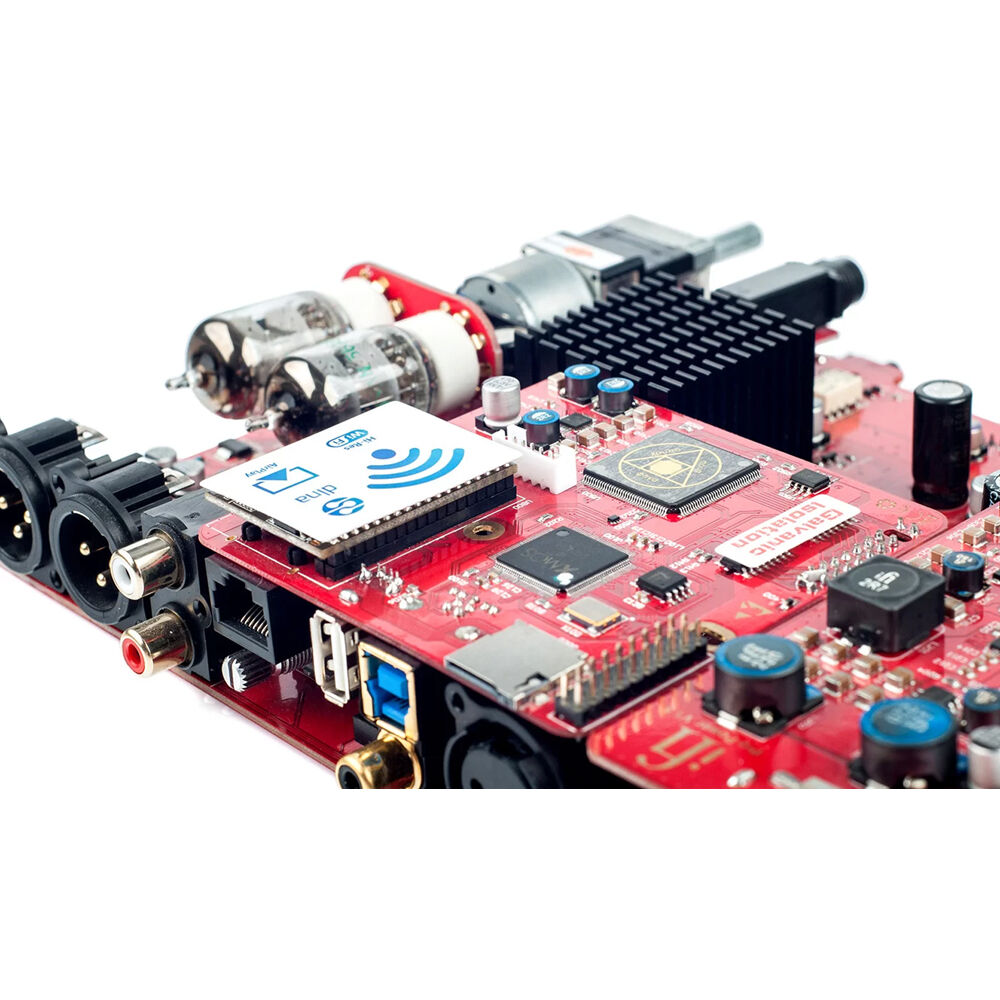

- The Pro iDSD Studio uses a quad core of Burr Brown D/As in a custom interleaved configuration to deliver exceptional resolution. A total of eight pairs (four for each channel) of differential signals are used and mixed.
- The powerful XMOS XU216 X-Core 200 series chipset processes incoming digital data and enables the Pro iDSD Studio to provide state of the art audio support�32-bit/768 kHz PCM, DSD512, 2xDXD and full MQA decoding.
- Data is sent to the Memory Buffer from all inputs. Here, it is de-jittered to eliminate any transmission of source jitter to the D/A output. The data from the Memory Buffer is further re-clocked by the low-jitter Global Master Timing clock, which also drives the X-Core 200.
- For the purpose of synchronization in recording studios, the Pro iDSD Studio supports AES3id based DARS (Digital Audio Reference Signal) according to AES11.
- And if you happen to have a really good atomic clock (of Sanford Research Systems PERF10 quality or higher), it can be used to further elevate the Pro iDSD Studio�s already impressive internal clock system performance.
Ultra-Quiet with Ultralow Distortion
- The Pro iDSD Studio has been designed to be ultra-quiet with ultralow distortion for an extremely accurate representation of the recording.
- Each D/A converter operates in the voltage output mode, giving >119 dB dynamic range and 4200mW of headphone power drive. A fully balanced passive filter is used to remove ultrasonic noise directly after the D/A conversion, so the follow-on analog stage is not required to handle ultrasonic noise and RFI originating within the D/A processes.
- All inputs are galvanically isolated, including the USB, which has its own separate power management system.

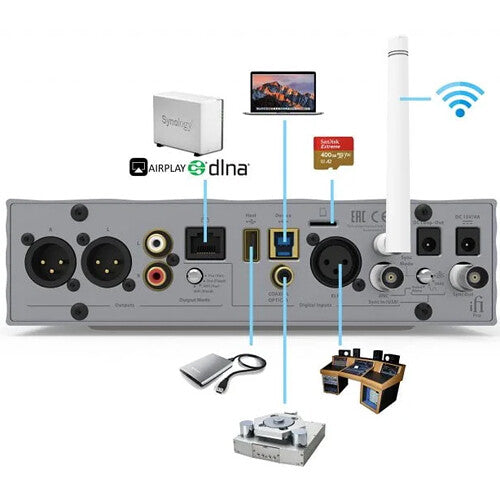

Connectivity
- In addition to its traditional inputs, the Pro iDSD Studio integrates a Wi-Fi/network playback system using linkplay DLNA and Airdrop to access streaming from MacBooks or streaming services such as Tidal.
- Wide protocol support, including Airplay and USB memory/HDD/SD card playback, make it a full standalone streamer/network audio player with 32 bit/192 kHz & DSD64 support.
Items Included
- iFi Studio Pro iDSD Studio Reference-Class DAC Audio Interface and Controller
- Power Supply
- USB Cable
- Stereo RCA Calbe
- Wi-Fi Antennae
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
iFi Studio PRO IDSD Specs
Key Specs
| Channels of I/O |
2 Inputs / 2 Outputs
|
| Maximum Sampling Rate |
768 kHz / 32-Bit (PCM)
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
2x XLR 3-Pin Balanced Line/Monitor Output
1x Stereo RCA Unbalanced Line Output 1x 1/4" TRS Unbalanced Headphone Output 1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output 1x 4.4 mm TRRRS Balanced Headphone Output |
| Digital Audio I/O |
1x XLR 3-Pin AES3 Input
1x RCA Coaxial S/PDIF Input |
| Host Connection |
1x USB-B
|
| OS Compatibility |
macOS
Windows |
| Power Requirements |
AC/DC Power Adapter (Included)
|
| Channels of I/O |
2 Inputs / 2 Outputs
|
| Built-In DSP |
No
|
| Maximum Sampling Rate |
768 kHz / 32-Bit (PCM)
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
Signal Processing
| Pad |
No
|
| Gain/Trim Range |
0 dB to +18 dB (in 9 dB Steps, Headphone Section)
|
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
Connectivity
| Analog Audio I/O |
2x XLR 3-Pin Balanced Line/Monitor Output
1x Stereo RCA Unbalanced Line Output 1x 1/4" TRS Unbalanced Headphone Output 1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output 1x 4.4 mm TRRRS Balanced Headphone Output |
| Phantom Power |
No
|
| Digital Audio I/O |
1x XLR 3-Pin AES3 Input
1x RCA Coaxial S/PDIF Input |
| Host Connection |
1x USB-B
|
| Host Connection Protocol |
USB 3.0 / 3.1/3.2 Gen 1
|
| USB (Non-Host) |
1x USB-A (Device Connection, External Storage)
|
| Sync I/O |
1x BNC Clock Input
1x BNC Clock Output |
| Network I/O |
1x RJ45 Ethernet
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Wireless |
Wi-Fi
*Built-In |
Performance
| Maximum Output Level |
XLR Line Outputs:
11.7 V (600 Ohms) RCA Line Outputs: 5.9 V |
| Headphone Output Power |
4200 mW per Channel into 16 Ohms (Balanced)
1575 mW per Channel into 16 Ohms (Unbalanced) |
| Dynamic Range |
119 dBA (Solid-State, PCM, -60 dBFS)
|
Digital Audio
| Sample Rates |
Up to 768 kHz (PCM)
50 MHz (DSD) |
| Sample Rate Conversion |
No
|
| Bit Depths |
32-Bit (PCM)
|
Audio Storage & Playback
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC [128 GB Maximum]
|
Compatibility
| OS Compatibility |
macOS / Windows
|
| OS Compatibility |
macOS
Windows |
| Mobile App Compatible |
No
|
| Mobile Device Compatibility |
No
|
Power
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC/DC Power Adapter |
100 to 240 VAC (Included)
|
| Power Consumption |
50 W (Maximum)
22 W (Idle) |
Physical
| Dimensions |
8.7 x 8.4 x 2.5" / 220 x 213 x 63 mm
|
| Weight |
4.4 lb / 1996.0 g
|
Packaging Info
| Package Weight |
8.295 lb
|
| Box Dimensions (LxWxH) |
11 x 10.1 x 4.9"
|
