Description

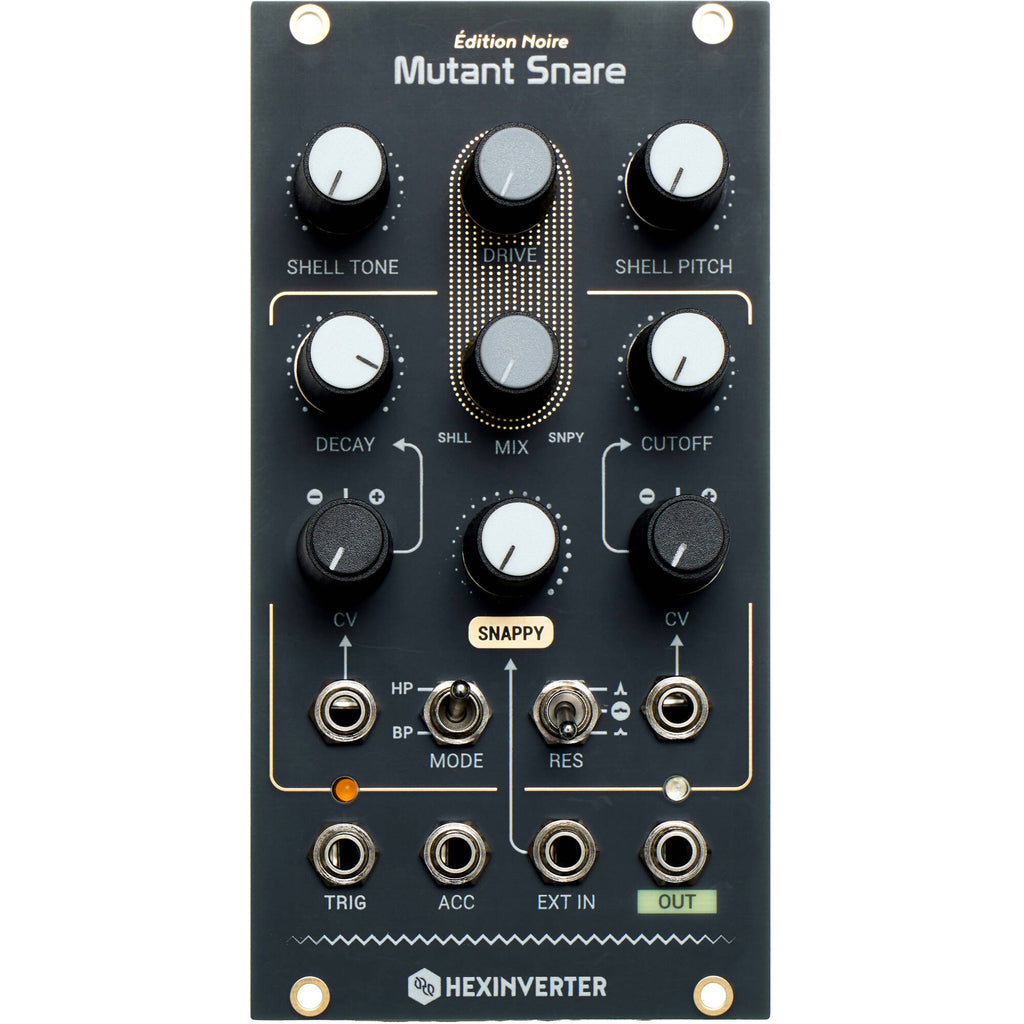

Erica Synths SNARE Overview
Add the sounds of the TR-808 snare drum to your modular rig with the erica synths Hexinverter Mutant Snare, a fully analog snare drum module in Eurorack format. The module was inspired by the legendary TR- 808 drum machine and generates classic electro snares and warped alien percussion, providing a radical departure from the static sounds of the original. The Mutant Snare ships with a ribbon power cable and mounting screws.
Benefits
- Analog bridged-t sinewave oscillators, for those organic-sounding tones we've come to love from the 808
- Tone control blends between the two sinewaves of different frequency
- Shell Pitch lets you tune one of the sine waves, to change the pitch of your snare drum
- Snappy adds some noise to the snare
- Analog white noise generator feeds the Snappy circuit
- External input lets you patch any sound source you like into the Snappy generator
- Voltage control of Snappy decay
- Snappy feeds into an analog selectable high-pass or bandpass filter
- Voltage control of filter cutoff frequency
- When nothing is plugged into the cutoff CV input, the SNAPPY envelope or the adjustable sinewave from the Shell generator normalize through the CV attenuverter for cutoff CV. A jumper on the back of the module allows you to select which of these internal modulation signals are routed here
- Filter has three resonance settings: classic 808 (low resonance), high resonance, and self oscillation
- Bipolar attenuators (aka attenuverters) on CV inputs
- Redesigned by Erica Synths in close collaboration with Hexinverter
Eurorack Ready
- Width: 13 HP
- Depth: 0.8" / 20.0mm
- Includes power ribbon cable with Eurorack power headers and mounting screws
- Power Consumption: +12V: 62mA / -12V: 57mA
Items Included
- Erica Synths Hexinverter Mutant Snare Eurorack Module (13 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Erica Synths SNARE Specs
General
| Specifications |
Audio Output: 10 Vptp
CV Levels: -5 V - +5 V Power Consumption: +62 mA, -57 mA Module Width: 13 HP Module Depth: 0.8" / 20.0 mm |
Inputs/Outputs
| Audio I/O |
1x 1/8" / 3.5 mm TS Hi-Z/Instrument Output
|
Power
| Power Source |
Proprietary Interface
|
Physical
| Color |
Black
|
Packaging Info
| Package Weight |
0.475 lb
|
| Box Dimensions (LxWxH) |
7.7 x 4 x 2.5"
|
