Description
Erica Synths MUTANT BUNDLE Overview

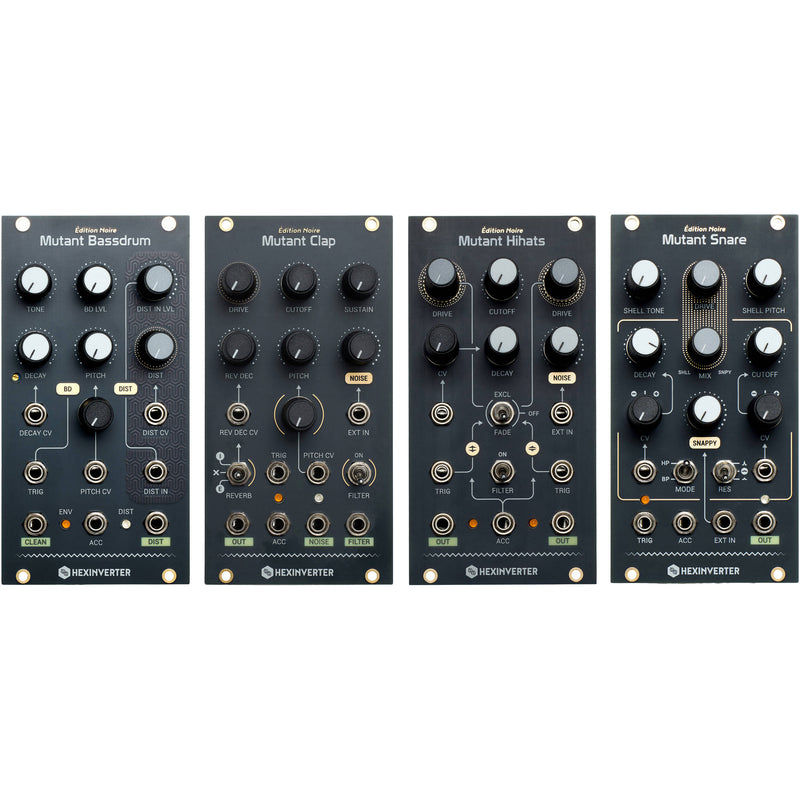

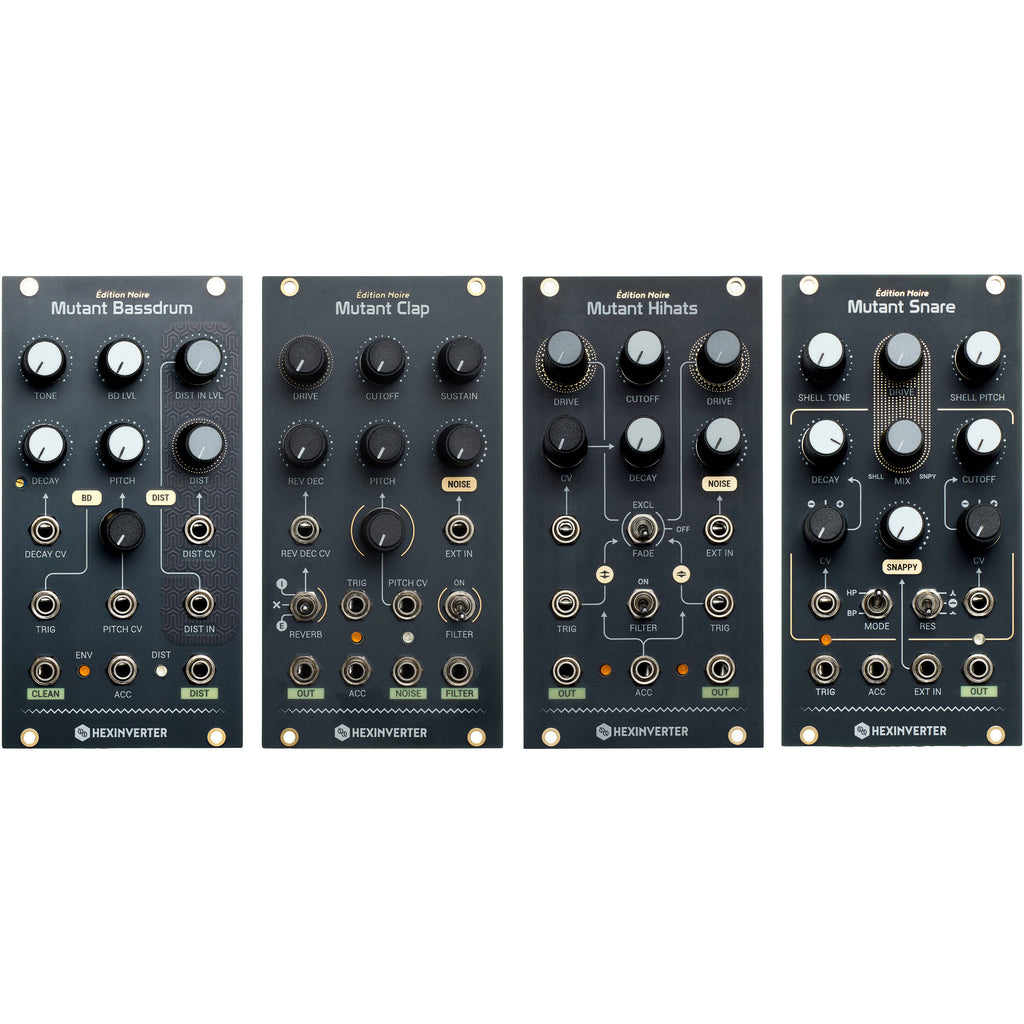

Designed for anyone with a taste for TR-808 / TR-909 sounds, the erica synths Hexinverter Mutant Bundle combines four reissues of classic Hexinverter drum modules including the Mutant Bassdrum, Mutant Snare, Mutant Hi-Hats, and Mutant Clap. Each module was developed in close collaboration with Hexinverter and feature several enhancements allow you to explore well beyond the classic TR drum sounds. The modules have been redesigned with a hi-fi signal path for optimum sound quality.

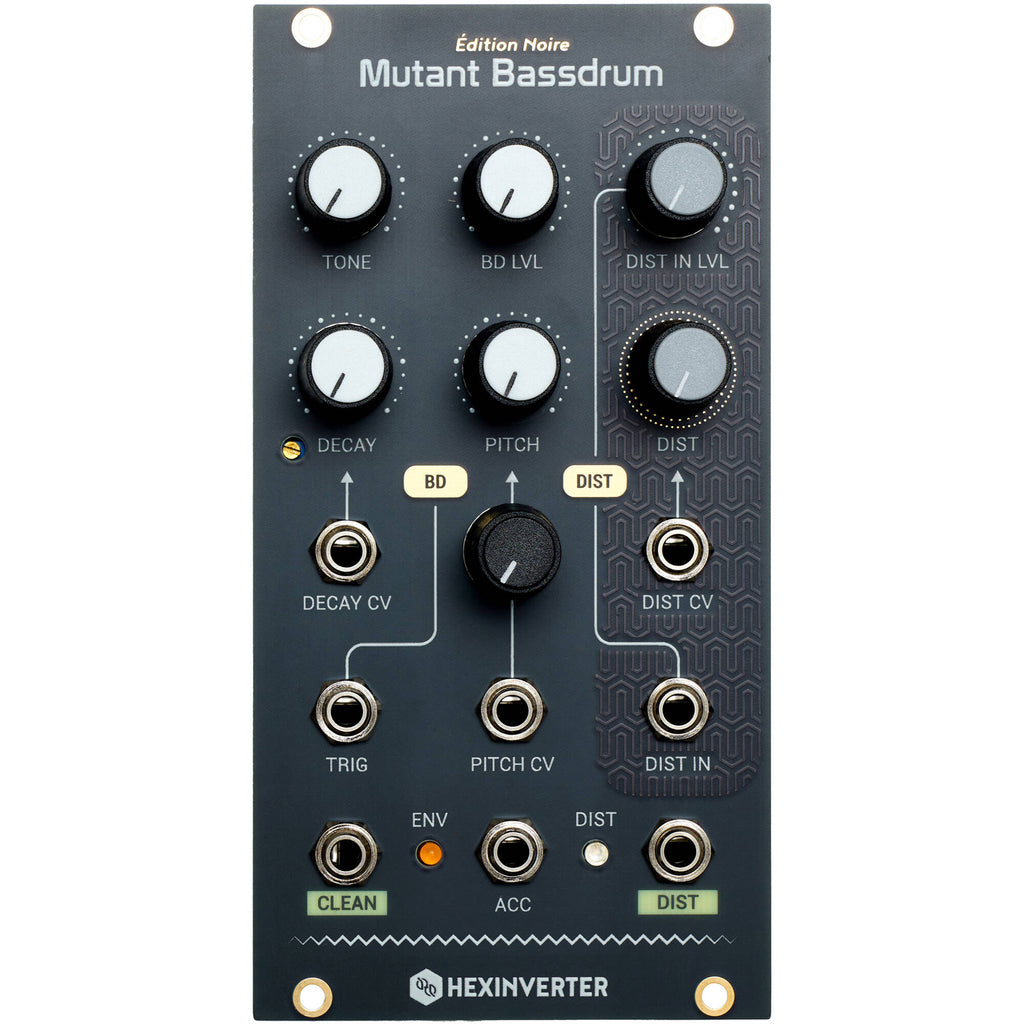

Add the sounds of the TR-808 bassdrum to your modular rig with the erica synths Hexinverter Mutant Bassdrum, a fully analog bassdrum module in Eurorack format. The module was inspired by the legendary 808 drum machine and features a completely redesigned signal chain that utilizes low-noise opamps. The Mutant Bassdrum ships with a ribbon power cable and mounting screws.
- Analog bassdrum circuitry capable of vanilla TR-808 sounds
- Built in voltage controlled distortion (batteryACID distortion)
- Distortion accepts external inputs when not being used with kick drum (great for acid synth leads)
- Voltage control of distortion amount
- Voltage control of decay from short kicks to long oomphs
- Voltage control of pitch (approximates v/oct response, but not musically tuned)
- Noninvasive analog optocouplers used for voltage control for a choice of vintage sounds
- Completely redesigned, hi-fi signal chain spares no expense by replacing cheap transistor amplifiers with low-noise opamp equivalents
- Width: 13 HP
- Depth: 0.8" / 20.0mm
- Includes power ribbon cable with Eurorack power headers and mounting screws
- Power Consumption: +12V: 21mA / -12V: 16mA

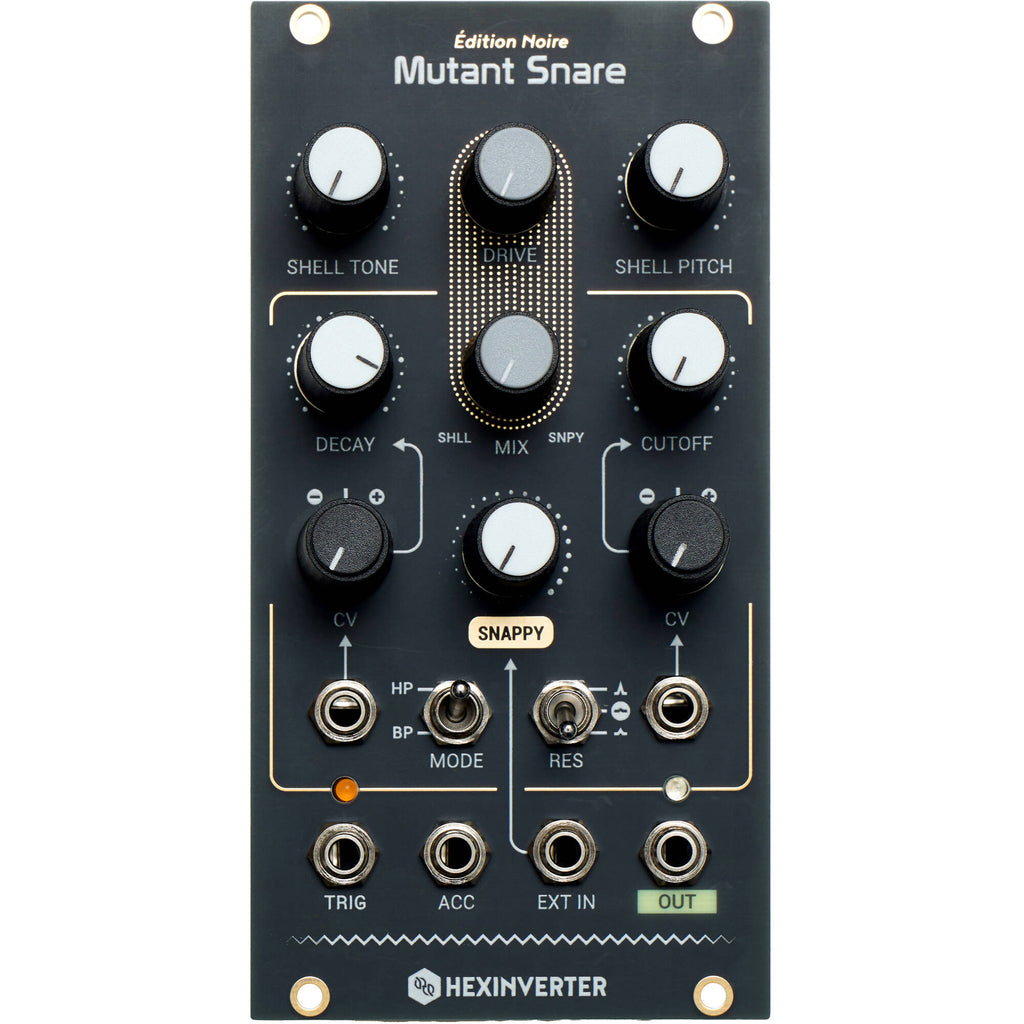

Add the sounds of the TR-808 snare drum to your modular rig with the erica synths Hexinverter Mutant Snare, a fully analog snare drum module in Eurorack format. The module was inspired by the legendary TR- 808 drum machine and generates classic electro snares and warped alien percussion, providing a radical departure from the static sounds of the original. The Mutant Snare ships with a ribbon power cable and mounting screws.
- Analog bridged-t sinewave oscillators, for those organic-sounding tones we've come to love from the 808
- Tone control blends between the two sinewaves of different frequency
- Shell Pitch lets you tune one of the sine waves, to change the pitch of your snare drum
- Snappy adds some noise to the snare
- Analog white noise generator feeds the Snappy circuit
- External input lets you patch any sound source you like into the Snappy generator
- Voltage control of Snappy decay
- Snappy feeds into an analog selectable high-pass or bandpass filter
- Voltage control of filter cutoff frequency
- When nothing is plugged into the cutoff CV input, the SNAPPY envelope or the adjustable sinewave from the Shell generator normalize through the CV attenuverter for cutoff CV. A jumper on the back of the module allows you to select which of these internal modulation signals are routed here
- Filter has three resonance settings: classic 808 (low resonance), high resonance, and self oscillation
- Bipolar attenuators (aka attenuverters) on CV inputs
- Redesigned by Erica Synths in close collaboration with Hexinverter
- Width: 13 HP
- Depth: 0.8" / 20.0mm
- Includes power ribbon cable with Eurorack power headers and mounting screws
- Power Consumption: +12V: 62mA / -12V: 57mA

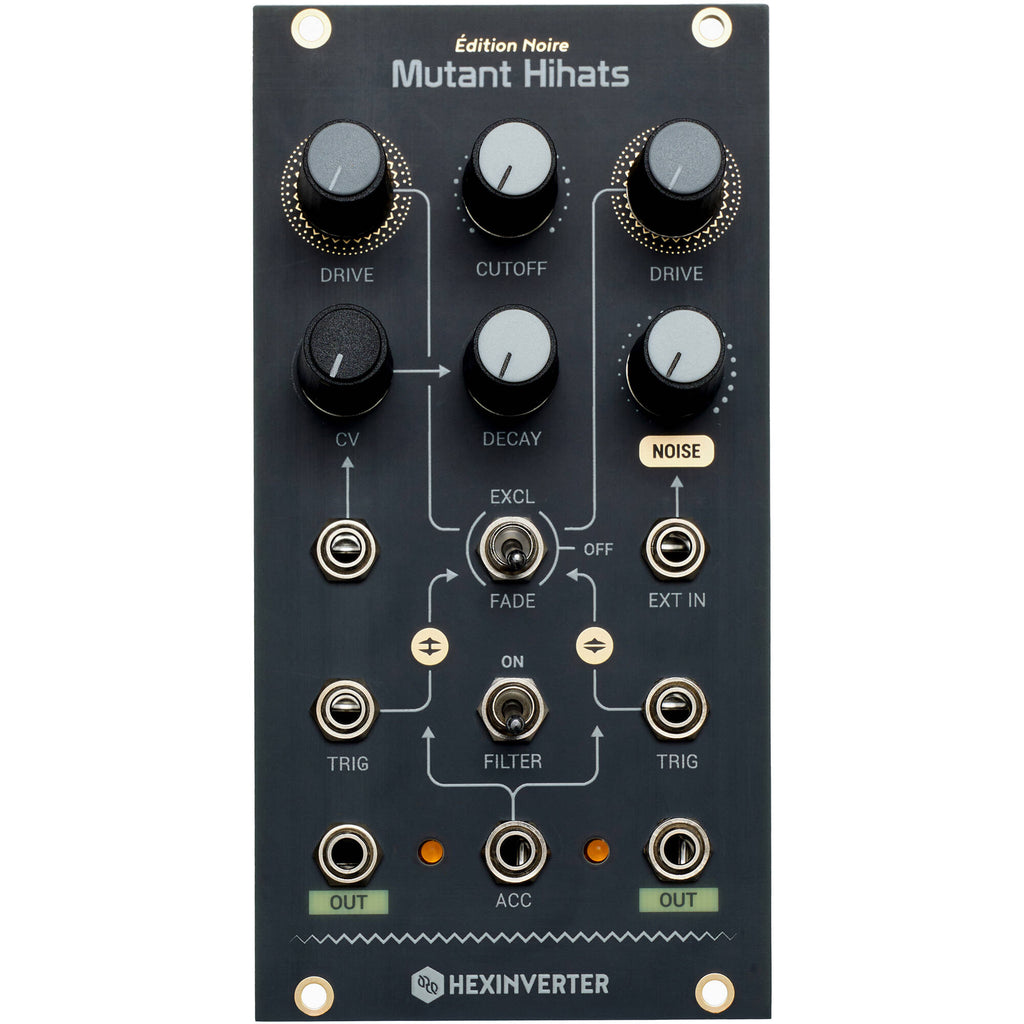

Add the sounds of TR-808 hi-hats to your modular rig with the erica synths Hexinverter Mutant Hi-Hat, a fully analog snare drum module in Eurorack format. The module was inspired by the legendary TR-808 drum machine and generates super electro open-and-close 808 hi-hats with the ability to transform them into something new and exciting. The Mutant Hi-Hats ships with a ribbon power cable and mounting screws.
- Analog hi-hat circuitry capable of synthesizing vanilla TR-808 open and closed hi-hat sounds (simultaneously)
- External audio input lets you synthesize hi-hats from virtually any sound source (Jupiter Storm, vcNOIZ, etc.)
- Low-fidelity original VCAs replaced by OTA-based modern VCAs
- VCA Drive control for each hi-hat allows you to dial in anything from soft metallic hi-hats to extremely overdriven, crunchy hi-hats
- Exclusive switch lets you select how the two hi-hats (open/closed) interact with each other when triggered at the same time
- Cutoff frequency control for internal resonant band-pass filter
- Resonant filter can be switched on/off
- Modular level mutual accent input (0 to 5V)
- Trigger input accepts almost anything as a trigger signal
- Noninvasive analog optocouplers used for voltage control for a choice of vintage sounds
- Completely redesigned hi-fi signal chain spares no expense by replacing cheap transistor amplifiers with low noise opamps and OTA equivalents
- Width: 13 HP
- Depth: 0.8" / 20.0mm
- Includes power ribbon cable with Eurorack power headers and mounting screws
- Power Consumption: +12V: 23mA / -12V: 17mA

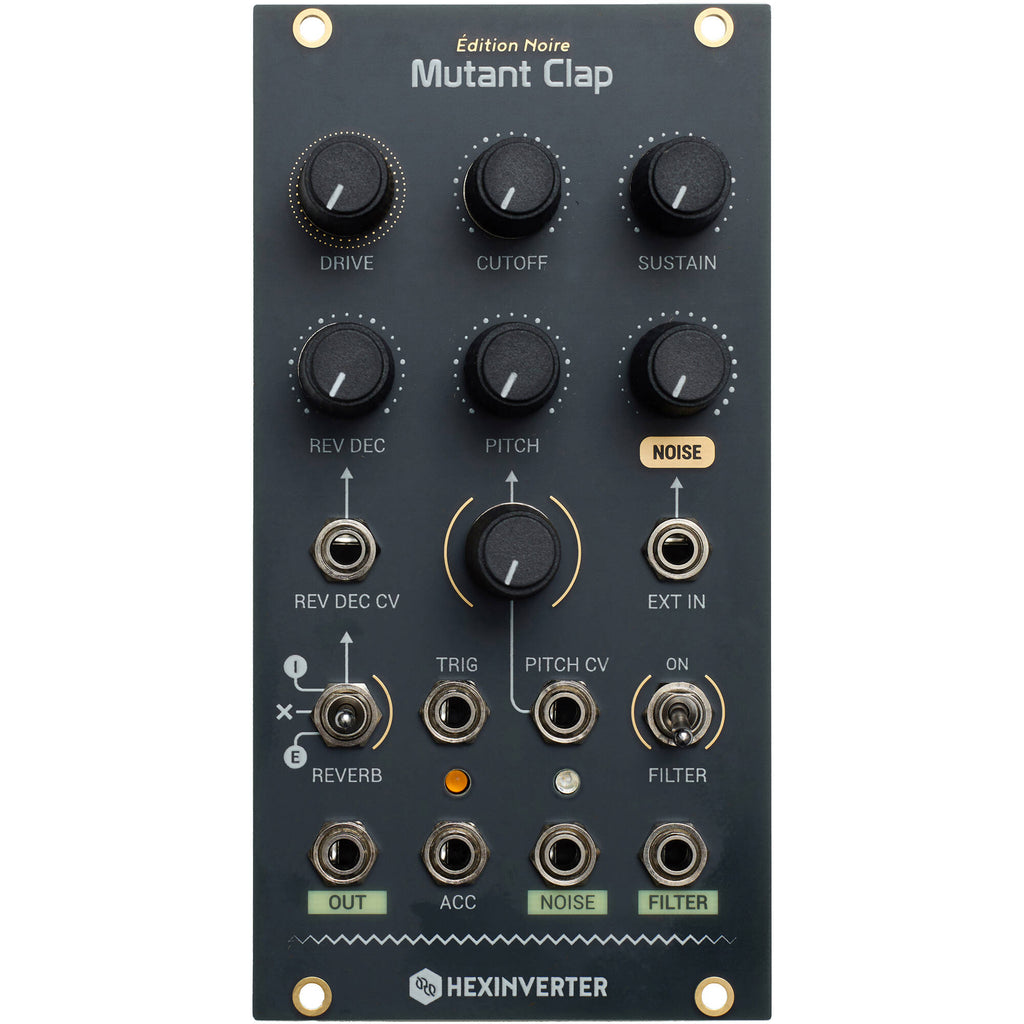

Add the sound of the TR-909 clap to your modular rig with the erica synths Hexinverter Mutant Clap, a fully analog clap module in Eurorack format. The module was inspired by the legendary TR-909 drum machine and generates classic 909 claps. However, several enhancements have been made resulting in some much-needed range and depth. The clap is a highly versatile module and can be used as a voltage-controlled linear feedback shift register (LFSR) noise oscillator as well as a powerful percussion synthesis engine. The Mutant Clap ships with a ribbon power cable and mounting screws.
- Feature-rich analog handclap percussion synthesis reminiscent of the 909
- Pitch control of noise generator means you can create everything from vanilla 909 claps to broken chiptune-like alien sounds
- Doubles as a voltage controlled, Commodore64-sounding noise VCO via the Noise output and Pitch CV input
- Sustain control lets you crank up the clap's sustain and use the module as an abstract synth voice with external inputs
- External input allows you to synthesize claps from virtually any sound source you plug in
- Built in internal reverb effect derived from clap tone
- Reverb decay forms the decay of the clap sound, and is fully voltage controllable from short reverb snaps to long, whooshing tails
- You can select between internal and external noise sources as the source for the reverb sound generation, opening up really interesting sounds
- Drive control lets you dial in anything from clean to extremely overdriven sounds
- Band-pass filter cutoff control
- Width: 13 HP
- Depth: 0.8" / 20.0mm
- Includes power ribbon cable with Eurorack power headers and mounting screws
- Power Consumption: +12V: 29mA / -12V: 25mA
Items Included
- Erica Synths Hexinverter Mutant Bassdrum Eurorack Module (13 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
- Erica Synths Hexinverter Mutant Snare Eurorack Module (13 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
- Erica Synths Hexinverter Mutant Hi-Hats Eurorack Module (13 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
- Erica Synths Hexinverter Mutant Clap Eurorack Module (13 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Erica Synths Hexinverter Mutant Bassdrum Eurorack Module (13 HP)
| Specifications |
Audio Output: 10 Vptp
CV Levels: -5 V - +5 V Power Consumption: +21 mA, -16 mA Module Width: 13 HP Module Depth: 0.8" / 20.0 mm |
| Audio I/O |
2x 1/8" / 3.5 mm TS Hi-Z/Instrument Output
|
| Power Source |
Proprietary Interface
|
| Color |
Black
|
| Package Weight |
0.44 lb
|
| Box Dimensions (LxWxH) |
7.7 x 3.8 x 2.5"
|
