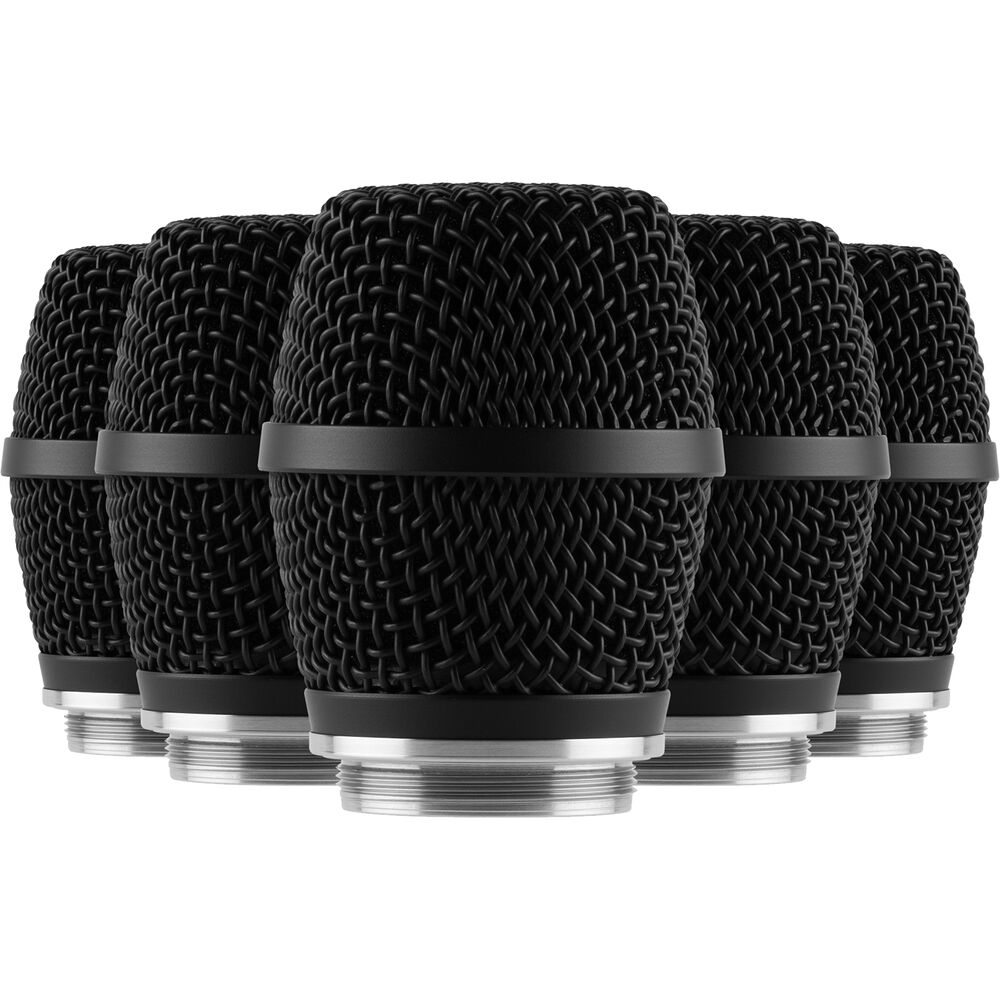

Earthworks SR3117 Supercardioid Condenser Vocal Microphone Capsule for Select Shure Transmitters (5-Pack)

Offering the power and quality of a condenser microphone with the safety and familiarity of a dynamic, the SR3117 (5-Pack) from Earthworks is a rugged and versatile workhorse microphone capsule designed for use with select handheld wireless transmitters from Shure, Audio-Technica, and Line 6 (available separately) that support interchangeable mic capsules. The microphone can be used on vocals and a wide variety of instruments for live sound applications and home/project studio recording. The mic features a 10mm condenser capsule that delivers accurate and clear reproduction of audio sources without the need for copious amounts of corrective EQ.

The SR3117 features a supercardioid polar pattern that focuses audio capture in a tight, narrow band in front of the capsule, helping to reduce feedback problems when sound reinforcement equipment is used. In addition, the capsule is nicely suited for recording sessions in untreated home studios and control rooms, as it picks up fewer off-axis reflections that can color the sound. With the ability to handle SPLs up to 140 dB, the microphone can be used on very loud vocalists and instruments without distorting. Singers and musicians will also appreciate the enhanced protection from handling, wind, and plosive noise, allowing them to worry less about mic technique and focus instead on delivering powerful performances.

• Works for any singer or instrument
• Designed for live stage performances, but works equally well for televised productions, houses of worship, and home recordings
• Sounds natural and true on any voice
• Tight pattern control across all frequencies offers maximum feedback rejection
• Voiced with rich, clear lows, smooth vibrant mids and open airy highs
• The high SPL prevents clipping from even the most powerful vocalists
• Consistent pattern control enables more directionality and usability, ensuring that you keep a good tone and volume level, even when vocalists pull away
• Enhanced wind, plosive, and sibilance protection
• Minimal handling noise
• Designed for very high gain before feedback
• Tight supercardioid polar pattern
• Excellent off-axis rejection
• Balanced, vibrant, and natural sound right out of the box
• Frequency response from 20 Hz to 20 kHz

The SR3117 can be used on a wide variety of handheld transmitters that support interchangeable microphone capsules. The capsule simply screws on to the transmitter's base and you're ready to go.

• Shure: SLX-D, ULX-D, QLX-D, Axient
• Audio-Technica: 3000 Series, 5000 Series, 6000 Series
• Lectrosonics: HH, HHa
• Line 6: V75, V55

Earthworks SR3117 Specs

Frequency Response	20 Hz to 20 kHz
Maximum SPL	140 dB

Polar Pattern	Supercardioid
Element Type	Condenser
Diaphragm	0.4" / 10 mm

Frequency Response	20 Hz to 20 kHz
Maximum SPL	140 dB
Equivalent Noise Level	20 dB SPL (A-Weighted)

Analog Output

1x Proprietary

Color	Black
Mounting Thread Size	No Mount Included
Dimensions	ø: 1.93 x L: 2.7" / ø: 4.9 x L: 6.9 cm
Weight	4.2 oz / 118 g
