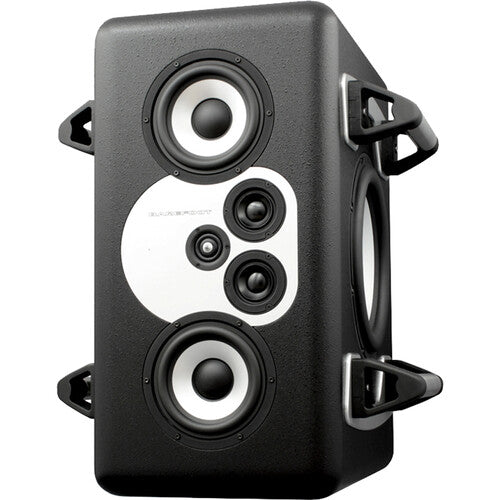

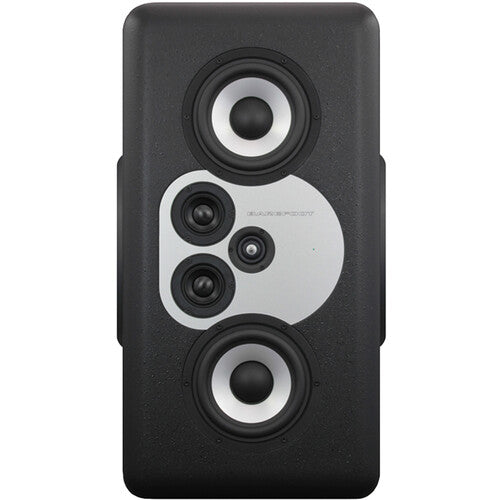

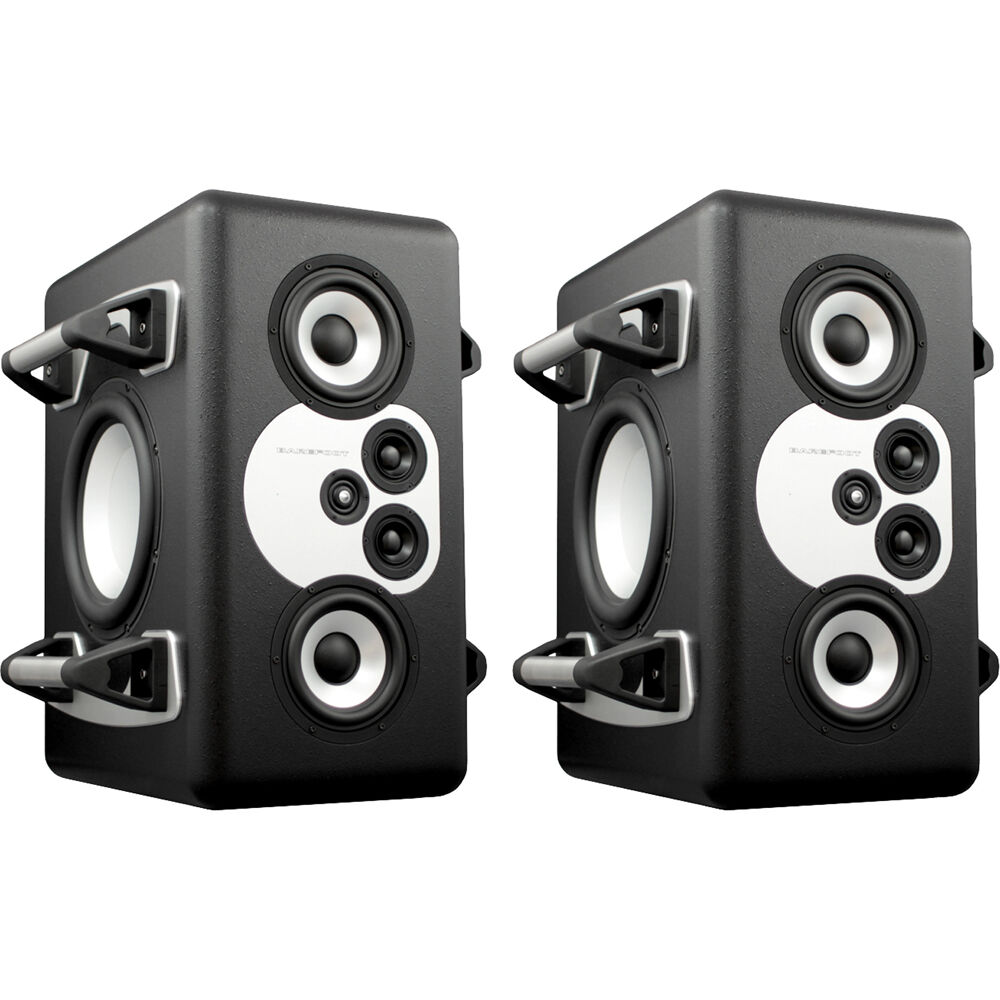

BAREFOOT SOUND MiniMain12 Flagship 4-Way Dual 12" Active Studio Monitor with Handles (Pair)

At a Glance

• 4-way active monitor
• 2000W of power per monitor
• Frequency Response: 20 Hz to 50 kHz
• Two 2.5� aluminum cone midrange drivers
• Two 7" woofers
• Opposing 12? dual-force subwoofers
• 1? ring radiator tweeter
• MEME Technology voice emulation
• Dual-Force technology

Design

Cabinet Design

• 90 liters total internal volume
• Sealed sub enclosure
• Sealed woofer enclosure
• Machined aluminum baffle plate
• Aluminum subwoofer frames function as lateral cabinet bracing
• Long fiber-wool acoustic damping throughout

Handles

• Two sets of four handles (8 handles total)
• Includes installation hardware and ratchet wrench

Dual-Force Technology

• Cabinet vibrations are a significant source of distortion and coloration in most loudspeakers. The primary mechanism is simple action and reaction. As the driver motor forces the cone to move back and forth in order to generate sound, the cone exerts an equal and opposite force on the motor. This force is transmitted through the driver frame to the cabinet. The effect is especially prevalent in the low frequencies, where the cone motion is greatest.
• MiniMain12 cabinet eliminate vibrations before they even begin through Barefoot's innovative force cancellation design (Dual-Force Technology). The low-frequency drivers are mounted on opposing sides of the cabinet, and their motors are locked together. As the cones are driven in and out in opposite directions, the forces exerted on the motors cancel one another. The vibrations never make it to the cabinet because they are not allowed to develop in the first place.
• This layout has the further benefit of forming a massive internal metal cabinet bracing. Furthermore, because the wavelengths generated by the subwoofers are much larger than the speaker cabinet dimensions, the subs radiate as if they were a single point source located on the axis with the tweeter.

MEME Technology

Barefoot MEME technology allows you to box up your secondary reference monitors for good. Despite the numerous advantages of high-resolution monitors, many engineers still rely on their NS10s and mix cubes as secondary references. These speakers have long traditions, and people find them familiar and useful for focusing in on certain aspects of their mix.

However, it�s also a fact that crowding your console with those extra boxes degrades the sound field of the primary reference monitors. Not to mention, these speakers are no longer manufactured, need amplifiers, require cable runs, and consume more studio space. MEME offers an elegant solution by emulating the sound and translation characteristics of those other classic monitors.

MEME Vocies:

Flat

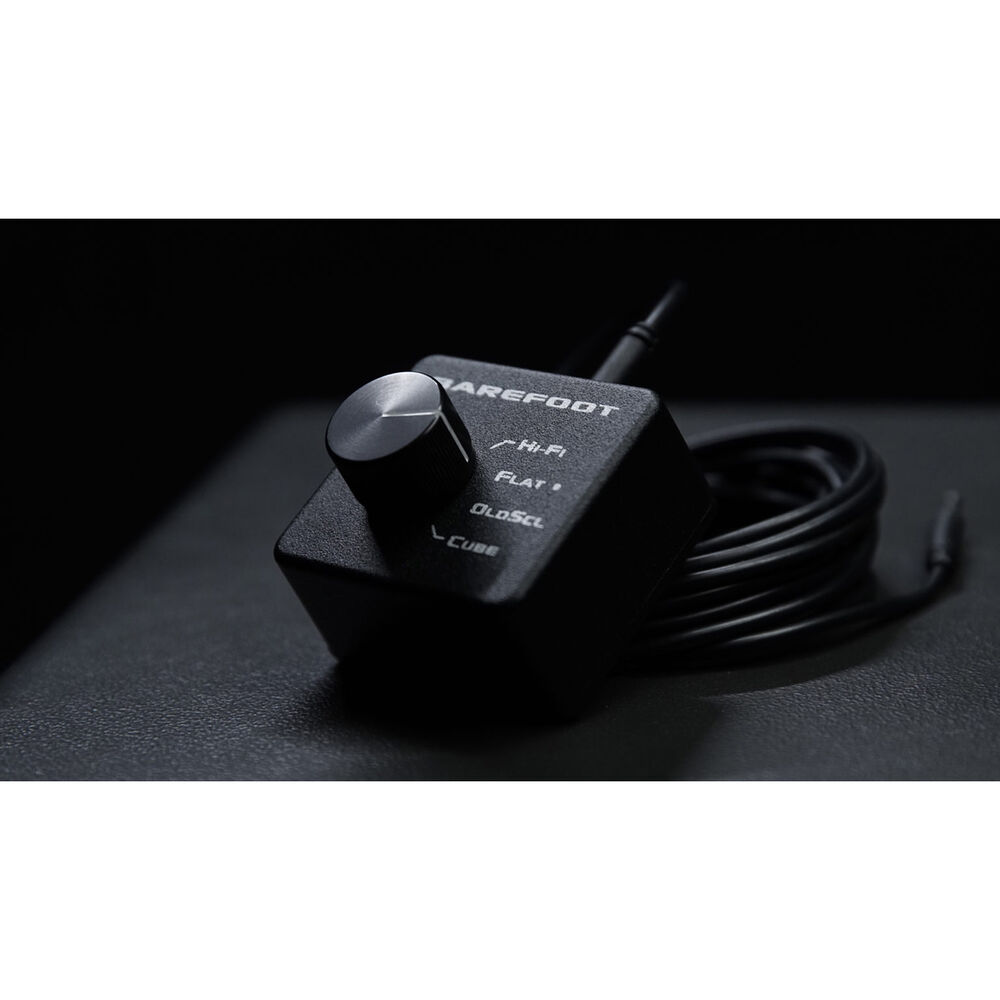

• Optimal setting for accuracy, transparency, and outstanding translation. Setting has a flat frequency response and extremely fast transient response. This is the default voice when the MEME Selector Switch is not connected to the speaker.

Hi-Fi

• While it does not emulate any one speaker in particular, this setting is indicative of hi-fi in the colloquial sense of the term. The midrange is a bit scooped and the highs are a little accentuated. The bass response is altered to have less damping, yielding a hybrid character somewhere between the fast, tight, articulate sound of a sealed cabinet and the slower, fatter sound of a ported speaker. The result is a sweeter more forgiving sonic character.

Old School

• This setting emulates the frequency, phase, and transient response of the NS10M.

Cube

• This setting emulates the frequency, phase, and transient response of classic mix cubes.



BAREFOOT SOUND MiniMain12 Specs

Woofer

2x 7" / 17.8 cm Aluminum Cone

Woofer

2x 7" / 17.8 cm Aluminum Cone

Monitor Orientation	Vertical
Dimensions (W x H x D)	26 x 21.9 x 14.4" / 66 x 55.6 x 36.6 cm
Weight	120.0 lb / 54.4 kg
