Description

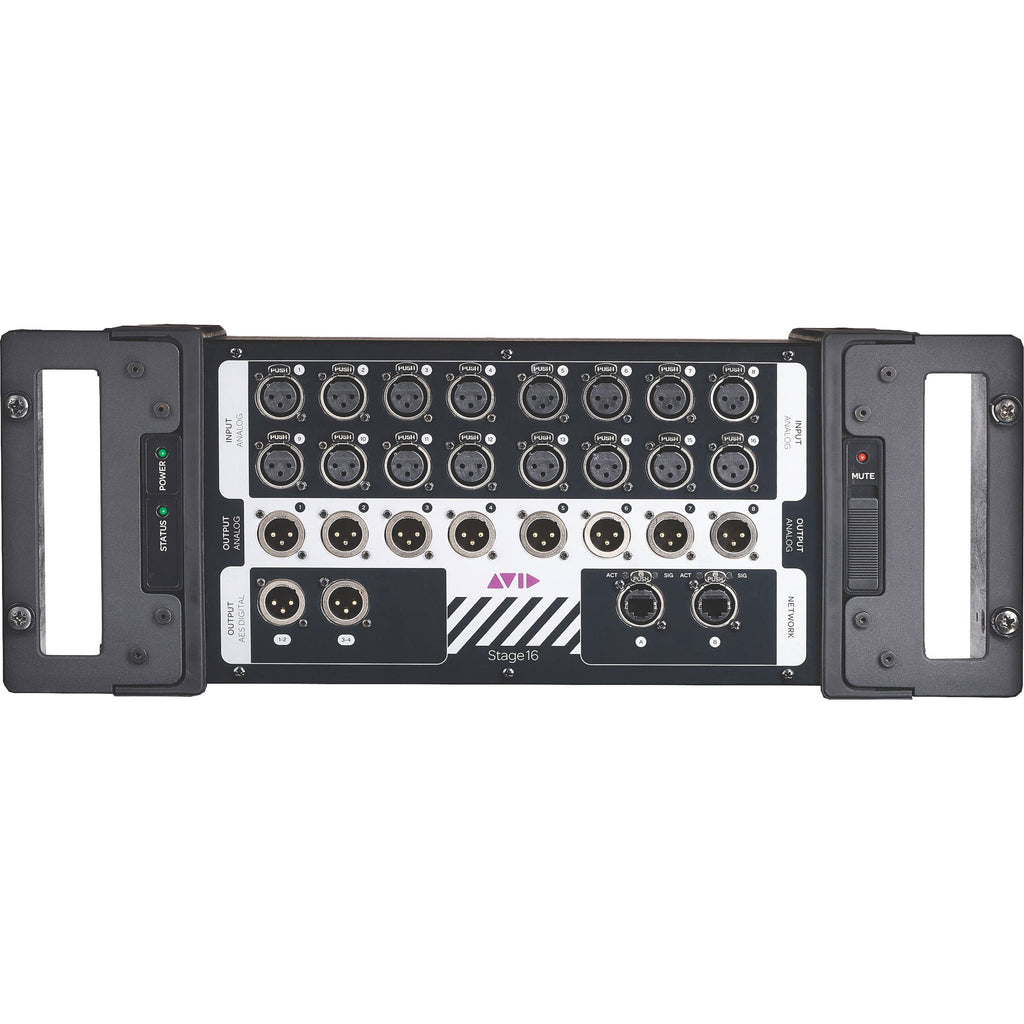

Avid Stage 16 Overview
Connect up to 16 analog inputs to your Venue | S6L system or or expand and distribute I/O across any performance space with the VENUE | Stage 16 Remote I/O Rack, a compact, 4 RU I/O rack ideal for small live productions.
The rack provides 16 analog inputs, 8 analog outputs, and 4 AES digital outputs. Network multiple Stage 16 racks together, up to the maximum number of inputs supported by your chosen E6L engine. Network Stage 16 with one or more Stage 64 or Stage 32 racks to provide more I/O distribution flexibility.
Key Features
- 16 XLR mic inputs/preamps, 8 XLR line outputs
- 4 channels of AES3 output
- 2 Ethernet AVB ports
- Power supply: Single internal PSU
- 4 RU rack
Items Included
- Avid VENUE | Stage 16 Remote I/O Rack
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Avid Stage 16 Specs
Key Specs
| Number of Analog Input Channels |
16
|
| Number of Mic Preamps |
16
|
| Number of Analog Output Channels |
8
|
| Faders & Level Adjustment |
No
|
| Analog Inputs |
16x XLR Mic Input
|
| Analog Outputs |
8x XLR Output
|
| Digital I/O |
2x XLR AES3 Output
2x etherCON (I/O) |
| Rack Mountable |
Yes
|
Mixer
| Number of Analog Input Channels |
16
|
| Number of Mic Preamps |
16
|
| Number of Analog Output Channels |
8
|
| Mix Routing |
0x Send
|
| Presets |
No
|
| Faders & Level Adjustment |
No
|
Signal Processing
| EQ |
No
|
| Graphic EQ |
No
|
Digital Audio
| Sample Rates |
96 kHz
|
Connectivity
| Analog Inputs |
16x XLR Mic Input
|
| Analog Outputs |
8x XLR Output
|
| Digital I/O |
2x XLR AES3 Output
2x etherCON (I/O) |
| MIDI I/O |
No
|
| Expansion Ports |
No
|
Physical
| Rack Mountable |
Yes
|
| Rackmount Size |
4 U (with Included Hardware)
|
| Dimensions |
19 x 6.9 x 8.1" / 483 x 175 x 206 mm
|
| Weight |
15.7 lb / 7.1 kg
|
