Description

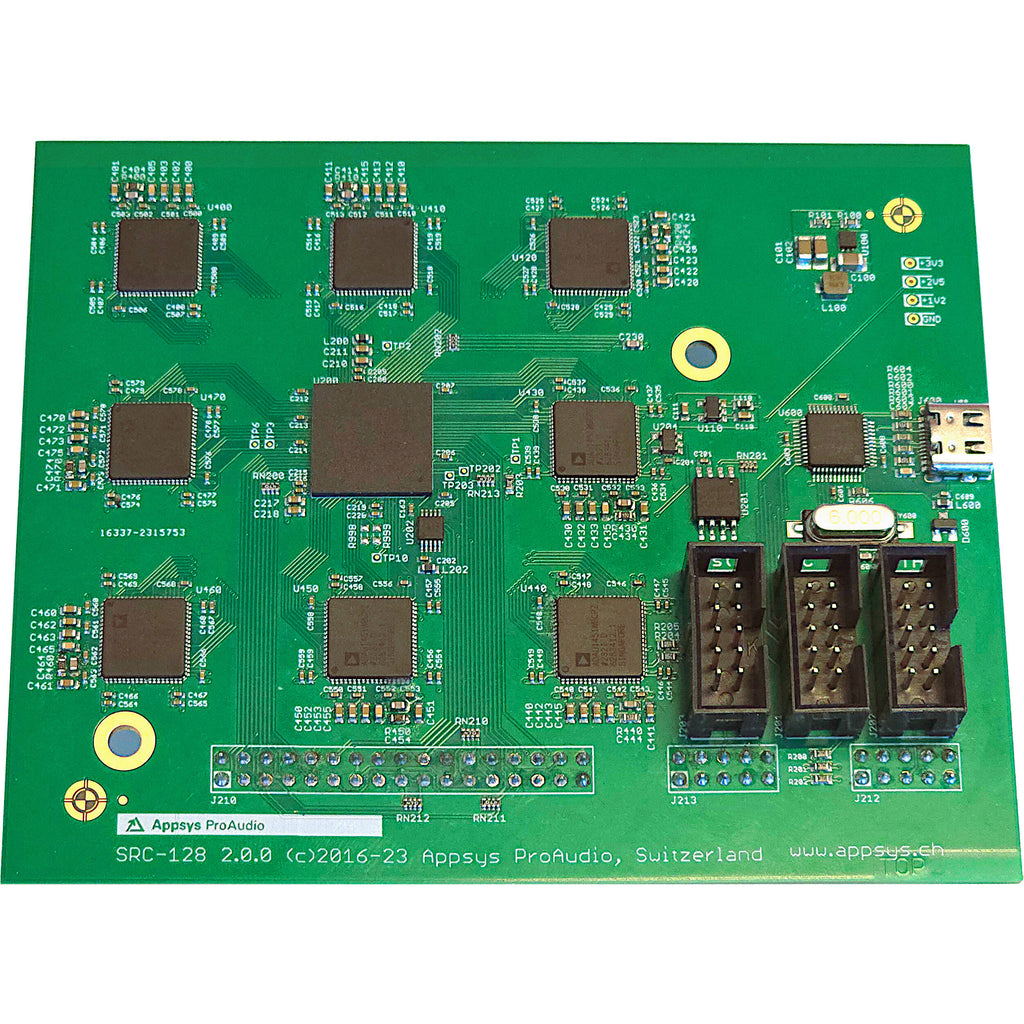

Appsys ProAudio SRC-128 Overview
The Appsys ProAudio SRC-128 Add-On Module facilitates high-density asynchronous sample rate conversion within Multiverter MVR-64 and MVR-mkII platforms. Utilizing true asynchronous methodologies, the SRC-128 enables up to 128 channels of unidirectional or 64x64 channels of bidirectional sample-rate conversion between two arbitrary sample rates and interfaces.
Convert 96 kHz streams into 48 kHz and vice versa, or accept any incoming signal, independent of incoming clock synchronization. The internal add-on architecture preserves the Multiverter's Extension port for supplementary interface expansion, ensuring modular scalability.
At a Glance
- High-performance sample-rate converter for MVR-64 and MVR-mkII Multiverters & THD+N:-134 dB typical/-120 dB max, DNR: 139 dB
- True asynchronous, conversion of up to 128 channels unidirectional or 64x64 bidirectional
- Supports arbitrary sample rates from 32 to 192 kHz
- Flexible channels assignment from 128x0 to 0x128 (in blocks of 16 channels) when both sides run on x1 rate
- Up to 64x64 channels at x2 rates, up to 32x32 channels at x4 rates
- Fully configurable via Multiverter's menu, configuration saved in presets
- Each I/O interface in the Multiverter can be assigned to either clock domain A or B
- Sample-rate conversion is automatically performed for all routings between different clock domains
- Both clocks domains A and B can be clocked from any input or via internal hi-precision clock
- Mounts on internal socket: back extension port remains available
- Field-upgradable firmware
Items Included
- Appsys ProAudio SRC-128 Sample Rate Converter Add-On Module for Multiverter
- 2 x Screw M3x6
- 2 x Hex Standoff M3x11mm (Use with Older MVR-64 Model)
- Limited 2-Year Manufacturer Warranty
Additional Resources
Appsys ProAudio SRC-128 Specs
General
| Compatible Interfaces |
Appsys ProAudio Multiverter MVR-mkII / Multiverter MVR-64 a
|
Connectivity
| Analog Audio I/O |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
Digital Audio
| Sample Rates |
Up to 192 kHz
|
| Bit Depths |
24-Bit
|
