Description
Product Overview

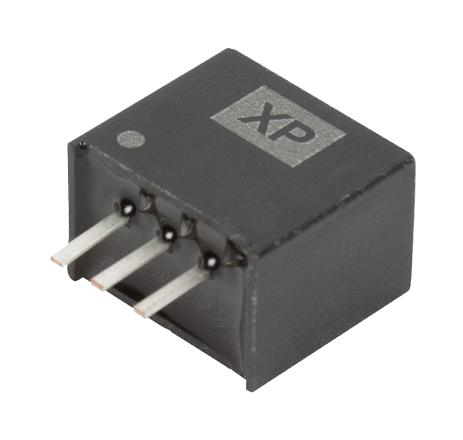

RBT10W24S6V5 is a RBT10W series non-isolated switching regulator. It provides an output current up to 1A, operating from a wide DC input range. Featuring a compact SIP3 design, the RBT10W series offers high efficiency, industrial safety approvals and a wide operating temperature range, ideal for industrial, instrumentation, robotics and technology applications.
- Wide 8V to 36V DC input range
- 6.5V DC output voltage, 93.5% efficiency at min Vin
- 90mVp-p ripple & noise, 470µF maximum capacitive load
- Pin compatible with 78 series regulators
- EN62368-1 safety approval
- Continuous short circuit protection
- Operating temperature range from -40°C to +90°C, 3 year warranty
- 500kHz (full load) switching frequency
- Black plastic, flame retardant UL94V- 0 case
- Dimension is 11.6 x 7.6 x 10.2mm (0.46� x 0.30� x 0.40�)
Product details
Other details
| Brand | XP POWER |
| Part Number | RBT10W24S6V5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
