| ₹ 3257.34 includes GST and import duties. | |
| B2B customers can avail ₹ 496.74 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

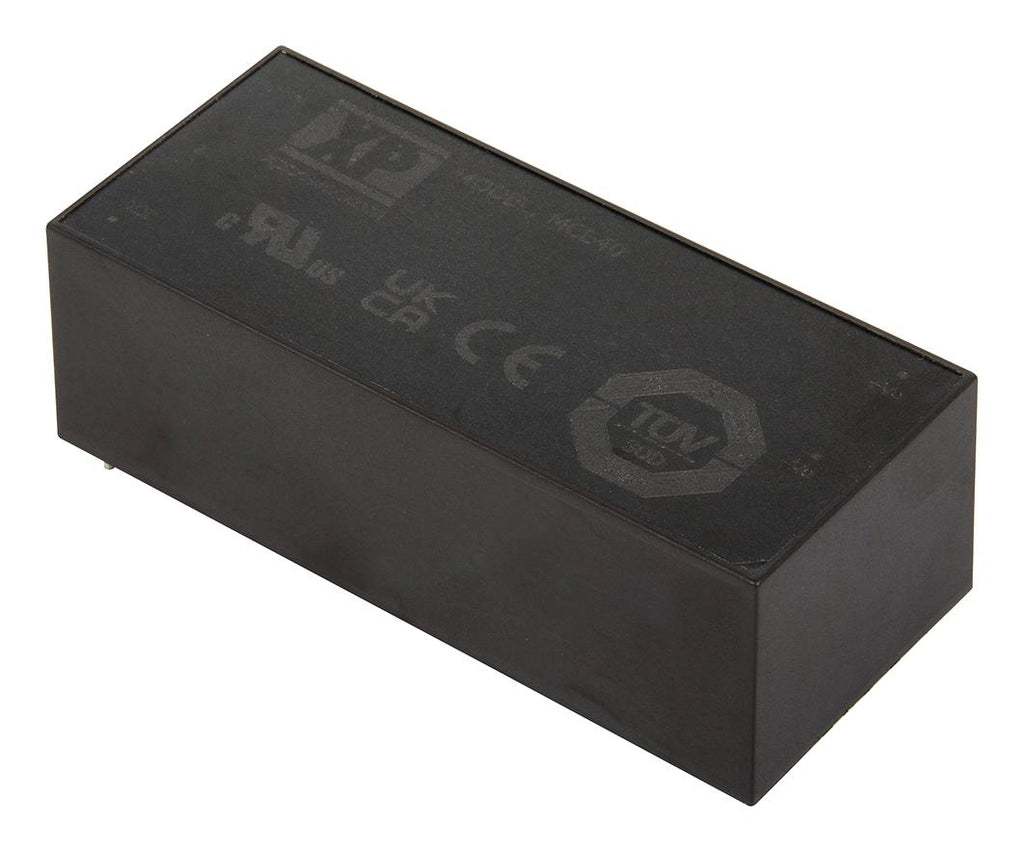

MCE40US24-P is a MCE40 series PCB mount single output AC-DC medical power supply. With world-wide medical safety approvals, class B compliance for conducted and radiated emissions, high efficiency, high reliability, 4KVAC isolation, the MCE series benefits system designers with easy integration into a wide range of BF rated medical applications including imaging, patient treatment, surgical equipment and home healthcare applications.
- Input voltage range from 80 to 264VAC
- Single output voltage of 24.0VDC
- Output current is 1.66A and 40W output power
- High efficiency of 88%
- 4KVAC input to output isolation
- Class B conducted and radiated emissions
- IEC 60601-1 medical safety agency approvals, 2 x MOPP and IEC class II insulation rating
- Overvoltage, overload and short circuit protection
- Operating temperature range from -25°C to +70°C
- Open frame power supply and dimension is 85.0 x 35.1 x 27.7mm
Product details
Other details
| Brand | XP POWER |
| Part Number | MCE40US24-P |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3192.19 |
| 3-5 | ₹ 3159.62 |
| 5-10 | ₹ 3094.47 |
| 10+ | ₹ 3029.33 |
Bulk discount will be automatically applied during checkout based on quantity.
