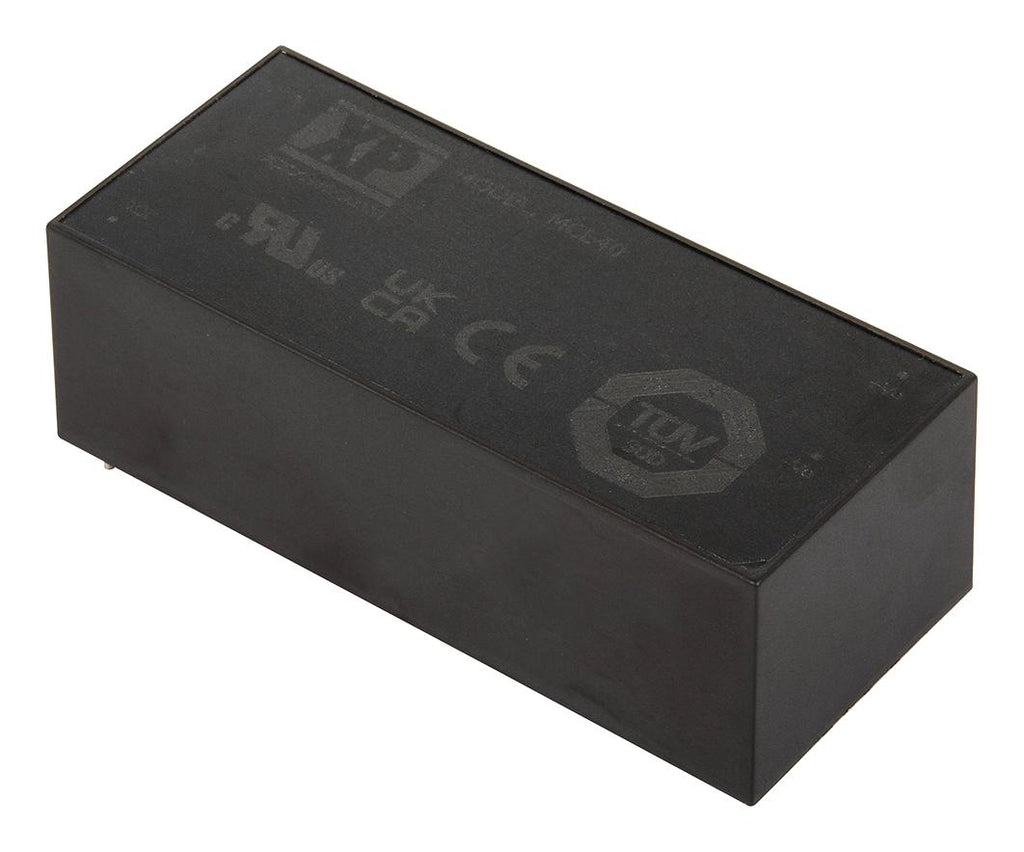

MCE40US15 is a MCE40 series PCB mount single output AC-DC medical power supply. With world-wide medical safety approvals, class B compliance for conducted and radiated emissions, high efficiency, high reliability, 4KVAC isolation, the MCE series benefits system designers with easy integration into a wide range of BF rated medical applications including imaging, patient treatment, surgical equipment and home healthcare applications.
- Input voltage range from 80 to 264VAC
- Single output voltage of 15.0VDC
- Output current is 2.66A and 40W output power
- High efficiency of 87%
- 4KVAC input to output isolation
- Class B conducted and radiated emissions
- IEC 60601-1 medical safety agency approvals, 2 x MOPP and IEC class II insulation rating
- Overvoltage, overload and short circuit protection
- Operating temperature range from -25°C to +70°C
- Encapsulated and dimension is 87.9 x 38.1 x 28.5mm
Product details
| Power Supply Applications:
Medical
|
| No. of Outputs:
1 Output
|
| Output Power Max:
40W
|
| Output Voltage - Output 1:
15VDC
|
| Output Current - Output 1:
2.66A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Power Supply Output Type:
Fixed
|
| Input Voltage VAC:
80V AC to 264V AC
|
| Width:
38.1mm
|
| Height:
28.5mm
|
| Depth:
87.9mm
|
| Product Range:
MCE40 Series
|
Other details
| Brand |
XP POWER |
| Part Number |
MCE40US15 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
