Description
Product Overview

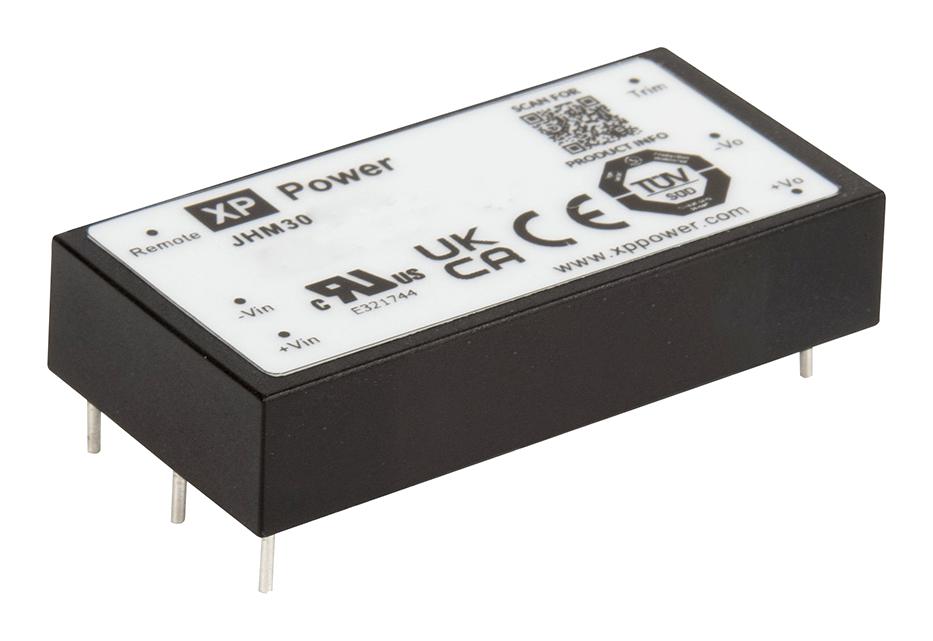

JHM3048S12 is a JHM30 series, 30W, compact, regulated PCB mount medical DC-DC converter. With worldwide medical approvals, 2 x MOPP 4kVAC reinforced isolation and extremely low leakage currents, this series is specifically designed for easy integration into a wide range of BF and CF rated medical applications including imaging, patient monitoring, surgical equipment, patient treatment and dentistry. Application includes healthcare, home healthcare and medical diagnostics. Approvals are ANSI/AAMI ES60601-1 & CSA C22.2, No.60601-1, TUV EN60601-1, CB IEC60601-1.
- 10% trim on single output
- 2:1 input range, 2?A patient leakage current
- Input voltage range from 36 to 75V, 12V output voltage, 2500mA output current
- 88% efficiency (typical values at nominal input)
- Switching frequency is 250KHz typ
- Non conductive black plastic UL94V-0 rated case material
- 3 year warranty
- Dimension is 2.00 x 1.00 x 0.40�
- Operating temperature range from -40°C to +80°C
Product details
Other details
| Brand | XP POWER |
| Part Number | JHM3048S12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
