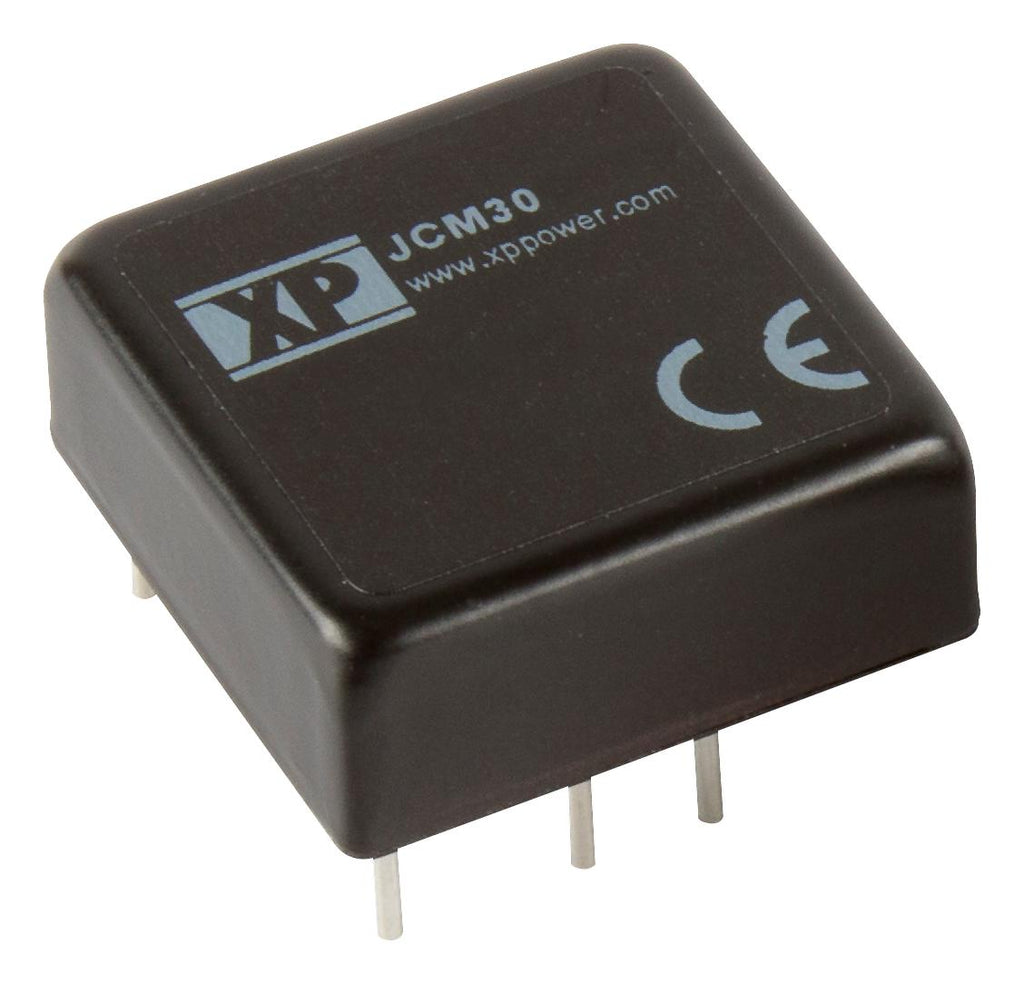

XP Power JCM3024S12 Isolated Through Hole DC/DC Converter ITE 2:1 30 W 1 Output 12 V 2.5 A

With the release of the new JCM30 series, this range now spans from 15 to 30 Watts.  Packaged in an industry leading 1" x 1" footprint, the range offers single and dual outputs with a power density of 73W/in³. They have a 2:1 wide input of nominal 12V, 24V or 48VDC in an industry standard metal case package similar to the JCM15 / 20. Single output models are available with 3.3V, 5V, 12V and 15VDC while duals are offered with ±12V and ±15VDC out.  A ±10% output adjustment is available for single output models by using a trim resistor.  The series provides 1600VDC isolation and a tightly regulated output with ±0.5% maximum for line and load (±1% load regulation for duals). With external components, it is possible to meet Class A conducted and radiated emissions. The wide operating temperature range is from -40°C to 100°C, with derating above 55°C. With the optional heat sink the derating is increased to 60°C with 50% load available up to 85°C. Remote on/off is standard on all models.

• Single and Dual Outputs
• 2:1 Input Range
• 1" x 1" Footprint
• Operating Temperature -40°C to 100°C
• Full Load at 55°C Ambient
• 1600VDC Isolation
• Output Trim ±10%
• Remote On/Off
• See Technical Note for information about XP Power's plans for the UKCA Marking

Applications

Power Management, Industrial

Other details

Brand	XP POWER
Part Number	JCM3024S12
Quantity	Each
Technical Data Sheet EN
Technical Notes & Articles EN
Certificate of Conformity EN
