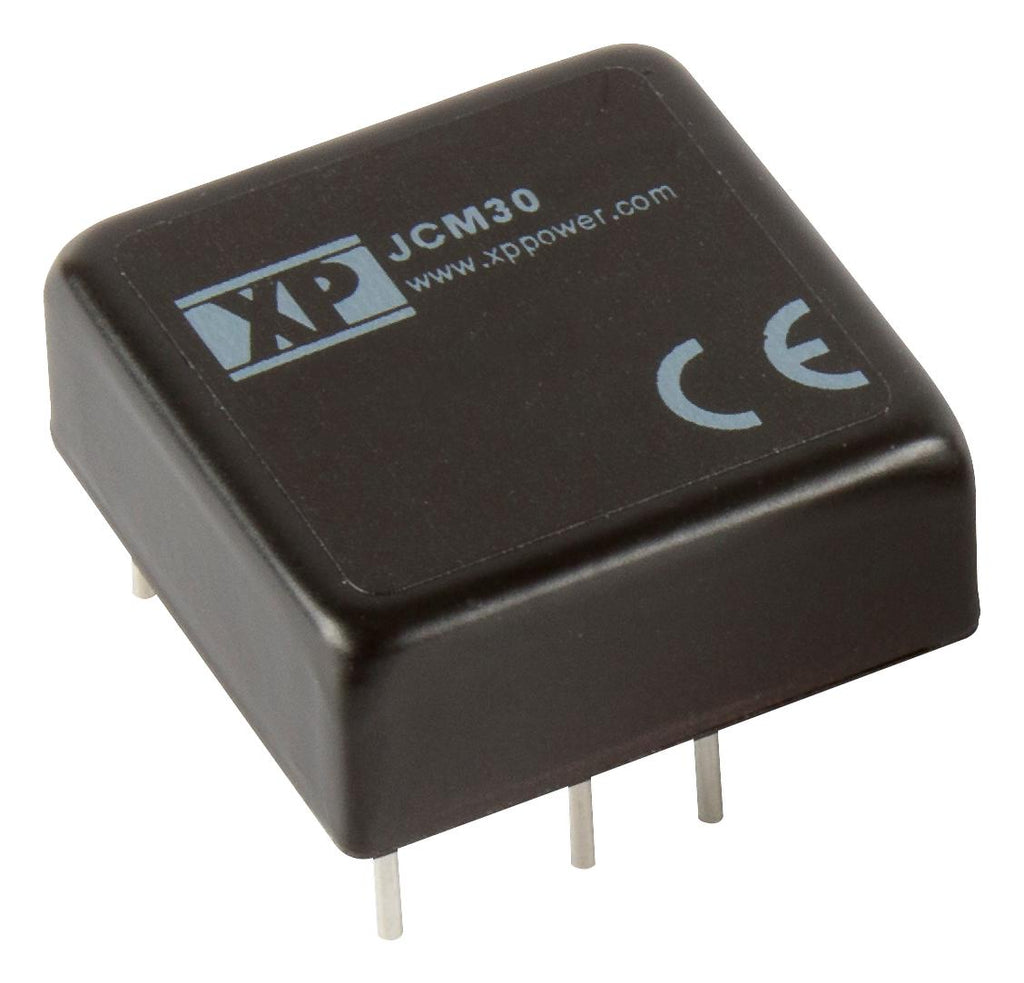

XP POWER JCM3012S05 Isolated Through Hole DC/DC Converter, ITE, DIP, 2:1, 30 W, 1 Output, 5 V

With the release of the new JCM30 series, this range now spans from 15 to 30 Watts.  Packaged in an industry leading 1" x 1" footprint, the range offers single and dual outputs with a power density of 73W/in³. They have a 2:1 wide input of nominal 12V, 24V or 48VDC in an industry standard metal case package similar to the JCM15 / 20. Single output models are available with 3.3V, 5V, 12V and 15VDC while duals are offered with ±12V and ±15VDC out.  A ±10% output adjustment is available for single output models by using a trim resistor.  The series provides 1600VDC isolation and a tightly regulated output with ±0.5% maximum for line and load (±1% load regulation for duals). With external components, it is possible to meet Class A conducted and radiated emissions. The wide operating temperature range is from -40°C to 100°C, with derating above 55°C. With the optional heat sink the derating is increased to 60°C with 50% load available up to 85°C. Remote on/off is standard on all models.

• Single and Dual Outputs
• 2:1 Input Range
• 1" x 1" Footprint
• Operating Temperature -40°C to 100°C
• Full Load at 55°C Ambient
• 1600VDC Isolation
• Output Trim ±10%
• Remote On/Off

Applications

Power Management, Industrial
