| ₹ 2106.01 includes GST and import duties. | |
| B2B customers can avail ₹ 321.17 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
- Low cost
- Fully regulated outputs
- DIP-24 Package
- Operating temperature range -40?C to +100?C
Power Management, DC/DC Converters
Product details
| Power Supply Approvals | ITE |
| No. of Outputs | 2 Output |
| Output Power Max | 2W |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 1 | 83mA |
| Output Voltage - Output 2 | -12V |
| Output Current - Output 2 | 83mA |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | JAH Series |
| Input Voltage DC Min | 10.8V |
| Input Voltage DC Max | 13.2V |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Type | DIP |
| DC / DC Converter Mounting | Through Hole |

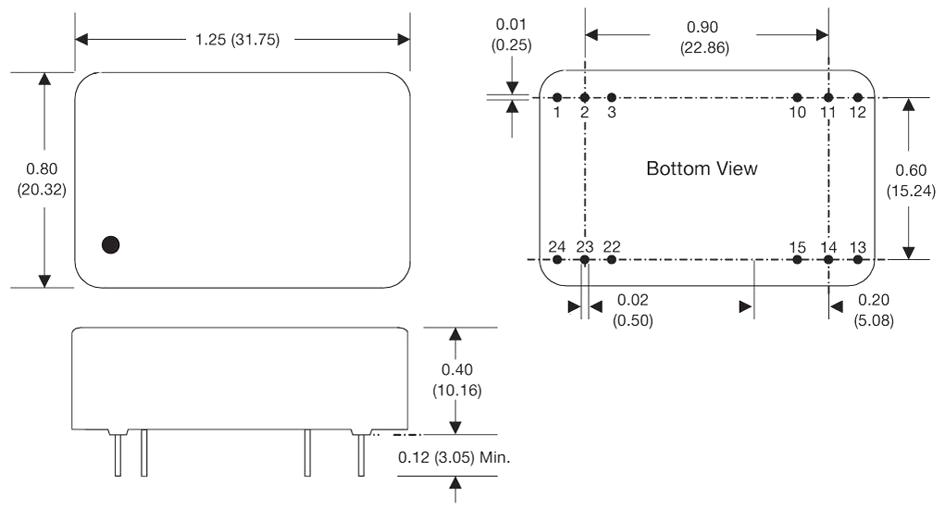

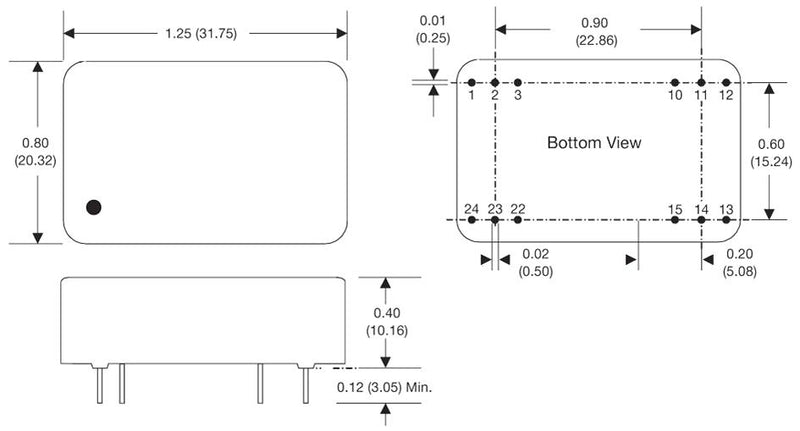

| Width | 20.32mm |
| Height | 10.16mm |
| Depth | 31.75mm |
Other details
| Brand | XP POWER |
| Part Number | JAH0212D12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2063.89 |
| 3-5 | ₹ 2042.83 |
| 5-10 | ₹ 2000.71 |
| 10+ | ₹ 1958.59 |
Bulk discount will be automatically applied during checkout based on quantity.
