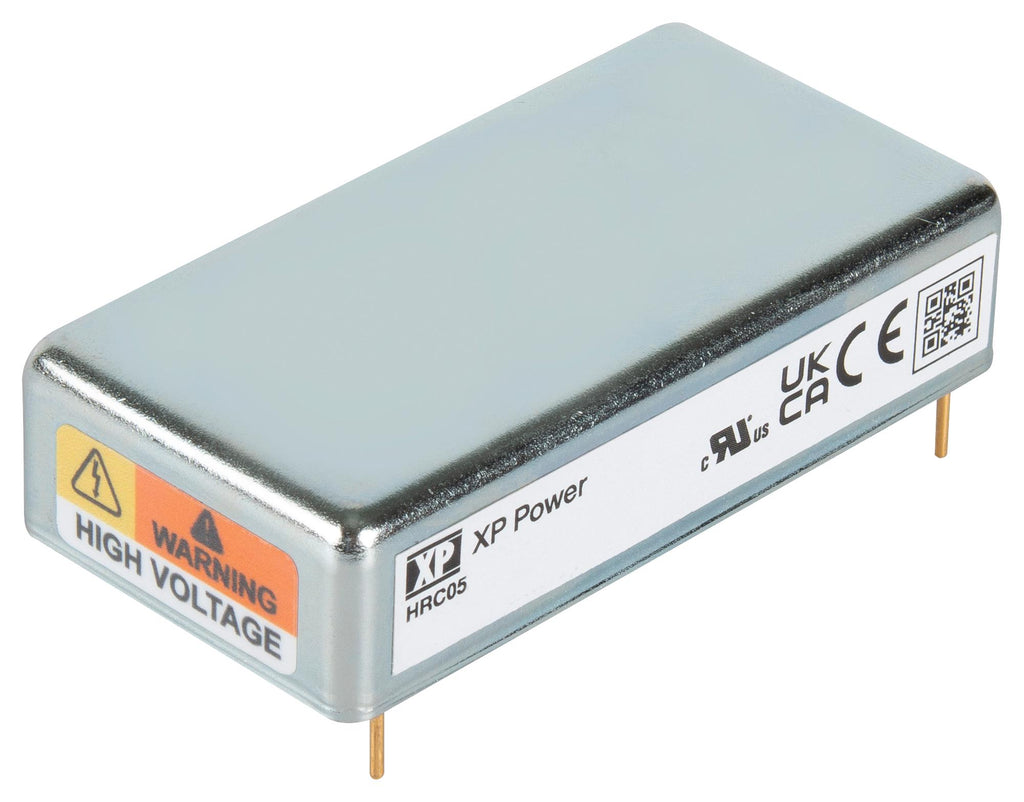

XP POWER HRC0524S600P Non Isolated POL DC/DC Converter, ITE & Laboratory Equipment, 5 W, 0 V, 600 V, 8.33 mA

HRC0524S600P is a HRC05 series regulated 5W high voltage DC-DC converter. It provides fully adjustable output voltage with built in short circuit and overload protection, in a compact PCB-mount package. HRC05�s precise load and line regulation ensures reliable, stable and accurate power delivery, and its low ripple is ideal for critical, noise-sensitive applications. HRC05 features voltage and current monitoring and 0 to 100% voltage control for increased safety, flexibility and enhanced efficiency. Its advanced functionality, technical specifications, wide operating temperature, safety approvals and compact package allow easy integration into a wide range of high voltage applications in analytical instruments, medical devices and semiconductor fabrication equipment. Applications include mass spectrometry, electrophoresis, electrostatic chuck, high voltage bias, detectors and scanning electron microscopy.

• 0 to +600V output voltage
• 24VDC input (22 to 30V)
• Voltage and current monitor output, on-board +5V reference
• Load and line regulation <0.01%, low ripple <0.01%
• Short circuit, arc and overload protections
• Switching frequency of 100KHz at maximum output voltage, full load
• UL/CSA/IEC/EN62368-1, UL/CSA/IEC/EN61010-1 certified
• 5-sided metal case, internally grounded, RTV vacuum encapsulation, UL94V-0 rated
• 3 year warranty
• Operating temperature range from -40°C to +70°C, dimension is 64.8 x 33.0 x 15.2mm
