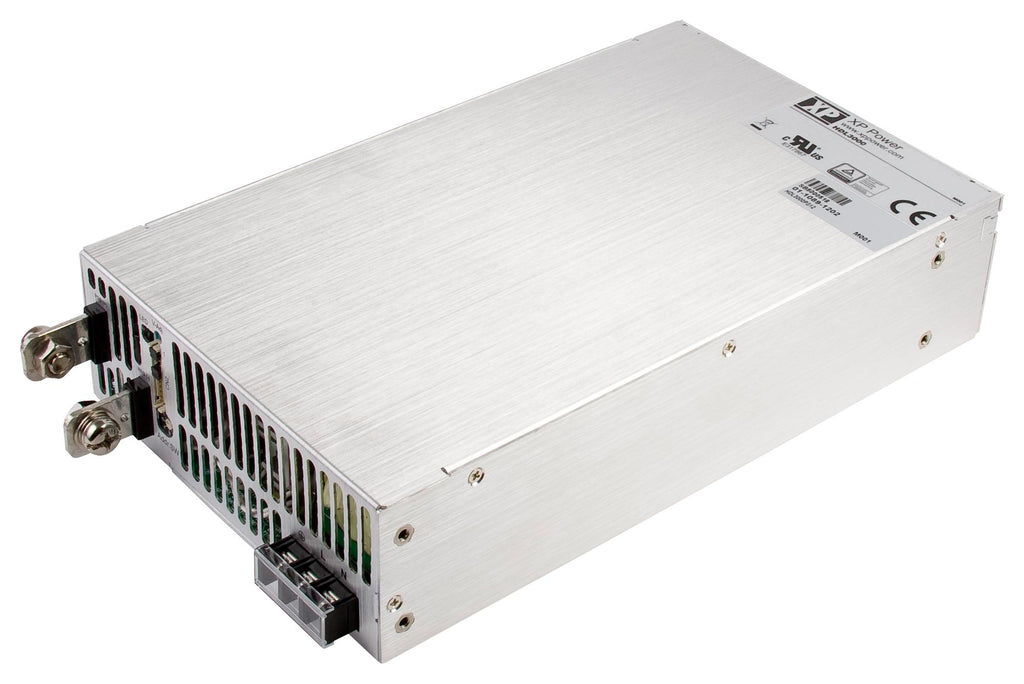

The HDL3000HV series offers users both output voltage and output current programming (0 - 105%) via resistance, voltage or digital bus in a very high efficiency, high power density 3 kW chassis mount package. Measuring just 6.69" x 2.52" x 11.02", the HDL3000 also features active current sharing, built-in ORing diode, remote on/off and a power OK signal. The standby output is available whenever the mains supply is present and can be user selected as either 5 V at 0.5 A or 9V at 0.3 A.
- High Efficiency to 92%
- High power density
- Programmable Output Voltage (0-105%)
- Programmable Output Current (0-105%)
- I2C, RS485 & RS232 interfaces
- Parallel operation
- Fully featured signals & controls
- 3 Year Warranty
- See Technical Note for information about XP Power's plans for the UKCA Marking
Other details
| Brand |
XP POWER |
| Part Number |
HDL3000PS300 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Technical Notes & Articles EN |
|
| Certificate of Conformity EN |
|
