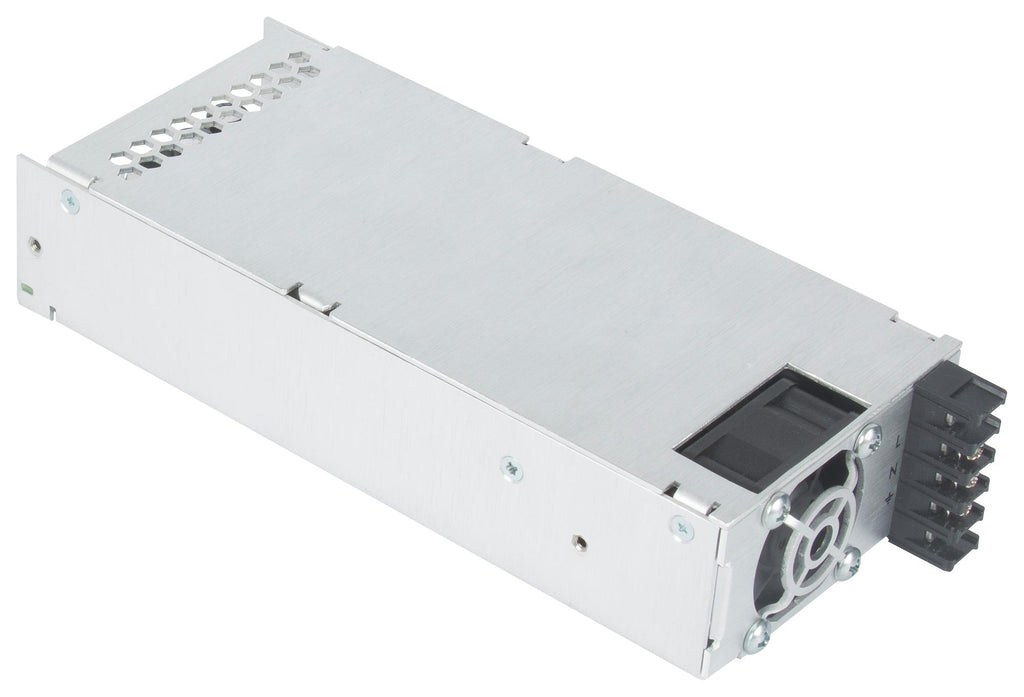

The GCU500 is packaged in a 3.3" x 6.5" x 1.55" package and achieves EN55011/32 Level B conducted emissions compliance whilst maintaining very low earth leakage currents, making it suitable for a wide range of 1U and other industrial, IT and medical applications
- 250 W Convection & 500 W Forced-cooled Ratings
- 5 V Standby Output
- Universal 80 - 264 VAC Input
- IT & Medical Safety Approvals
- -40° C to +70° C Operation
- Power Fail & Remote On/Off
- Class B Emissions
- See Technical Note for information about XP Power's plans for the UKCA Marking
Product details
| Power Supply Applications:
ITE & Medical
|
| No. of Outputs:
1Outputs
|
| Output Power Max:
500W
|
| Output Voltage - Output 1:
24VDC
|
| Output Current - Output 1:
20.8A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
80V AC to 264V AC
|
| Power Supply Output Type:
Adjustable, Fixed
|
| Product Range:
GCU Series
|
Other details
| Brand |
XP POWER |
| Part Number |
GCU500PS24-EF |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
