Description

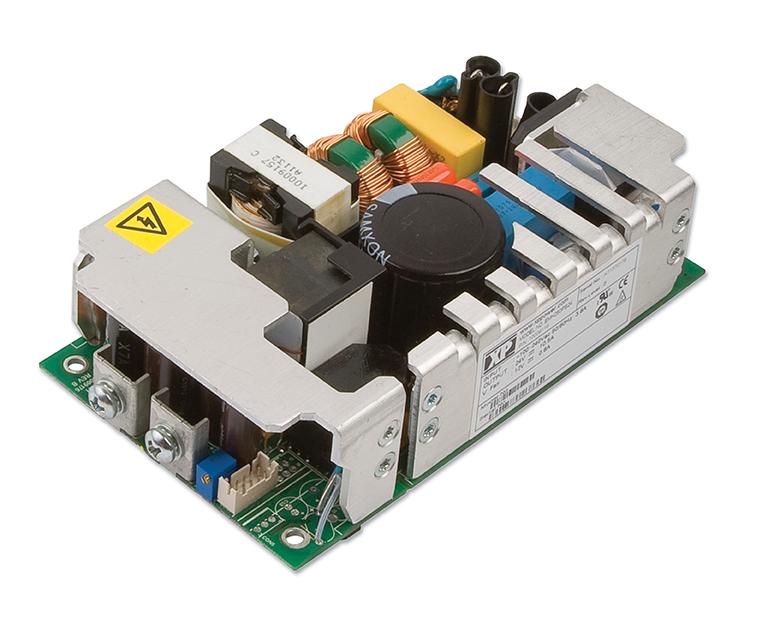

The EMH series of ultra compact high power density supplies deliver 250W and 350W within the industry standard 3" x 5" (76mm x 127mm) footprint. They achieve this very high power density with a minimal 12 CFM forced air requirement and a profile of just 1.4" (36mm) making them suitable for 1U and a host of other applications. All models feature a main output and 12V/0.6A fan supply output along with IEC60950 (IT) and IEC60601 BF (Medical) family safety approvals, thus including patient contact equipment in the wide range of possible applications. The EMH350 has a 5V/2A standby rail and can be supplied with a range of optional analogue and digital, PMBus compatible signals as well as a variable speed fan & cover. The EMH350D models have built in Oring diodes for use in redundant applications.
- Industry Standard 3" x 5" x 1.43" Format
- IT & Medical (BF) Approvals
- 80V to 275VAC Operation
- 5V Standby (EMH350)
- See Technical Note for information about XP Power's plans for the UKCA Marking
Applications
Power Management, Industrial, Medical
Product details
| Power Supply Applications: ITE & Medical |
| No. of Outputs: 1 Output |
| Power Rating (Forced Cooling): 252W @ 12CFM |
| Power Rating (Convection Cooling): - |
| Input Voltage VAC: 80V AC to 275V AC |
| Power Supply Output Type: Adjustable, Fixed |
| Output Voltage - Output 1: 12VDC |
| Output Current - Output 1: 21A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Product Range: EMH Series |
Other details
| Brand | XP POWER |
| Part Number | EMH250PS12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
