| ₹ 4408.61 includes GST and import duties. | |
| B2B customers can avail ₹ 672.31 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

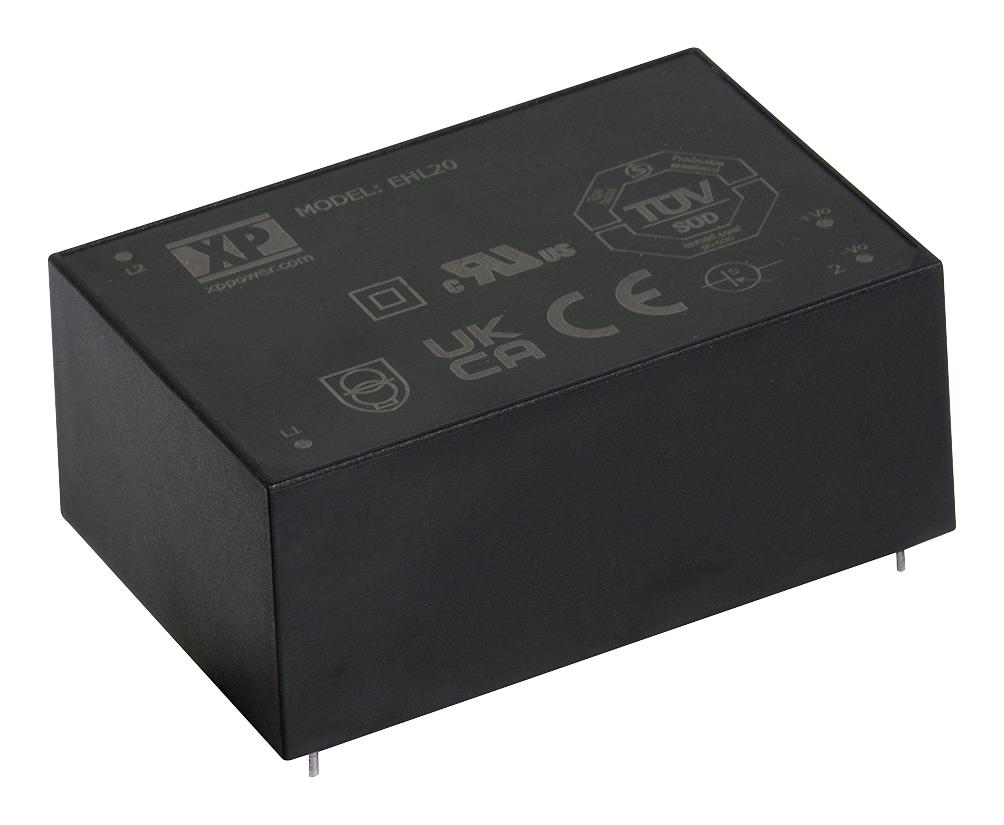

EHL20US05 is an EHL20 series PCB mount single output AC to DC power supply. This high power-density power supply features a wide 85-528VAC input, specifically designed for phase-to-phase operation in a 480VAC system. The EHL20 series also offers OVC III compliance, Class II construction, worldwide industrial and household safety approvals, making it suitable for a wide range of industrial applications and control systems in commercial and residential buildings. Applications includes industrial electronics & robotics, security, 3 phase power supplies.
- 5VDC output voltage, 4A output current, 20W output power
- 82% typical efficiency at 230VAC and full load
- Phase to neutral or phase to phase operation
- IEC Class II construction
- Industrial and household safety approvals
- Operating temperature range from -25°C to +70°C
- Encapsulated version, 69.9 x 47.0 x 29.2mm dimension
- IEC62368-1, EN62368-1, UL62368-1, IEC60335-1 safety approvals
- Overvoltage protection, overload protection, short circuit protection
- 4000VAC input to output isolation, 80KHz maximum switching frequency
Product details
Other details
| Brand | XP POWER |
| Part Number | EHL20US05 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4320.44 |
| 3-5 | ₹ 4276.35 |
| 5-10 | ₹ 4188.18 |
| 10+ | ₹ 4100.01 |
Bulk discount will be automatically applied during checkout based on quantity.
