| ₹ 2309.14 includes GST and import duties. | |
| B2B customers can avail ₹ 352.14 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

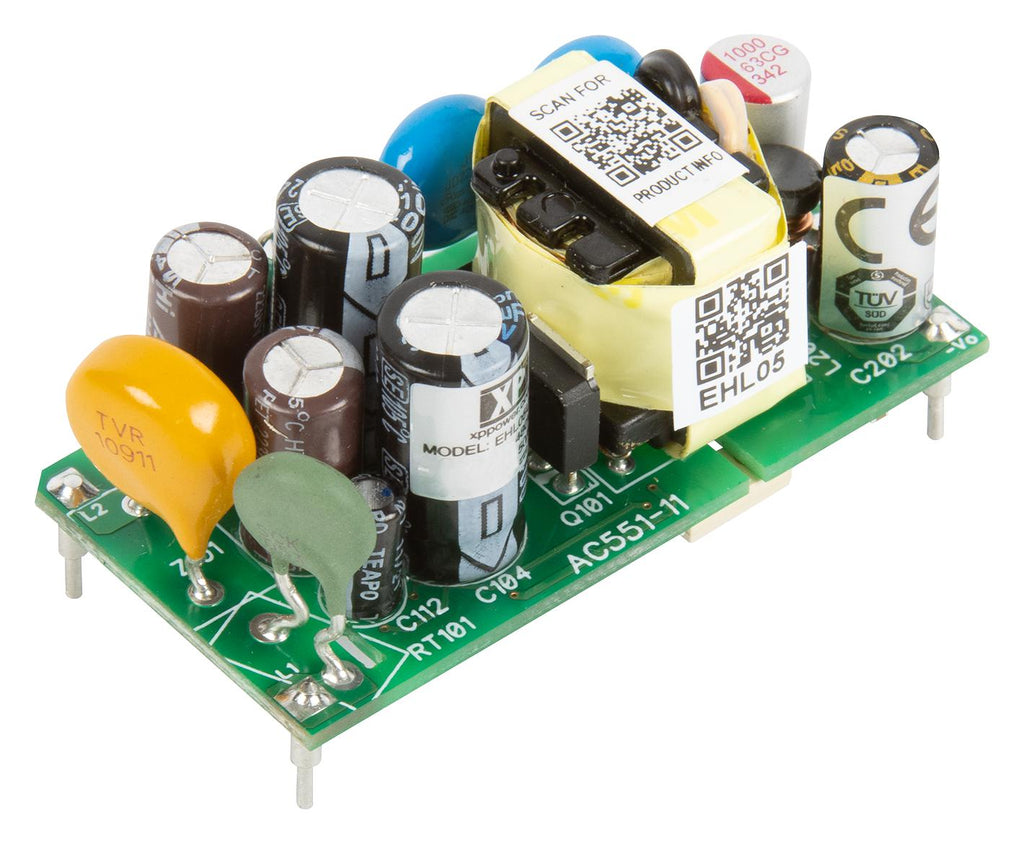

EHL05US09-P is an EHL05 series PCB mount single output power supply that delivers 5W of power and offers single output voltage. This high power-density power supply features a wide 85 to 528VAC input, specifically designed for phase-to-phase operation in a 480VAC system. The EHL05 series also offers OVC III compliance, Class II construction, worldwide industrial and household safety approvals, making it suitable for a wide range of industrial applications and control systems in commercial and residential buildings, security and 3 phase power supplies.
- 9VDC output voltage, 0.56A output current
- 83% typical efficiency at 115VAC and full load
- Phase to neutral or phase to phase operation
- IEC Class II construction
- Industrial and household safety approvals
- Operating temperature range from -40°C to +80°C
- Open frame version, 49.3 x 25.0 x 22.4mm dimension
- IEC62368-1, EN62368-1, UL62368-1, IEC60335-1 safety approvals
- Overvoltage protection, overload protection, short circuit protection
- 4000VAC input to output isolation, 75KHz maximum switching frequency (varies with load)
Product details
Other details
| Brand | XP POWER |
| Part Number | EHL05US09-P |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2262.96 |
| 3-5 | ₹ 2239.87 |
| 5-10 | ₹ 2193.68 |
| 10+ | ₹ 2147.5 |
Bulk discount will be automatically applied during checkout based on quantity.
