Description
Product Overview

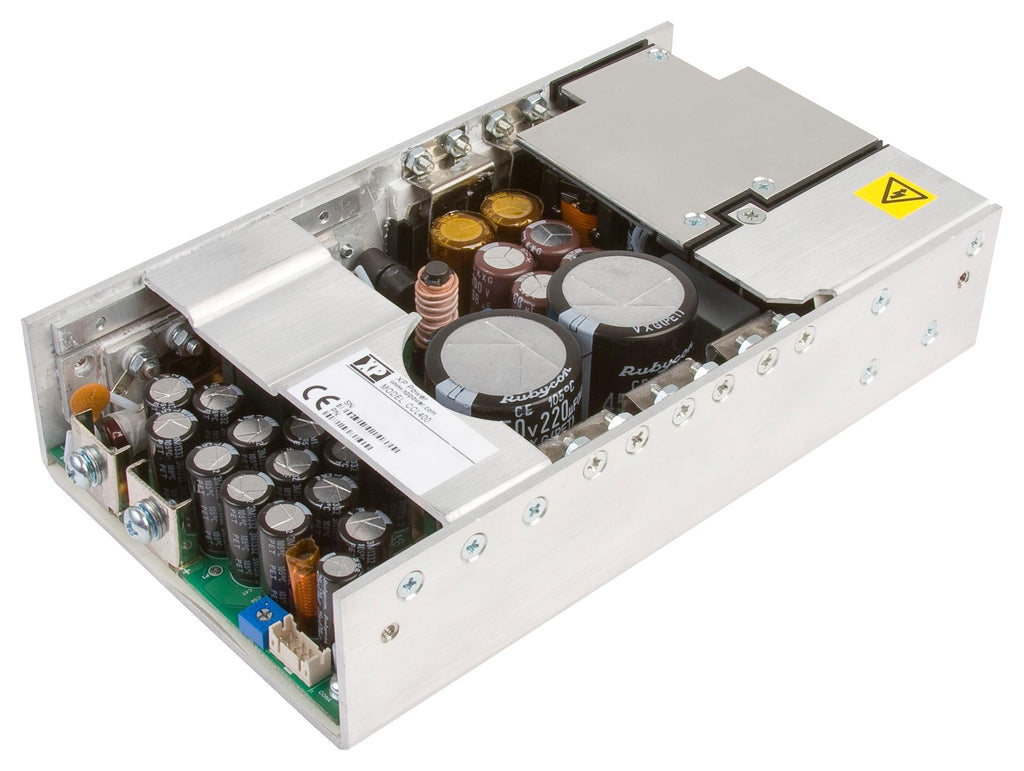

CCL400 series is an AC-DC power supply. Approved for IT and Medical and with a feature set including a 5V standby output, <lt/>0.5W standby power, power fail and inhibit signals the CCL400 is ideal for a wide range of applications where fan cooling is not desirable. Safety approvals are IEC60950-1:2005, IEC62368-1:2014, IEC60601-1 Ed 3.1, UL60950-1 (2014), CSA 22.2 No.60950-1-1:08, UL62368-1 (2014), CSA22.2 No.62368-1-14, ANSI/AAMI ES60601-1 & CSA C22.2, No.60601-1:08, EN60950-1:2006, EN62368-1: 2014, EN60601-1/A12:2006.
- Conduction cooling for higher ambient operation
- Power fail and inhibit signals, F10.0 A 250 V internal fuse in both AC lines input protection
- 3 year warranty
- Dimension is 178 x 100 x 40mm
- Output voltage is 12V (V1)
- Output current is 33.3A (V1)
- Standby supply is 5V/0.5A (V2)
- Output power is 400W, input frequency is 47 to 63Hz
- Input voltage is 85-264VAC, derate output power <lt/>100VAC convection cooling/<lt/>90VAC conduction cooling
- Operating temperature is -40 to 70°C
Product details
Other details
| Brand | XP POWER |
| Part Number | CCL400PS12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 44464.63 |
| 3-5 | ₹ 44010.91 |
| 5-10 | ₹ 43103.47 |
| 10+ | ₹ 42196.03 |
Bulk discount will be automatically applied during checkout based on quantity.
