Description
Product Overview

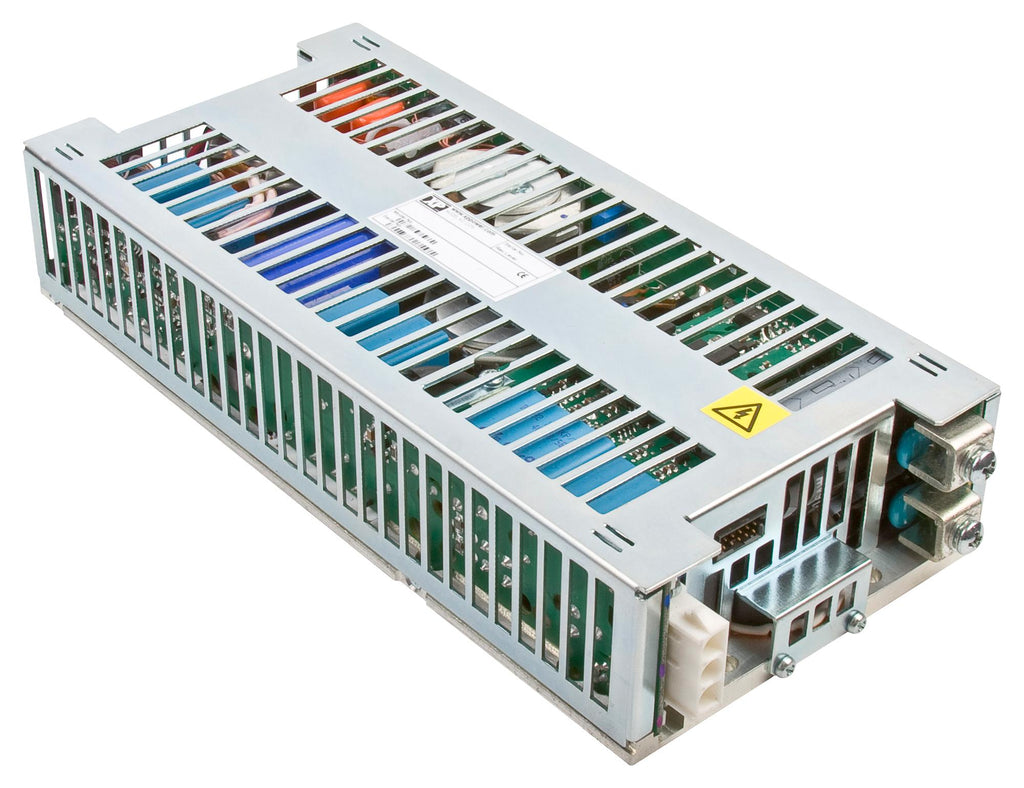

CCH600 series is baseplate cooled, enclosed, chassis mount AC-DC power supply. A rugged, baseplate cooled AC-DC power supply in an enclosed chassis mount case with industrial and MIL-STD 461E EMC compliance. Features include a 5V 0.5A standby output, current sharing and remote monitoring for over temperature and power fail, an inhibit function also allows remote switching to control the output on/off. The baseplate cooling enables the CCH600 to operate in conditions requiring a sealed enclosure with the heat transferred out through the equipment casing. Safety approvals are IEC60950-1 CB report, UL60950-1, EN60950-1, IEC62368-1, EN62368-1.
- 3 year warranty
- Robustly protected for overtemperature, overvoltage, overload and short circuit
- Output power is 603W
- Output voltage is 48VDC
- Output current is 12.5A
- Input voltage is 90-264VAC
- Input frequency is 47-400Hz (safety approvals cover frequency 47-63Hz)
- Continuous, approximately constant current short circuit protection
- Efficiency is 89% typical
- Operating temperature is -40?C to +85?C baseplate
Product details
Other details
| Brand | XP POWER |
| Part Number | CCH600PS48 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 83137.8 |
| 3-5 | ₹ 82289.46 |
| 5-10 | ₹ 80592.77 |
| 10+ | ₹ 78896.08 |
Bulk discount will be automatically applied during checkout based on quantity.
