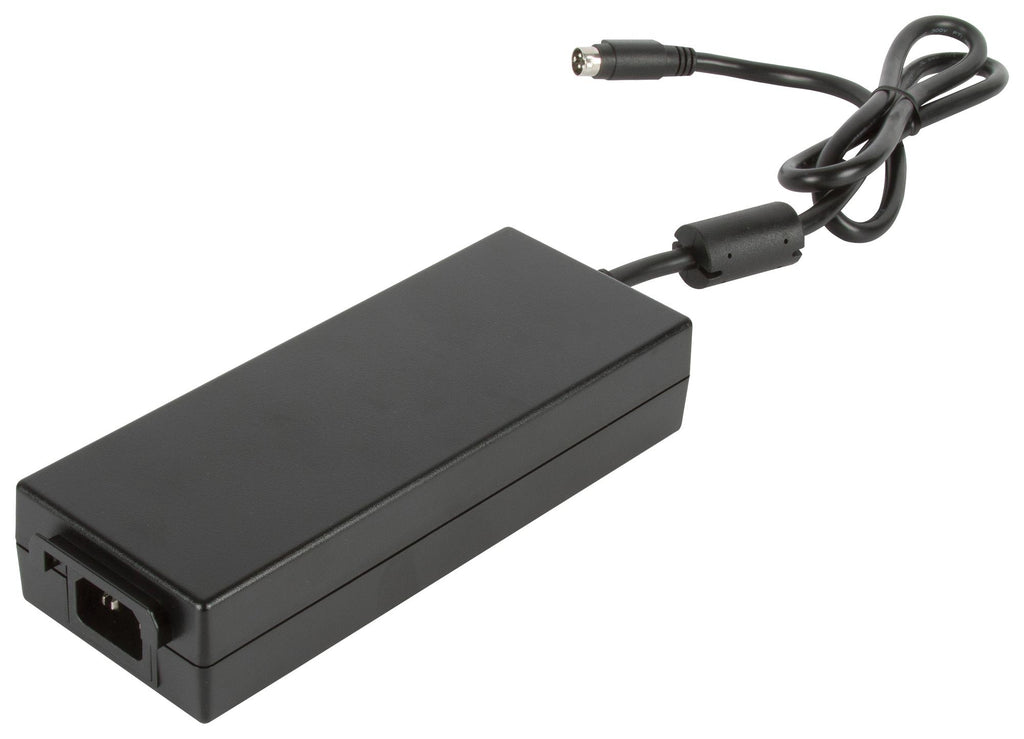

The ALM150 series of medical external power supplies is fully approved to international medical and IT safety standards. It has been designed with very high efficiency and low standby power, enabling it to meet the latest environmental legislation. The unit has a fully sealed enclosure complying with IP32 and a smooth surface finish making it easier to wipe down in a clinical setting.
- Energy efficiency level VI and EU CoC tier 2 compliant
- Less than 0.15W standby power
- 0°C to 60°C operation
- Low earth leakage current
- Dimension is 7.323" x 2.843" x 1.496" (186.0 x 72.0 x 38.0mm)
Applications
Medical
Product details
| Power Supply Approvals |
ITE & Medical |
| No. of Outputs |
1 Output |
| Output Power Max |
150W |
| Output Voltage - Output 1 |
12V |
| Output Current - Output 1 |
12.5A |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Connector |
4 Way DIN |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Input Voltage VAC |
80V AC to 264V AC |
| Product Range |
ALM Series |
| Plug Type |
Mains Plug Sold Separately |
Other details
| Brand |
XP POWER |
| Part Number |
ALM150PS12 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
