| ₹ 14361.25 includes GST and import duties. | |
| B2B customers can avail ₹ 2190.09 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

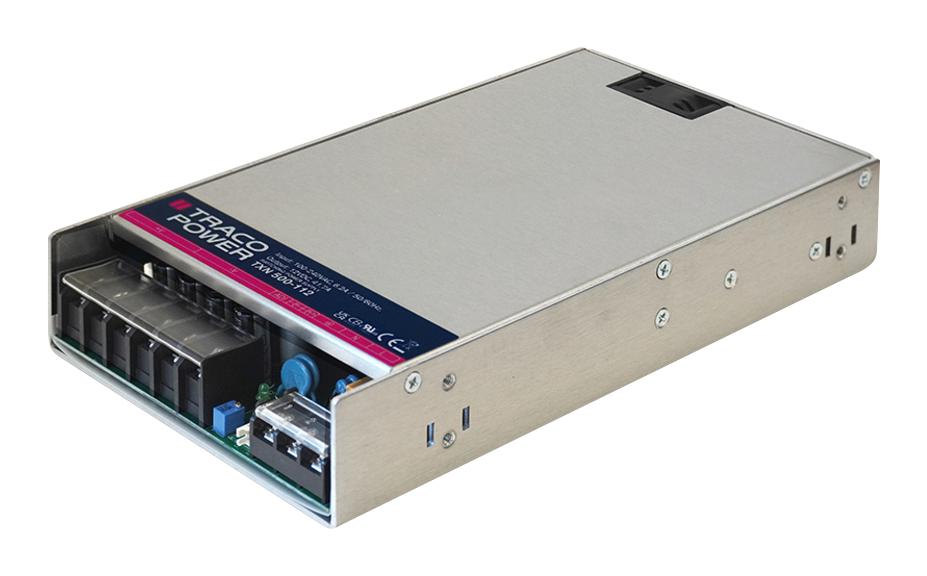

TXN 500-148 is a TXN 500 series AC/DC industrial power supply. It is a cost efficient, metal enclosed AC/DC power supply and is designed for industrial applications. With a low-profile metal case and screw terminal block connection, it is easy to install in any equipment. Active PFC (>0.9), internal EMC filter, high IO-isolation and wide temperature range qualify TXN 500 series for numerous industrial applications. It has universal input (90-264V AC) and complies with the latest industrial standard IEC/EN/UL 62368-1, European EMC standards and the Low Voltage Directive (LVD).
- 500W maximum output power
- 48V DC (43.2 - 50.4V DC) nominal output voltage (adjustable)
- 10,500mA maximum output current, 93% typical efficiency
- I/O reinforced isolation of 3000V AC
- 55 to 250kHz (PFM) switching frequency
- Internal EN 55032 class B filter
- Short circuit, overvoltage and overload protection
- IEC/EN/UL 62368-1 safety approvals, 3-year product warranty
- Operating temperature range from �30°C to 70°C
- Metal housing, chassis mount
Product details
Other details
| Brand | TRACO POWER |
| Part Number | TXN 500-148 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14074.03 |
| 3-5 | ₹ 13930.41 |
| 5-10 | ₹ 13643.19 |
| 10+ | ₹ 13355.96 |
Bulk discount will be automatically applied during checkout based on quantity.
