Description
Product Overview

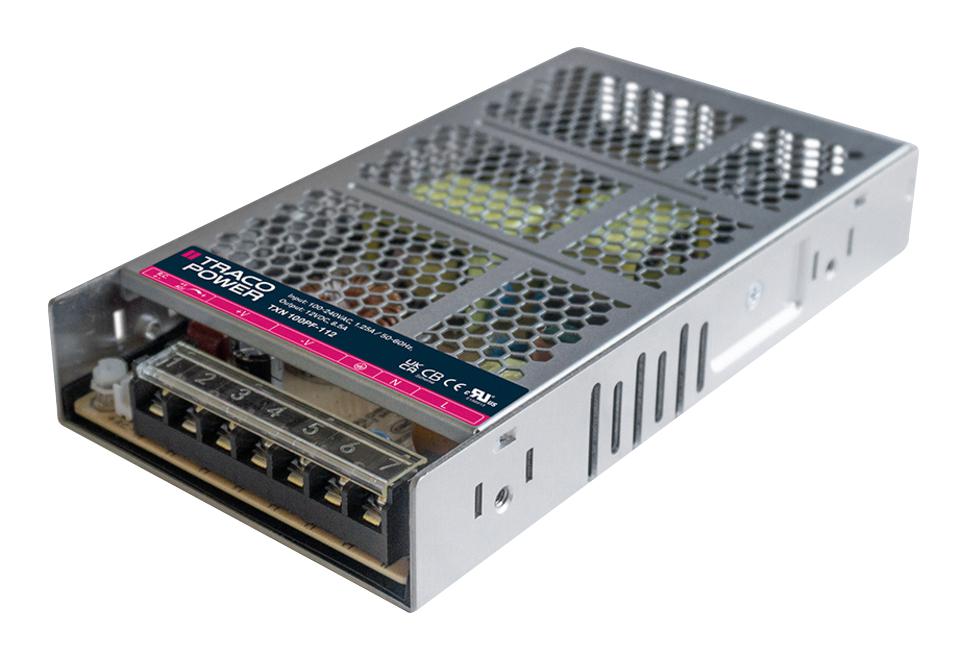

TXN 100PF-148 is a TXN 100PF series, 100Watt AC/DC power supply. It is a cost efficient, metal enclosed AC/DC power supply and is designed for industrial applications. With a low-profile metal case and screw terminal block connection, it is easy to install in any equipment. Active PFC (>0.9), internal EMC filter, high IO-isolation and wide temperature range qualify TXN 100F series for numerous industrial applications. It has universal input (90-264V AC) and complies with the latest industrial standard IEC/EN/UL 62368-1, European EMC standards and the Low Voltage Directive (LVD).
- 48V DC (43.2 - 52.8V DC) output voltage nominal (adjustable)
- 2,100mA maximum output current
- 88% typical efficiency
- I/O reinforced isolation of 3000V AC
- Internal EN 55032 class B filter
- Operating temperature range from -30°C to 70°C
- Short circuit, overvoltage and overload protection, remote ON/OFF function
- Metal housing (aluminium chassis)
- IP 20 (acc. IEC 60529) case ingress protection
- 3-year product warranty
Product details
Other details
| Brand | TRACO POWER |
| Part Number | TXN 100PF-148 |
| Quantity | Each |
| Technical Data Sheet EN |  |
