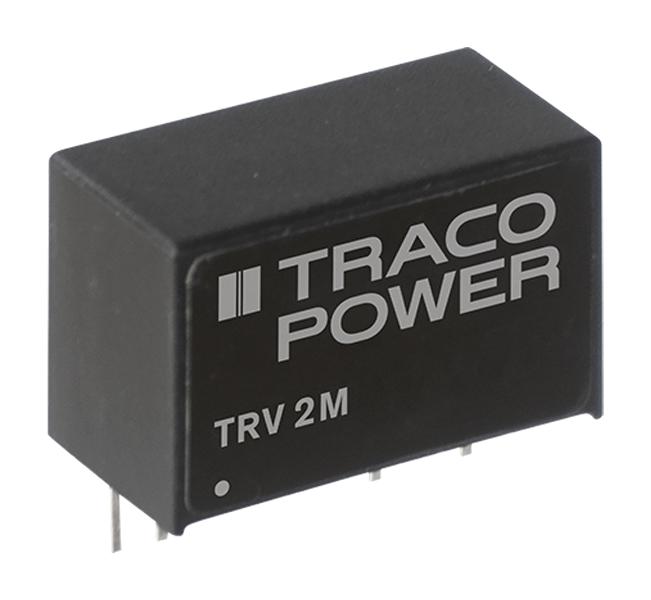

TRACO POWER TRV 2-0510M Isolated Through Hole DC/DC Converter, ITE & Medical, SIP, 1.5:1, 2 W, 1 Output, 3.3 V

TRV 2M series 2W DC/DC medical converter in a compact SIP-9 package with reinforced isolation of 5000VAC for medical and industrial applications. This offers a 1.5:1 input voltage range. With continuous short circuit protection and a low leakage current of less than 2µA, this is especially suited to protect any connected interfaces or applied parts to patients. Featuring almost fully regulated outputs this series provides a great level of regulation without affecting the cost-efficiency. It is an ideal solution for applications where an unregulated DC/DC converter would not meet your regulation requirements but cost still is a critical factor. Together with an operating temperature range from -40 to +80°C without derating and certifications according to IEC/EN/ES60601-1 3rd ed. for 2xMOPP and IEC/EN/UL 62368-1 this series is suitable for many different applications where a medical isolation system and short circuit protection is needed.

• Operation up to 5000m altitude
• Regulated outputs
• Input voltage range from 4.5 to 7VDC, output voltage is 3.3VDC (Vnom), output current (max) is 600mA
• Typical efficiency is 78%
• Natural convection cooling system (20 LFM)
• Switching frequency range from 180KHz to 360KHz (PFM)
• Non-conductive plastic housing/silicone pot material (UL 94 V-0), THD device, PCB mount type
• Tinned copper pin material
• 5-year product warranty
• Approved by EN 62368-1, IEC 62368-1, UL 62368-1, EN 60601-1, IEC 60601-1, ANSI/AAMI ES 60601-1
