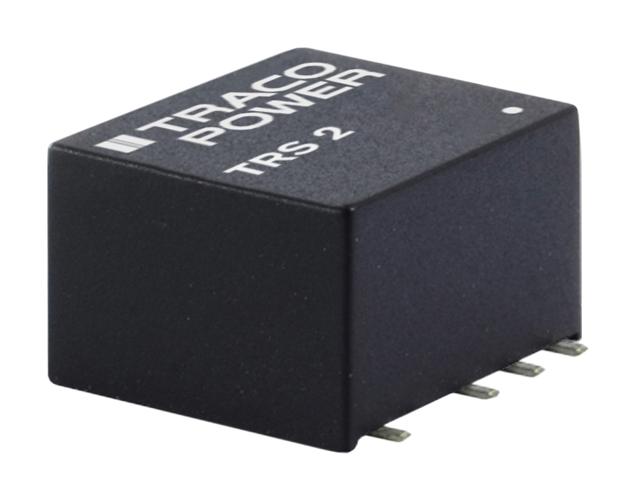

TRACO POWER TRS 2-0919 Isolated Surface Mount DC/DC Converter, ITE, Surface Mount DIP, 2:1, 2 W, 1 Output, 9 V

TRS 2 series is a new series with the design purpose to improve the prevalent 2W SMD DC/DC converters in terms of size, cost, efficiency and performance. The main intended uses for the TRS 2 series are IT applications, industrial control systems and measurement equipment. With the reduction of thermal loss, the operating temperature range can be expanded from -40°C to +90°C. The converters are fully regulated over 0 - 100% load (no minimum load). The low input range is extended from 4.5 to 13.2VDC (to include 12V battery applications) while models are also available with the standard 2:1 input ranges. The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60s) of 1600VDC.

• Most compact 2W SMD DC/DC converter: 11.9mm x 11.3mm x 8mm (0.47 x 0.44 x 0.31inch)
• High efficiency for low thermal loss
• Operating temperature range from -40°C to +90°C
• Designed to meet UL 62368-1
• Protection against continuous, automatic recovery short circuit
• 3-year product warranty
• Designed for EN 62368-1 (no certification)
• Natural convection (20 LFM) cooling
• Switching frequency of 100KHz minimum (PFM)
• Non-conductive plastic (UL94 V-0 rated) housing, copper pin material
