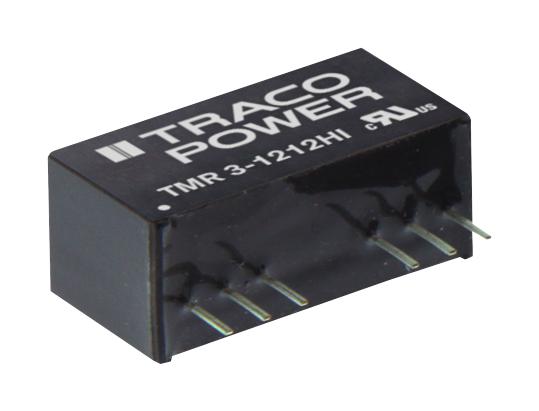

TMR-3HI series is a new family of isolated 3W DC-DC converter module with regulated output. This converter is ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.
- Model with 3000VDC I/O isolation (functional insulation)
- Temperature range -40° to +85°C
- High efficiency
- Short-circuit protection (continuous, automatic recovery)
- Remote on/off control
- 3-year product warranty
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
2:1
|
| Output Power Max:
3W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
5V
|
| Output Current - Output 1:
600mA
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
Regulated
|
| Isolation Voltage:
3kV
|
| DC / DC Converter Type:
SIP
|
| Input Voltage DC Nom:
12V
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
9.2mm
|
| Height:
11.1mm
|
| Depth:
21.8mm
|
| Input Voltage DC Min:
9V
|
| Input Voltage DC Max:
18V
|
| Product Range:
TMR 3HI Series
|
Other details
| Brand |
TRACO POWER |
| Part Number |
TMR 3-1211HI |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
