Description
Product Overview

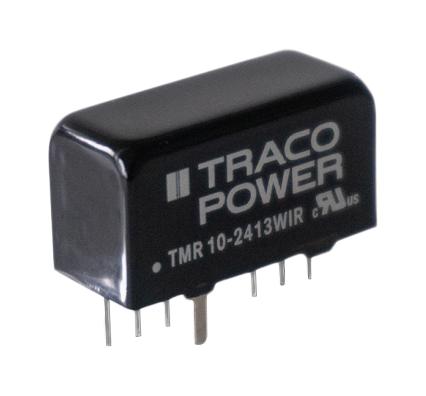

TMR 10-7221WIR is a TMR 10WIR series of ruggedized 10W DC/DC railway converter for highest reliability in harsh environments.
- Wide 4:1 input voltage range from 40 to 160V DC (110V DC nom)
- ±5V DC (nom) dual output voltage, 1000mA (max) output current 1, 1000mA (max) output current 2
- Efficiency is 85% typ
- Protection against overload, and short circuit
- EN 50155 and EN 61373 approval for railway applications
- Qualification for fire behaviour according to EN 45545-2
- 3000V DC I/O-isolation
- Remote on/off function
- Compact SIP-8 metal case
- Operating temperature range from -40 to +75°C without derating and 3 years warranty
Product details
Other details
| Brand | TRACO POWER |
| Part Number | TMR 10-7221WIR |
| Quantity | Each |
| Technical Data Sheet EN |  |
