Description
Product Overview

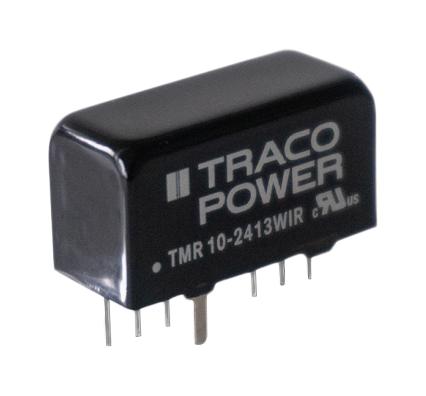

TMR 10-7210WIR is a TMR 10WIR series of ruggedized 10W DC/DC railway converter for highest reliability in harsh environments.
- Wide 4:1 input voltage range from 40 to 160V DC (110V DC nom)
- Single output voltage is 3.3V DC (nom) and output current is 2500mA (max)
- Efficiency is 86% typ
- Protection against overload, and short circuit
- EN 50155 and EN 61373 approval for railway applications
- Qualification for fire behaviour according to EN 45545-2
- 3000V DC I/O-isolation
- Remote on/off function
- Compact SIP-8 metal case
- Operating temperature range from -40 to +75°C without derating and 3 years warranty
Product details
Other details
| Brand | TRACO POWER |
| Part Number | TMR 10-7210WIR |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4445.16 |
| 3-5 | ₹ 4399.8 |
| 5-10 | ₹ 4309.09 |
| 10+ | ₹ 4218.37 |
Bulk discount will be automatically applied during checkout based on quantity.
