Description

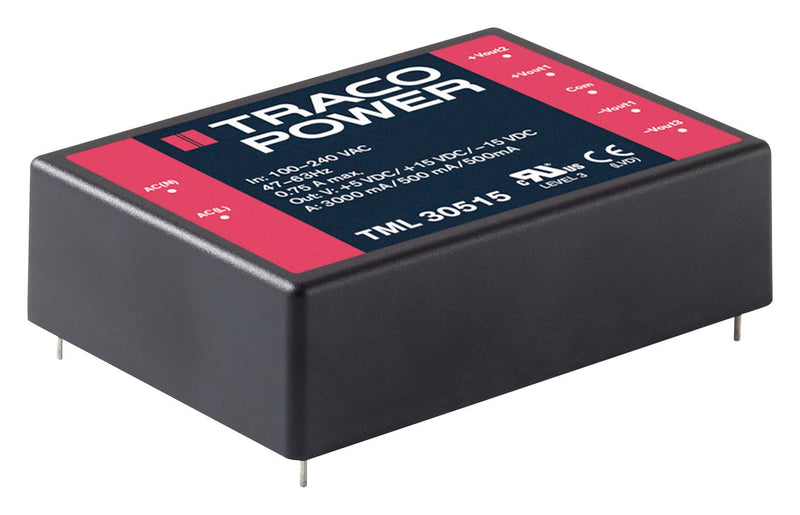

The TML series from Tracopower are ultra compact AC/DC power supplies in a fully encapsulated plastic case with increased power density. TML series are available in 20W and 40W output powers. These power supplies features solder pins for direct PCB mounting and screw terminals for easy installation. TML series AC/DC modules are used in commercial and industrial electronic equipments where compactness is of major concern.
- Available in single, dual and triple outputs
- 100KHz (TML 20) and 132KHz (TML 40) switching frequencies
- Short circuit and overload protection
- PCB mount or chassis mount with screw terminals
- AC input voltage range from 90VAC to 264VAC
- DC input voltage range from100VDC to 375VDC
- Input frequency range from 47Hz to 440Hz
- Operating temperature range from -25°C to 60°C (TML 20 models) and -40°C to 60°C (TML 40 models)
- class I (TML 20 models) and class II to IEC/EN 60536 (TLM 40 models) safety approved
- 75% to 84% efficiency depending on model
Applications
Power Management, Industrial
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 2 Output |
| Output Power Max: 20W |
| Output Voltage - Output 1: 5VDC |
| Output Current - Output 1: 2A |
| Output Voltage - Output 2: -5VDC |
| Output Current - Output 2: 2A |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Power Supply Output Type: Adjustable, Fixed |
| Input Voltage VAC: 90V AC to 264V AC |
| Width: 48mm |
| Height: 22mm |
| Depth: 70mm |
| Product Range: TML Series |
Other details
| Brand | TRACO POWER |
| Part Number | TML 20205 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7000.93 |
| 3-5 | ₹ 6929.5 |
| 5-10 | ₹ 6786.62 |
| 10+ | ₹ 6643.74 |
Bulk discount will be automatically applied during checkout based on quantity.
