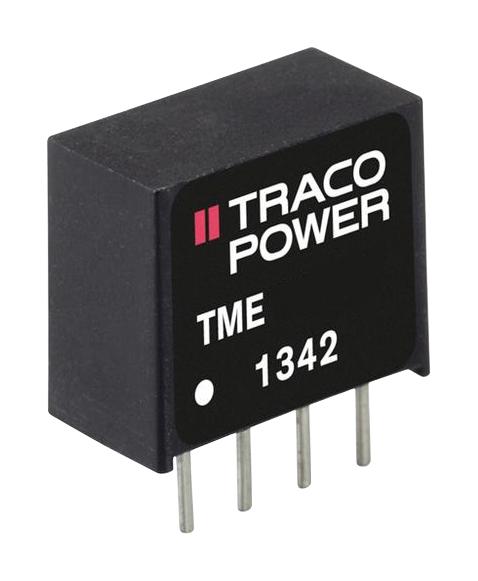

TME series is a range of sub-miniature, isolated DC/DC-converters in a SIP package, which requires only 0.7cm² of board space. They provide a cost effective solution to generate supplementary, isolated voltages. Full SMD-design and a 100% production test of parameters ensure a high reliability of this product.
- I/O isolation voltage of 1000VDC
- Unregulated device
- High efficiency
- Operating temperature range from -40°C to +85°C
- Industry standard pinout
- 100% burn-in (8h)
- 3-year product warranty
- Non conductive black plastic (UL 94-V0 rated) casing
- Switching frequency of 50KHz to 110KHz (frequency modulation)
- Ripple and noise (20MHz bandwidth) of 150mVp-p maximum
Product details
| Power Supply Applications:
-
|
| Input Ratio:
1:1
|
| Output Power Max:
1W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
3.3V
|
| Output Current - Output 1:
260mA
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
Unregulated
|
| Isolation Voltage:
1kV
|
| DC / DC Converter Type:
SIP
|
| Input Voltage DC Nom:
5V
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
6.1mm
|
| Height:
10.2mm
|
| Depth:
11.5mm
|
| Input Voltage DC Min:
4.5V
|
| Input Voltage DC Max:
5.5V
|
| Product Range:
TME Series
|
Other details
| Brand |
TRACO POWER |
| Part Number |
TME 0503S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
