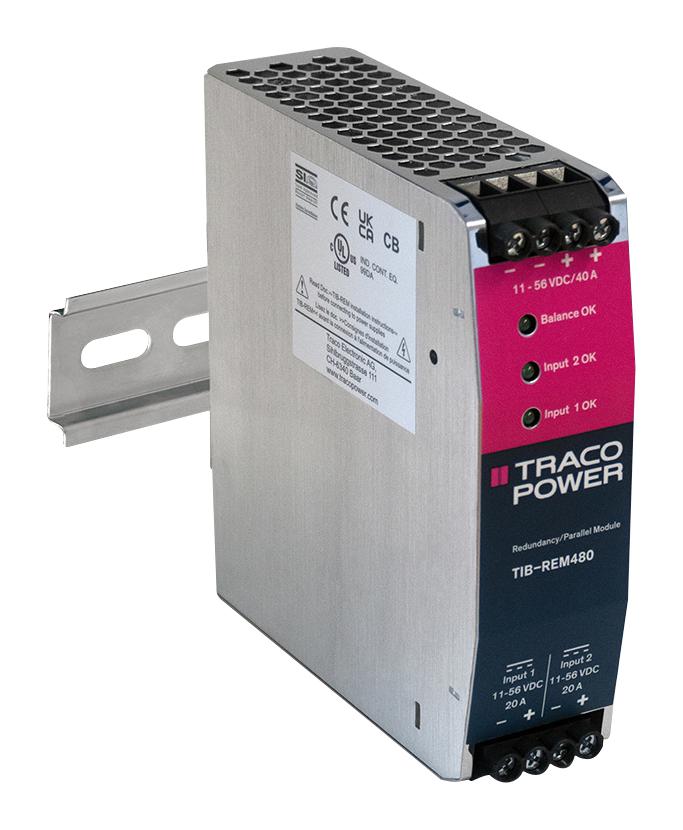

TRACO POWER TIB-REM480 Redundancy Module, AC/DC Power Supply, 11 to 56VDC, 60A Current Boost, DIN-Rail

TIB-REM480 is a TIB-REM series compact, DIN-rail mountable redundancy module for failover operation of AC/DC power supplies. The redundancy function is available for nominal currents of up to 20A over a wide input voltage range of 11 to 56V. Boost currents of up to 60A are permitted for up to 4 seconds. It uses active sharing technology to minimize the power losses during normal operation and in failover mode. It can operate at ambient temperatures between -20°C and +60°C without derating and without the need for active cooling. It is specifically designed, tested, and approved for operation with traco power�s TIB line of DIN-rail mountable power supplies.

• Input voltage range from 11 to 56VDC, operating temperature range from -20°C to +70°C
• 20A output current redundancy operation, short circuit protection
• 40A output current parallel operation, 95% maximum relative humidity
• DIN-rail mounting bracket, metal case housing type
• 60A boost current, screw terminal connection type
• <gt/>99% efficiency, low standby power
• Input OK indicators, Balance OK indicators
• Convection cooled, UL/IEC/EN 61010-1 approvals
• Compact 118.6mm x 36mm x 124.2mm metal enclosure
• EN 61010-1, IEC 61010-1, UL 61010-1 safety standards
