Description
Product Overview

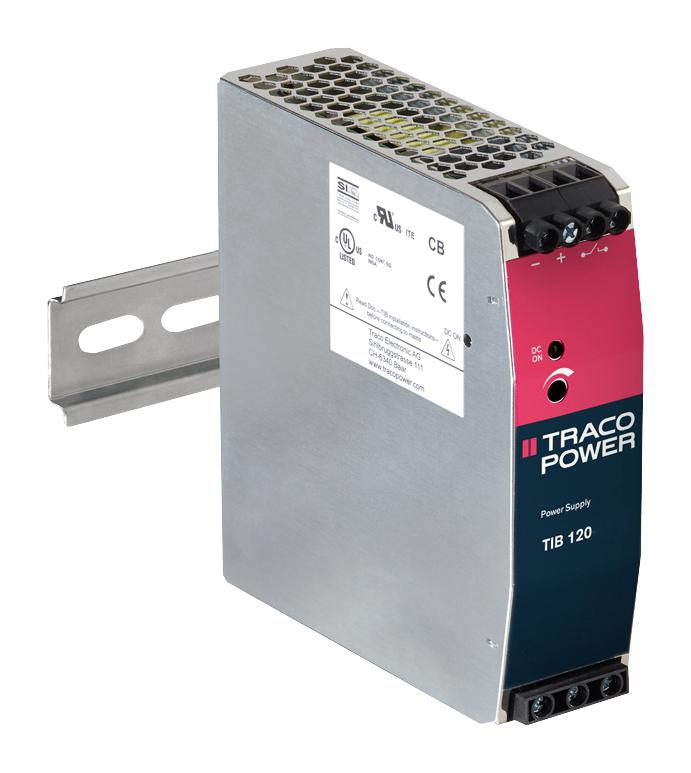

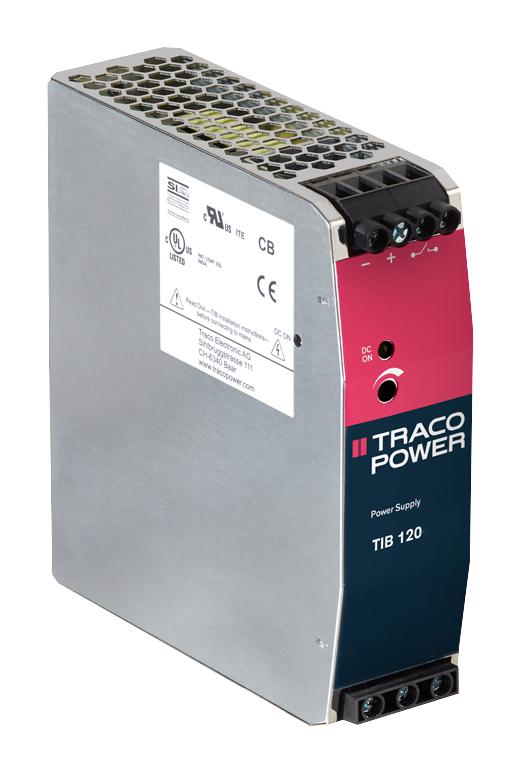

TIB 120-148 is an AC/DC industrial power supply combines the most efficient circuit topology with optimized cost/performance ratio for industrial environments and for electrical control cabinets. They have a very high efficiency of up to 94.0% which allows a very slim package design. The output voltage is adjustable from �2% to +17%. The case offers the potentially useful feature to fix the DIN-rail clip to the side wall for the mounting inside flat panels. Over a period of minimum 4 seconds they can operate with a boost power of 150%. The boost power facilitates the activation of stepper motors, solenoids or actuators. It comes with the safety standard approvals for IEC/EN 60950-1, UL 60950-1 and UL 508.
- Slim profile, for DIN-rail mounting
- Input voltage range from 85 to 264VAC (full range), output voltage 48VDC (47.0 to 56.0VDC)
- 120W output power
- 2500mA output current
- Very high efficiency up to 94%
- High power factor by active power correction
- Back power immunity
- Operating temperature range from �40°C to +70°C max
- Short circuit and overload protection
Product details
Other details
| Brand | TRACO POWER |
| Part Number | TIB 120-148 |
| Quantity | Each |
| Technical Data Sheet EN |  |
