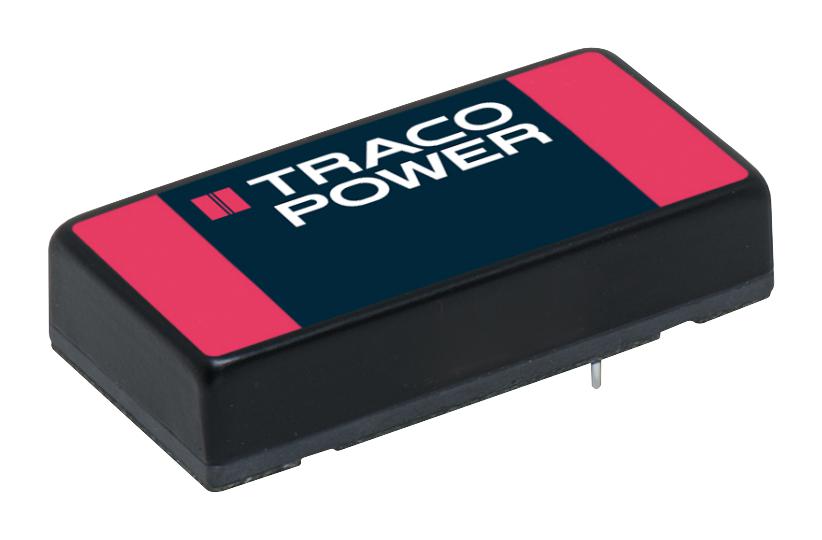

- THR 20WI series 20W DC/DC converter in 2"x1" package
- Reinforced I/O-isolation 3000VAC
- Increased resistance against shock and vibration according to EN 61373
- Wide 4:1 input voltage range
- Operating temperature range -40 to +85?C
- Internal EN 55032 class A filter
- Protection against overload, overvoltage and short circuit
- 3-year product warranty
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
4:1
|
| Output Power Max:
20W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
5V
|
| Output Current - Output 1:
4A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
Regulated
|
| Isolation Voltage:
3kV
|
| DC / DC Converter Type:
DIP
|
| Input Voltage DC Nom:
24V
|
| DC / DC Converter Output Type:
Fixed, Adjustable
|
| Width:
25.4mm
|
| Height:
11mm
|
| Depth:
50.8mm
|
| Input Voltage DC Min:
9V
|
| Input Voltage DC Max:
36V
|
| Product Range:
THR 20WI Series
|
Other details
| Brand |
TRACO POWER |
| Part Number |
THR 20-2411WI |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
