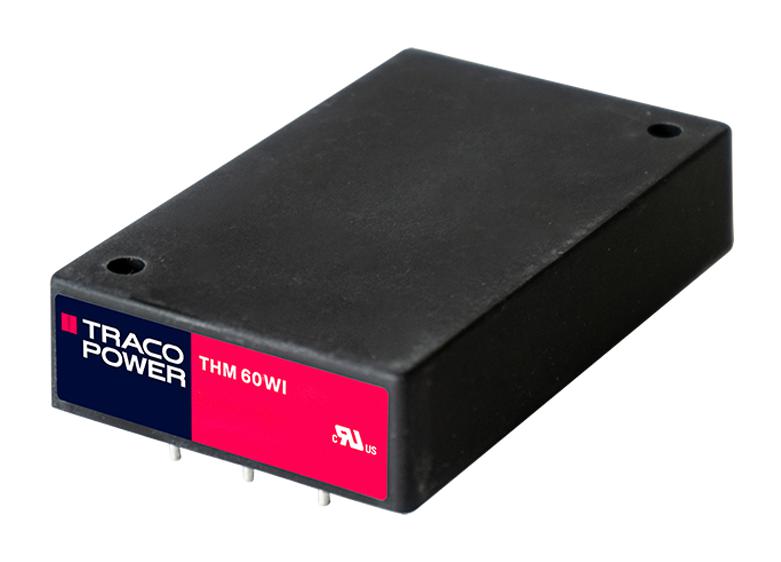

TRACO POWER THM 60-4811WI Isolated Through Hole DC/DC Converter, Medical, DIP, 4:1, 60 W, 1 Output, 5.1 VDC

THM 60WI series is a range of medical 60W DC/DC converters in a compact 2.3� x 1.45� plastic package and with wide 4:1 input voltage range. They provide a reinforced isolation system (5000VAC) and a very low leakage current of less than 4.5?A. With a high efficiency and highest-grade components the converters can reliably operate in an ambient temperature range of -40°C up to +75°C with derating. For more demanding applications regarding temperature, Traco also offers a special heatsink which will greatly increase the thermal capabilities for natural convection conditions. The units are approved according to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP as well as IEC/EN/UL 62368-1 and come along with an ISO 14971 risk management file. Design and production conform to the quality management system ISO 13485. The THM 60WI constitutes a reliable solution not only for medical equipment but also for demanding ranges of application such as control & measurement and transportation.

• I/O isolation 5000VAC rated for 250VAC working voltage
• Certification according to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP
• Risk management process according to ISO 14971
• Acceptance criteria for electronic assemblies acc. to IPC-A-610 level 3
• Operating temperature range from -40 to +75°C
• Complies with EN 62368-1, IEC 62368-1, UL 62368-1, EN 60601-1, IEC 60601-1, ANSI/AAMI ES 60601-1
• Operating up to 5000m altitude, continuous automatic recovery short circuit protection
• 5 year product warranty
• Switching frequency of 225 to 275KHz (250KHz typ)
• Non-conductive plastic (UL 94 V-0 rated) housing and base material
