Description

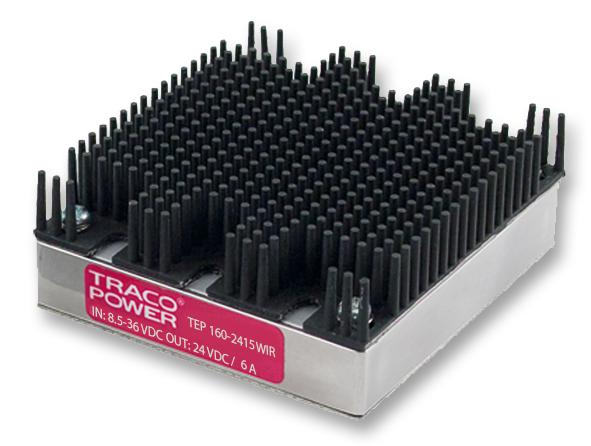

The TEP 160-2415WIR is a 1-output 160W chassis-mount isolated high performance DC/DC Converter Module allows full power operation without forced air cooling at 25°C this temperature can be increased to 40°C with optional mounted heatsink or up to 60°C when mounted on an iron base plate. The very wide input voltage range and reverse input voltage protection make this converter interesting solution for battery operated systems.
- Soft start
- Sense line
- Remote ON/OFF input
- Meets EN50155 standards
- Adjustable output voltage
- Undervoltage lockout circuit
- Reverse input voltage protection
- Over-temperature protection
- Ultra wide 4:1 input voltage range
- 91% Typical efficiency
- 24VDC Nominal input voltage
Power Management, Automation & Process Control, Communications & Networking, Industrial
Other details
| Brand | TRACO POWER |
| Part Number | TEP 160-2415WIR |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| CAD Multiple Formats EN | |
| Application Note EN | |
