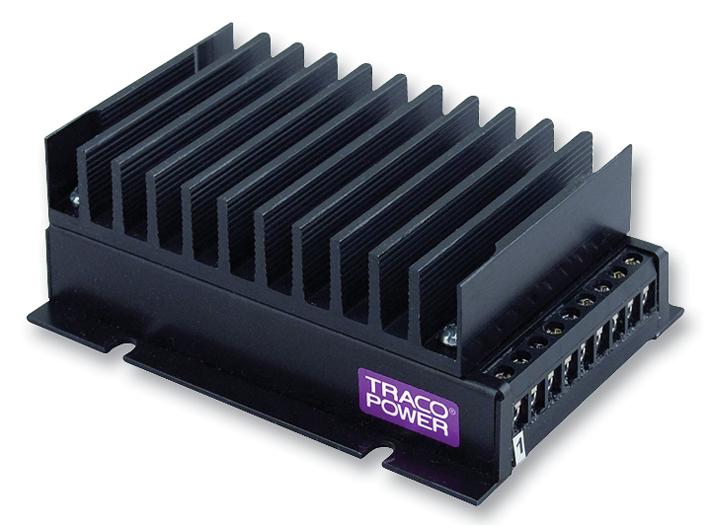

Traco Power TEP 150-4815WI TEP 150-4815WI Isolated Chassis Mount DC/DC Converter Railway 4:1 150 W 1 Output 24 V 6.3 A

The TEP 150WI series isolated DC/DC Converter Module features a wide input range, adjustable output voltage and constant current mode output limit. The modules have originally been designed for harsh industrial environment. High EMC immunity against surge, burst, radiated and conducted disturbances and the shock/vibration and thermal shock resistance make them very popular for stringent requirements. At 100% load the current characteristics goes from constant voltage to constant current what makes the units also suitable for battery charger applications. With protection against over-temperature, overload, short-circuit, reverse input, over-voltage and input undervoltage lockout they are hard to destroy.

• Under-voltage lockout
• Input reverse protection
• Adjustable output voltage
• Reverse input protection
• Over-temperature protection
• Easy chassis and wall mounting
• Input to output basic Insulation
• Constant current output characteristic
• Shielded metal case with screw terminals
• Optional with input filter to meet EN55022 class B

• 87% typical Efficiency
• 48VDC Nominal input voltage

Applications

Wireless, Power Management, Communications & Networking, Automation & Process Control

Other details

Brand	TRACO POWER
Part Number	TEP 150-4815WI
Quantity	Each
Technical Data Sheet EN
Application Note EN
CAD Multiple Formats EN
Miscellaneous EN
