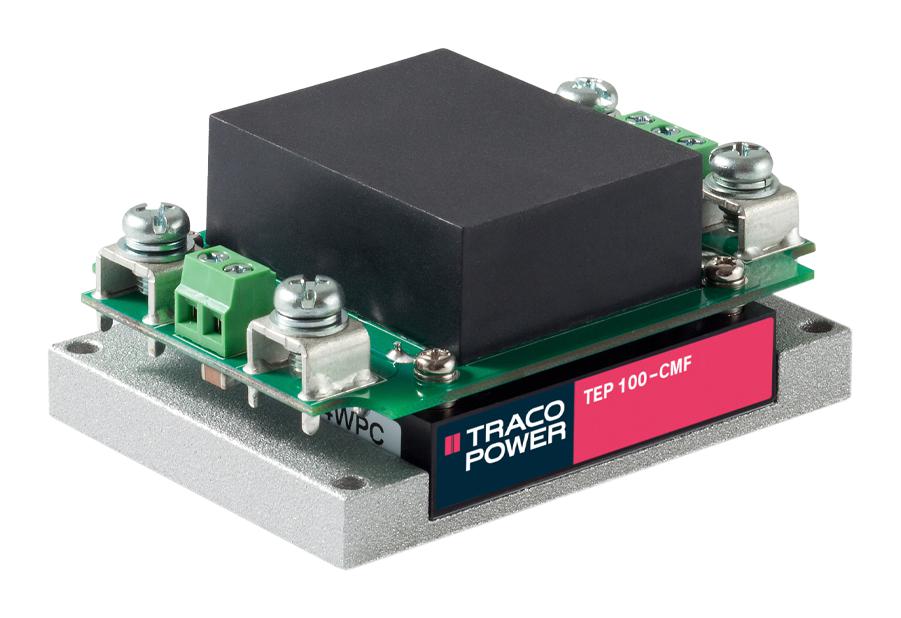

TEP 100CMF series is a family of isolated high performance DC/DC converter modules. These converters are suitable for a wide range of applications, but the product is designed particularly also for industrial applications where often no PCB mounting is possible but the module has to be mounted on a chassis. Four threaded M3 inserts in the module makes chassis mount or attachment of a heatsink for optimal thermal management very simple. For easy connection there is also an unique adaptor available with screw terminals. A very high efficiency allows an operating temperature up to +60°C with natural convection cooling without power derating. Further features include output voltage trimming, remote on/off and undervoltage lockout. The very wide input voltage range and reverse input voltage protection make these converters also an interesting solution for battery operated systems.
- Ultra wide 2:1 input voltage range
- Input protection filter
- 3-year product warranty
- Continuous, automatic recovery short circuit protection
- EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safety standards
- Switching frequency of 270 to 330KHz (PWM), 300KHz typically (PWM)
- Rugged sealed metal case and non-conductive FR4 (UL94 V-0 rated) base material
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
2:1
|
| Output Power Max:
100W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
12V
|
| Output Current - Output 1:
8.4A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
-
|
| Isolation Voltage:
2.25kV
|
| DC / DC Converter Type:
Module
|
| Input Voltage DC Nom:
24V
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
61mm
|
| Height:
40.5mm
|
| Depth:
85mm
|
| Input Voltage DC Min:
18V
|
| Input Voltage DC Max:
36V
|
| Product Range:
TEP 100CMF Series
|
Other details
| Brand |
TRACO POWER |
| Part Number |
TEP 100-2412-CMF |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
