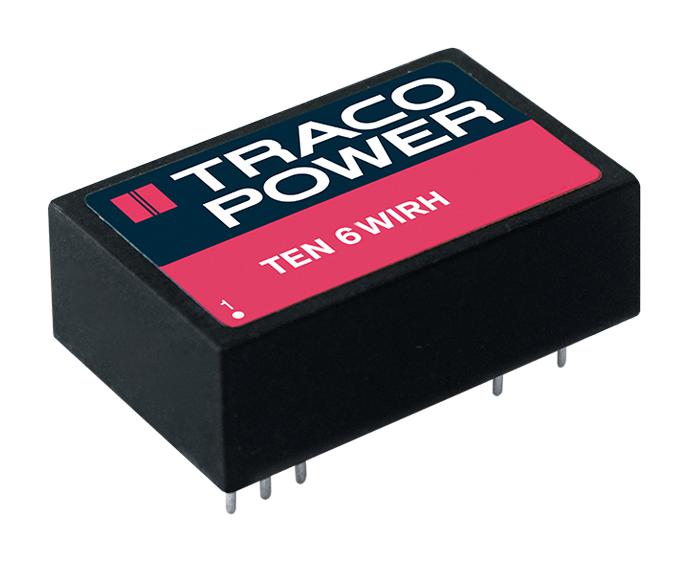

TRACO POWER TEN 6-11013WIRH Isolated Through Hole DC/DC Converter, ITE & Railway, DIP, 4:1, 6 W, 1 Output, 15 V

TEN 6WIRH is a series of 6W railway-certified DC/DC converters with reinforced I/O isolation for highest reliability in harsh environments. The proven and certified design guarantees highest resistance against thermal shocks, moisture, mechanical shocks and vibration. The TEN 6WIRH comes with additional EN 62368-1 safety approvals for IT equipment and EN 45545-2 certification for fire behaviour. Thanks to its favourable operating temperature range of -40°C to +85°C without derating (depending on the model), the TEN 6WIRH presents a first choice for demanding applications. It features undervoltage lockout (UVLO), short-circuit protection (SCP), overtemperature protection (OTP) and overvoltage protection (OVP). Housing material is non-conductive plastic (UL 94 V-0 rated), base material is non-conductive plastic (UL 94 V-0 rated) and potting material is silicone (UL 94 V-0 rated).

• Fully encapsulated DIP-24 package
• 3000VAC I/O isolation (reinforced)
• 4:1 input voltage range: 36 to 160VDC
• EN 50155 (railway application) and EN 61373 certified
• Internal class A EMI filter
• Remote on/off function
• 3-year product warranty
• EN 62368-1, IEC 62368-1, UL 62368-1 safety standards
• Pollution degree PD 2 and overvoltage category OVC II
• Switching frequency of 270 to 330KHz (PWM) (300KHz typ (PWM))
